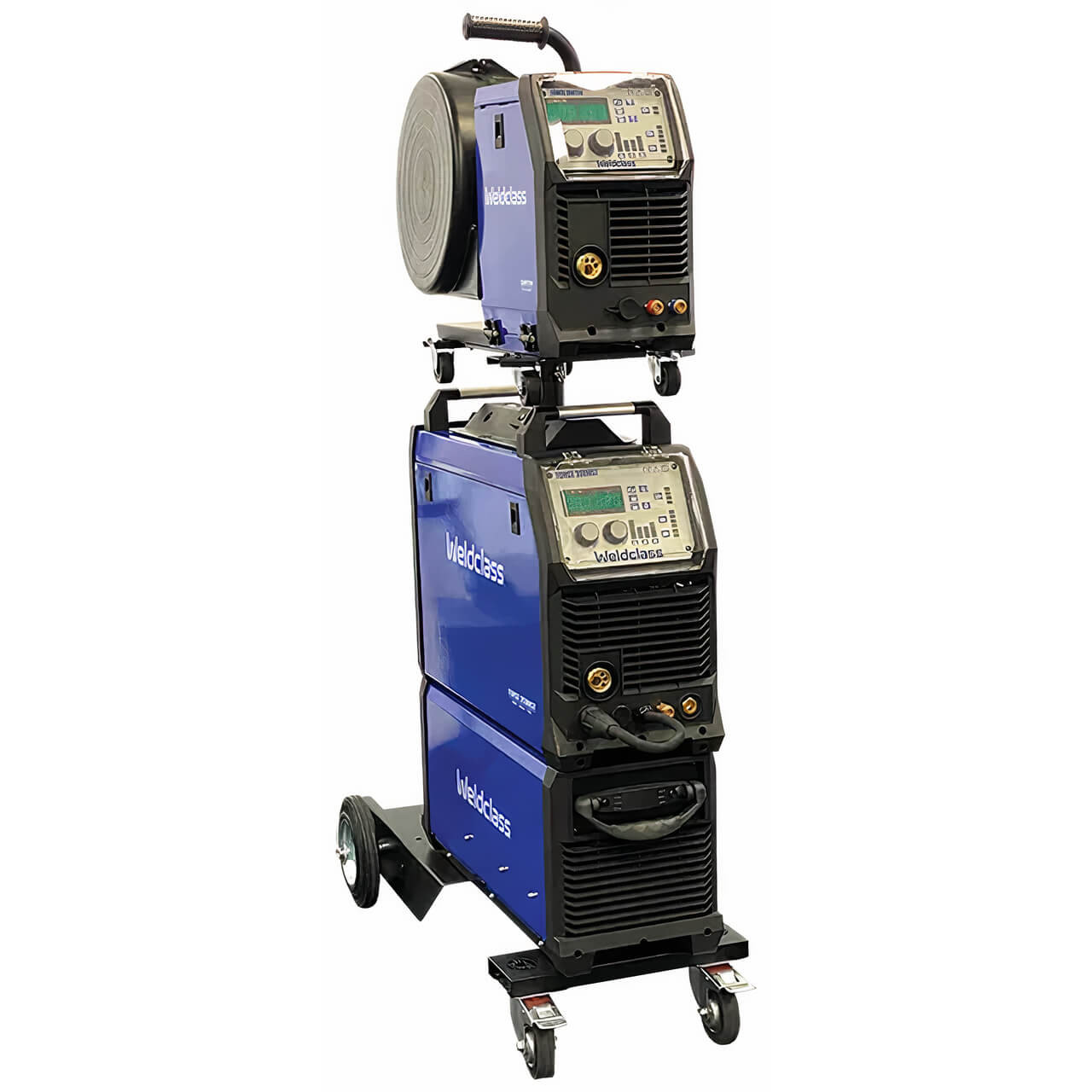

The Force 350MST* offers 3-phase power with easy-to-use controls and flexible package options. The power source has it's own wire feed system to allow use as: a) a stand-alone compact / portable machine, or b) together with the SWF114 separate wire feeder unit, which can be included with initial purchase or as an add-on later if/when required. With an output of 350A @ 60%, there's plenty of grunt to tackle production jobs with wires up to 1.2mm. Features include: Straightforward controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more.
FEATURES:
- Dual-Purpose Power Source Technology allows the 290MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit
- Max MIG output 290A @ 55% duty cycle
- Dual Input Modes to allow use with either 240V 15A plug (fitted) or 240V 32A plug (optional)**
- Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
- Job Save - store custom settings for up to 20 jobs
- Geared 4-Roll Wire Drive System - for super reliable wire feeding
- Takes 5kg (D200mm) or 15kg (D300mm)spools
- Spool Gun Ready
- Generator Compatible - min 15kva, ideal 20+kva
- MIG functions &; adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
- Stick/MMA functions &; adjustments include: Hot-Start %, Arc-Force %
- TIG functions &; adjustments include: Trigger &; Remote Amperage Control on the the torch, Post-Gas Time, Slope-Up Time
