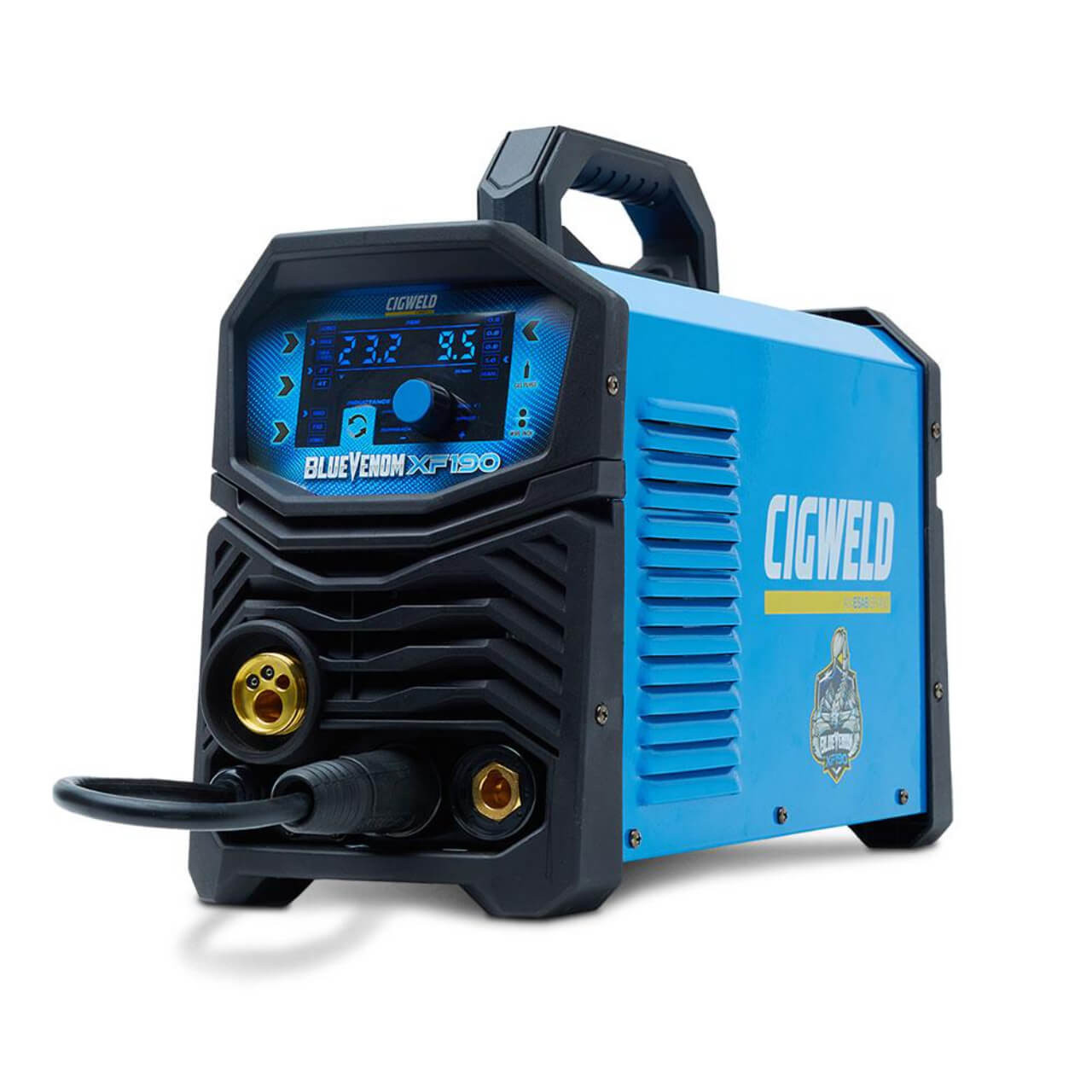

The BlueVENOM XF190 is the perfect solution for light fabrication, maintenance and repairs or for DIY around the home, workshop, worksite or farm without compromising on quality, safety and performance! With the avid welder in mind, CIGWELD have introduced "Opti-Start", a feature that allows the user to customise theor starting arc characteristics through soft and hard start controls.
FEATURES:
- 2 x Roll All-Driven (Top & Bottom) Wire Device System
- MIG Adjustable Wire Burnback & Inductance
- MIG Adjustable Soft & Hard start (Opti-Start)
- MIG Wire Inch Button
- MIG Gas Purge Button
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature
- MIG Spool Gun Compatible
- STICK with voltage Reduction Device (VRD) Built-in for Safe Welding
- STICK adjustable Hot Start
- STICK adjustable Arc Force
- STICK Anti-Stick
- Thermal Overload Protection
- TIG Foot Control Compatible
- TIG Dial Remote Torch Compatible
SPECIFICATIONS:
- Power Supply (Voltage: Single-Phase 230V/240V +/- 15%
- Australian Standard: AS60974.1:2020
- Nominal Supply Frequency: 50/60Hz
- Supply Lead and Plug supplied: 10 Amp
- Minimum Single Phase Generator Recommendation: 10kVA (at 0.8 Power factor) at Max Amps
- Aperage Range (MIG): 30-190A
- Voltage Range (MIG): 15.5 - 26.0V
- MIG (HMAW) Duty Cycle at 40ºC, 10 minutes:
- 185 Amps at 9%
- 72 Amps at 60%
- 56 Amps at 100%
- STICK(MMAW) Duty Cycle at 40ºC, 10 minutes:
- 160 Amps at 10%
- 50 Amps at 60%
- 50 Amps at 100%
- TIG (GTAW) Duty Cycle at 40ºC, 10 minutes:
- 190 Amps at 10%
- 77 Amps at 60%
- 60 Amps at 100%
- Nominal DC Open Circuit Voltage in MIG Mode: 52V
- Open Circut Voltage (VRD On) STICK mode: <;35V
- Weight of Power Source: 9.5kg
- Power Source Dimentions (mm)(L x W x H): 465 x 190 x 340mm
- Protection Class: IP 21S
- Weight of full package: 16.6kg
INCLUDES:
- BlueVENOM XF190 Power Source
- CMGBZ15E3 MIG Gun 3m-Euro quick Connector
- Work Clamp with 3m Lead
- 2x Feed Rolls: 0.8/0.9mm Gasless, 0.8/0.9mm Solid Wires (Fitted)
- 2m Argon Gas Hose and Gas Regulator
- Includes Nylon Inlet Guide for use on Soft Alloy Wires
- Operating Manual
| Minimum Sale Qty: | 1 |
| In Stock: | No |
