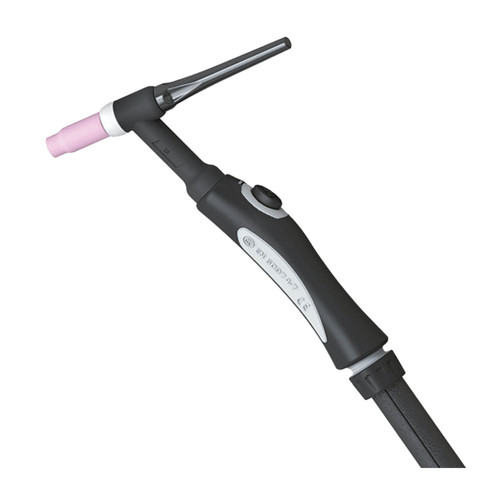

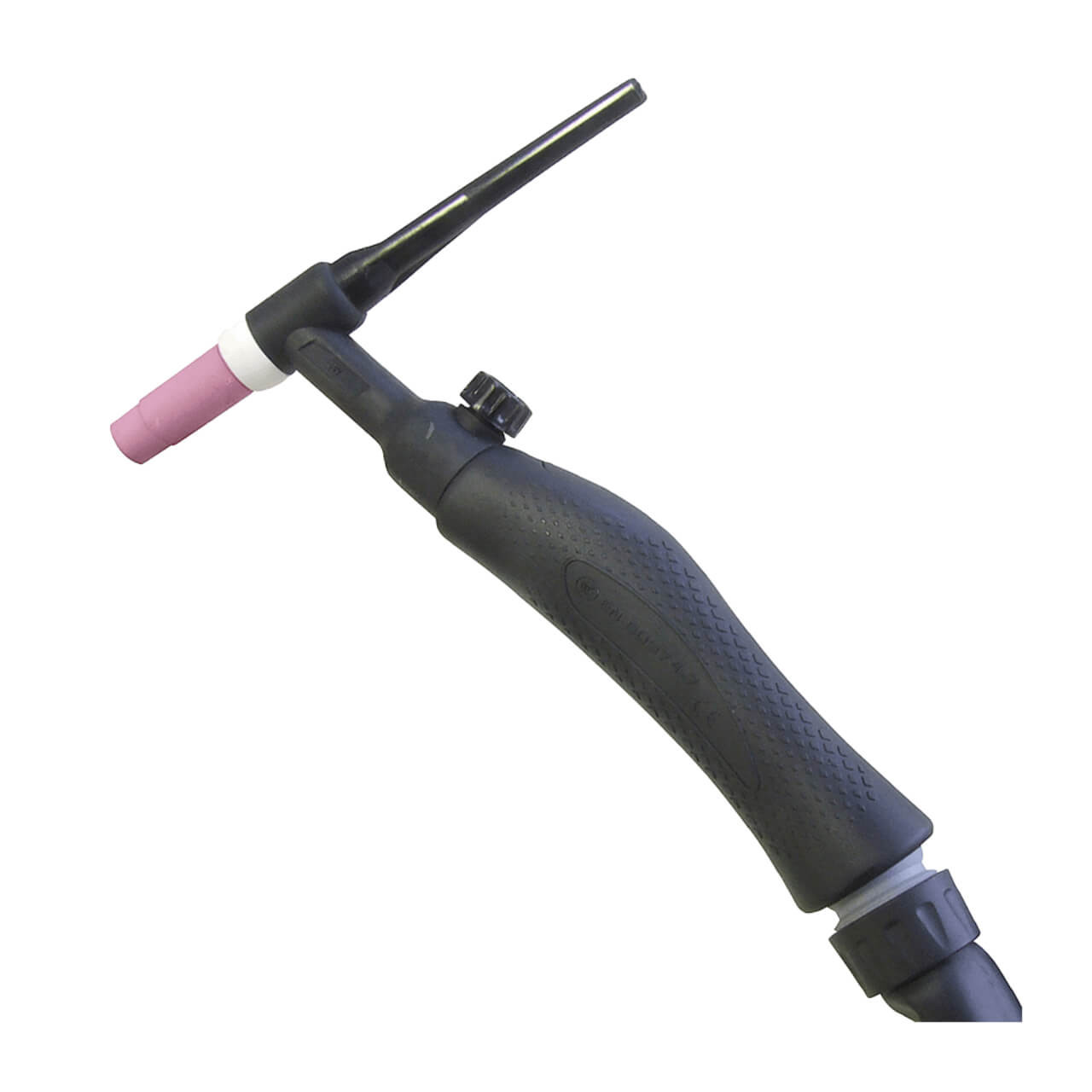

The 26V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips and knuckle joints. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 180A MAXIMUM OUTPUT.
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE.
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE-DC: 35% @ 180A
- DUTY CYCLE-AC: 35% @ 125A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 180A MAXIMUM OUTPUT.
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE.
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE-DC: 35% @ 180A
- DUTY CYCLE-AC: 35% @ 125A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
Custom Field
Brand Unimig
Price Always false
Estimated Lead Time 5-8 days
Inner Qty 1
On Sale Item false
Shipping Class NON DG
Weight (Kgs) 2.9
Wire Item false
ns_id 9961
item_type _inventoryItem
Sales Unit EA
Minimum Sale Qty 1
UNSPSC Code 23271700
