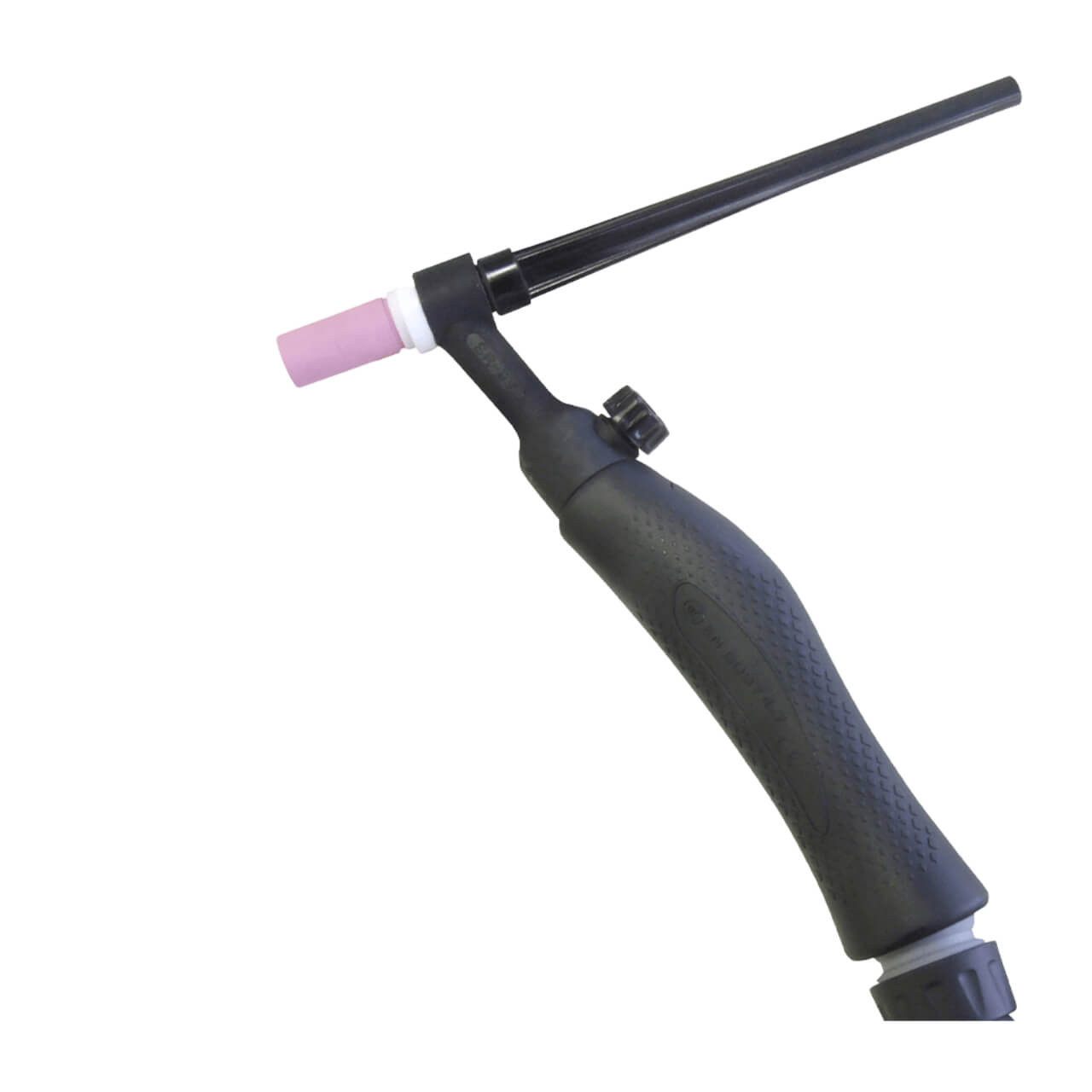

The 17V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips and knuckle joints. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.
- 1.0-3.2mm ELECTRODE SIZE COMPATIBILITY
- 150A MAXIMUM OUTPUT
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE - DC: 35% @ 150A
- DUTY CYCLE - AC: 35% @ 105A
- LENGTH (m): 4
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-3.2mm
- STANDARD: EN60974-7
- 1.0-3.2mm ELECTRODE SIZE COMPATIBILITY
- 150A MAXIMUM OUTPUT
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE - DC: 35% @ 150A
- DUTY CYCLE - AC: 35% @ 105A
- LENGTH (m): 4
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-3.2mm
- STANDARD: EN60974-7
Custom Field
Inner Qty 1
Sales Unit EA
Wire Item false
Estimated Lead Time 5-8 days
Brand Unimig
On Sale Item false
Price Always false
ns_id 10294
item_type _inventoryItem
Shipping Class NON DG
Weight (Kgs) 2.01
Minimum Sale Qty 1
UNSPSC Code 23271700
