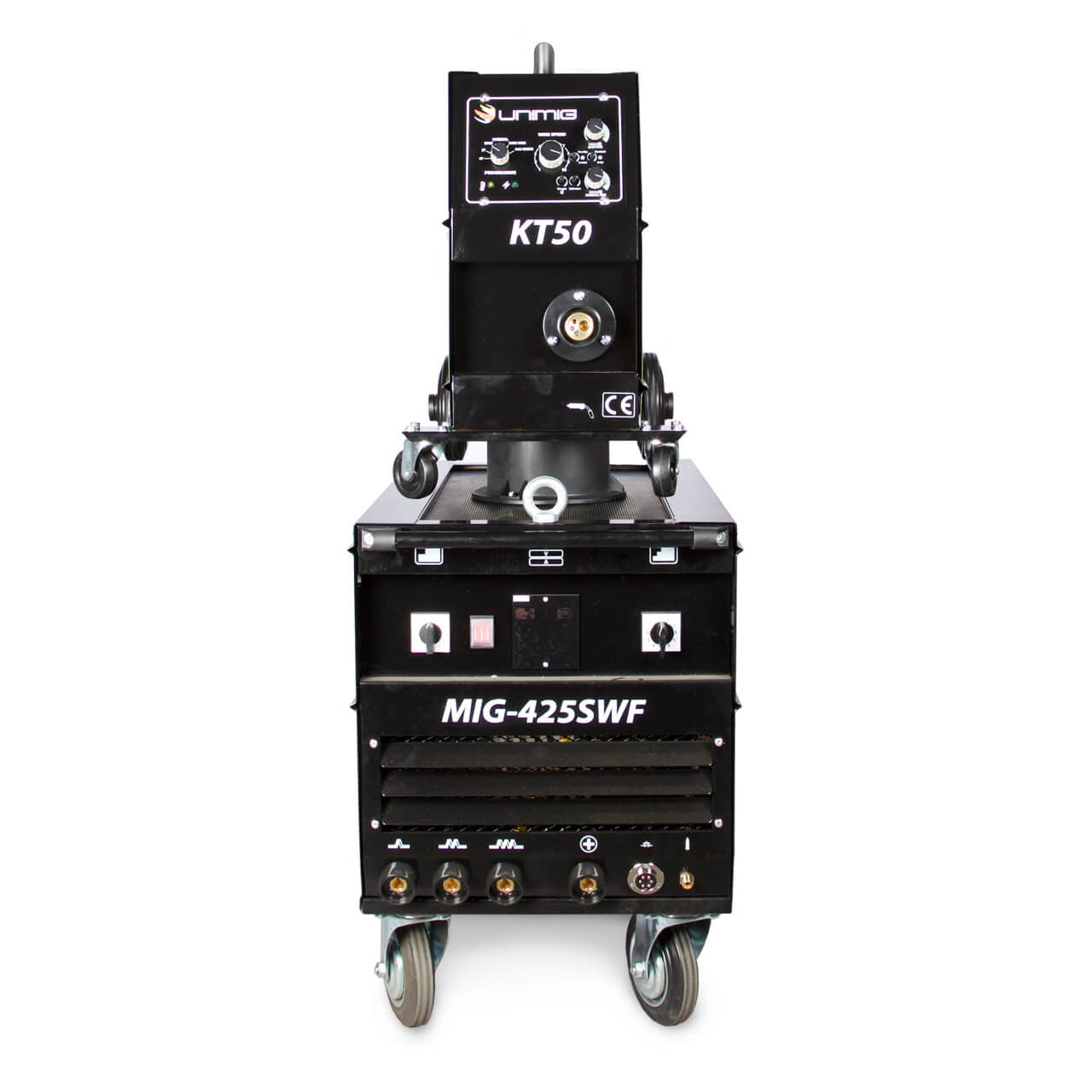

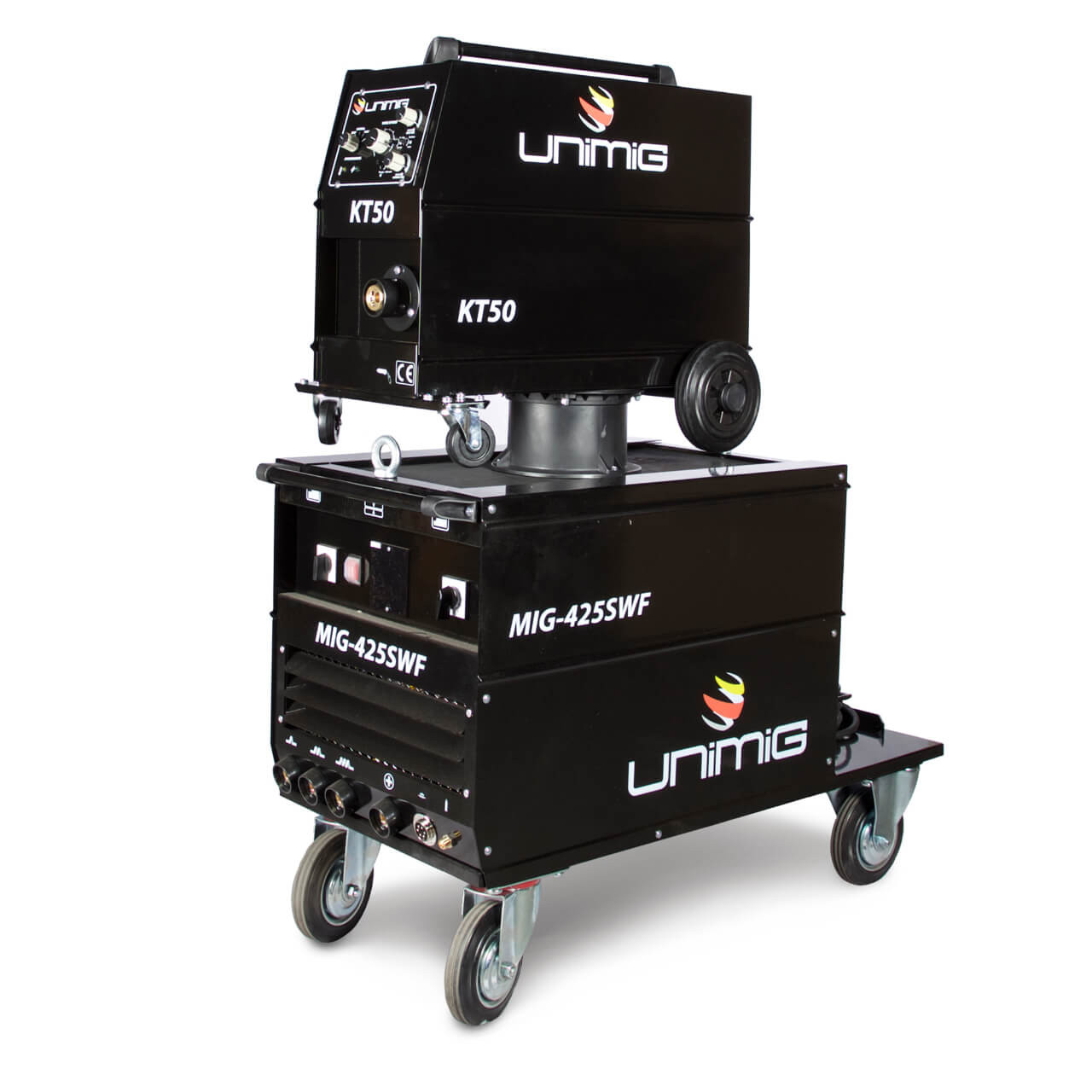

Unimig Workshop 425 SWF Mig Welder 415V (No Primary Plug Fitted)

The WORKSHOP 425 SWF MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 30 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability. Go to greater heights with the addition of the KT50 Separate Wire Feeder feed unit which covers you an extra 10 metres, giving you increased manoeuvrability. It also prevents dust and moisture fouling you wire with its smart enclosed system design meaning no contaminates in your welds.

FEATURES:
- THREE PHASE: 415V POWER
- 30 VOLTAGE STEPS: EXTRA PRECISE WELDING PARAMETERS
- 4 GEARED WIRE DRIVE: FOR SMOOTHER WIRE FEEDING.
- SEPARATE WIRE FEEDER: ADDS UP TO 10M OF EXTRA MANOEUVRABILITY.

PACKAGE CONTENTS:
- WORKSHOP 390 SWF MIG Welder
- KT50 SWF Unit
- 10m interconnecting cables
- 4m SB36 MIG Torch
- 400 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual

MACHINE SPECIFICATIONS:
- PRIMARY INPUT VOLTAGE: 415V Three Phase
- SUPPLY PLUG: No plug supplied (32 AMP Recommended)
- RATED INPUT POWER (kVA): 20.0
- RATED OUTPUT: 30 Voltage Steps, 16-32.5V
- PROTECTION CLASS: IP21
- INSULATION CLASS: I
- MINIMUM GENERATOR (kVA): 24.0
- DINSE CONNECTOR: 35/50
- STANDARD: AS/NZ60974-1
- SUITABLE MATERIAL: Mild Steel, Aluminium, Stainless Steel
- WARRANTY (Years): 3

SPECIFICATIONS:
- MIG WELDING CURRENT RANGE: 40-400 AMPS
- MIG DUTY CYCLE @ 40°C: 60% @ 400A
- MIG WIRE SIZE RANGE: 0.6-1.2mm
- MIG WIRE SPOOL SIZE: 5kg/15kg
- MIG WELDING THICKNESS RANGE: 2-30mm
- DRIVE ROLLER SIZE: 40/32 (x2)

MACHINE FEATURES:
-WIRE DRIVE: Four Geared
- THERMAL OVERLOAD PROTECTION: Over Temperature Warning
