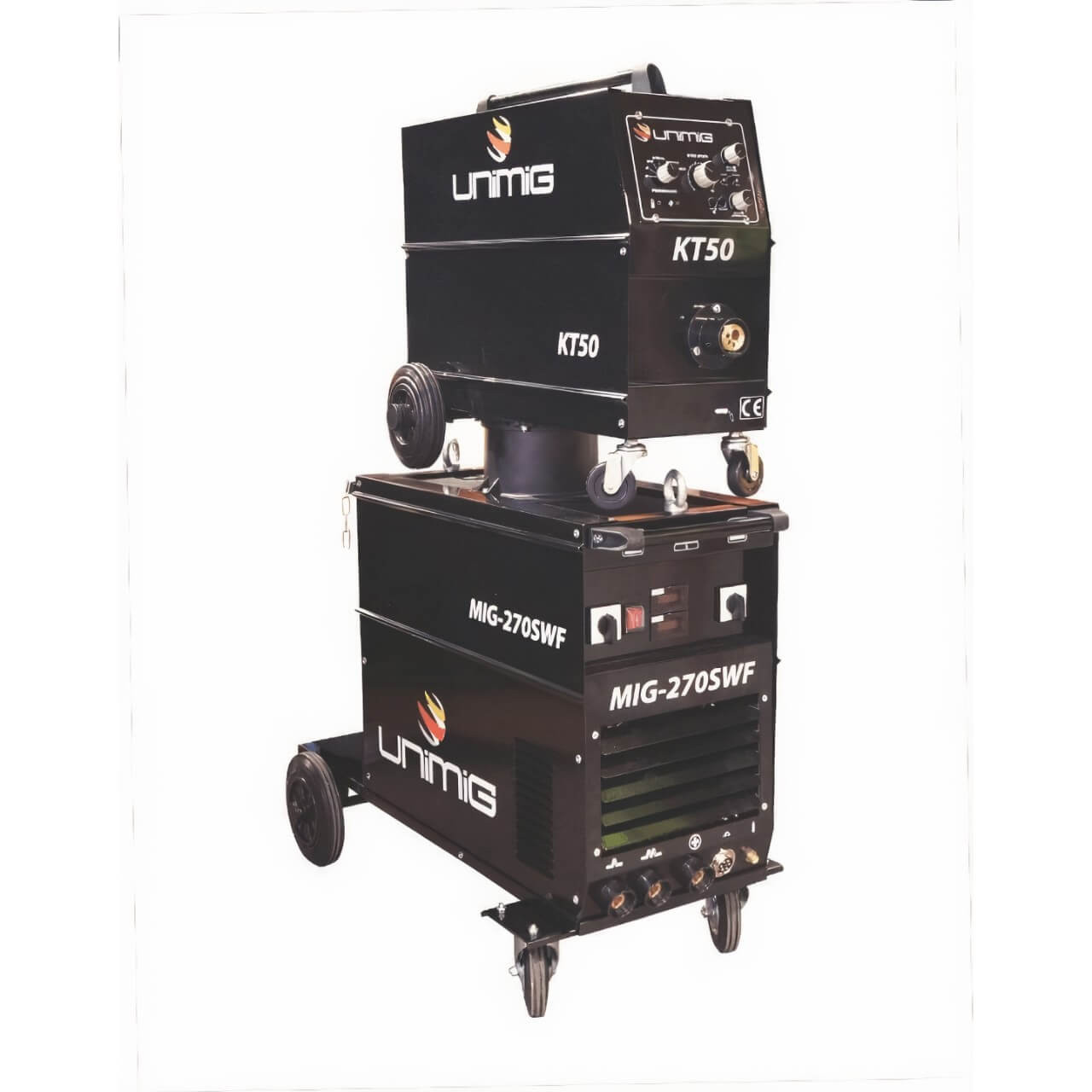

The top of the range Unimig 270 is one of the most powerful MIG’s in it class. Combining an exceptionally high duty cycle and power with very smooth arc characteristics, it is designed for use in medium to heavy fabrication, as well as rural applications. If 3 phase power is unavailable, the Unimig 270 will give you the reliability and power you need to get the job done. Fitted standard with a geared four roller drive system ensuring consistent wire feed and smooth welding.
The 270 SWF is supplied with a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. It comes with fully covered 10 Metre interconnecting cables, a swivel turntable for the wire feed unit and wheels for increased maneuverability
The 270 SWF is supplied with a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. It comes with fully covered 10 Metre interconnecting cables, a swivel turntable for the wire feed unit and wheels for increased maneuverability
| Welding Current Range: | 30-250 Amps |
| Maximum Welding Output: | 270 Amps |
| Primary Input Voltage: | 240V 1 Phase |
| Dimensions (mm): | 1270 x 920 x 460mm |
| Duty Cycle 40°C MIG: | 70% @ 250 Amps - 100% @ 210 Amps |
| Weight (Kgs): | 139kg |
| MIG Wire Diameter Range: | 0.6 – 1.0mm Ferrous, 0.9 – 1.2mm Aluminium, 0.6 – 1.0mm Stainless Steel, 0.8 – 1.2mm Flux cored |
| Minimum Sale Qty: | 1 |
Custom Field
Inner Qty 1
Welding Current Range 30-250 Amps
Cross Reference KUM270SWF
Sales Unit EA
Wire Item false
Estimated Lead Time 5-8 days
Brand Unimig
On Sale Item false
Price Always false
ns_id 9374
item_type _inventoryItem
Shipping Class NON DG
Maximum Welding Output 270 Amps
Primary Input Voltage 240V 1 Phase
Dimensions (mm) 1270 x 920 x 460mm
Duty Cycle 40°C MIG 70% @ 250 Amps - 100% @ 210 Amps
Weight (Kgs) 139kg
MIG Wire Diameter Range 0.6 – 1.0mm Ferrous, 0.9 – 1.2mm Aluminium, 0.6 – 1.0mm Stainless Steel, 0.8 – 1.2mm Flux cored
Minimum Sale Qty 1
