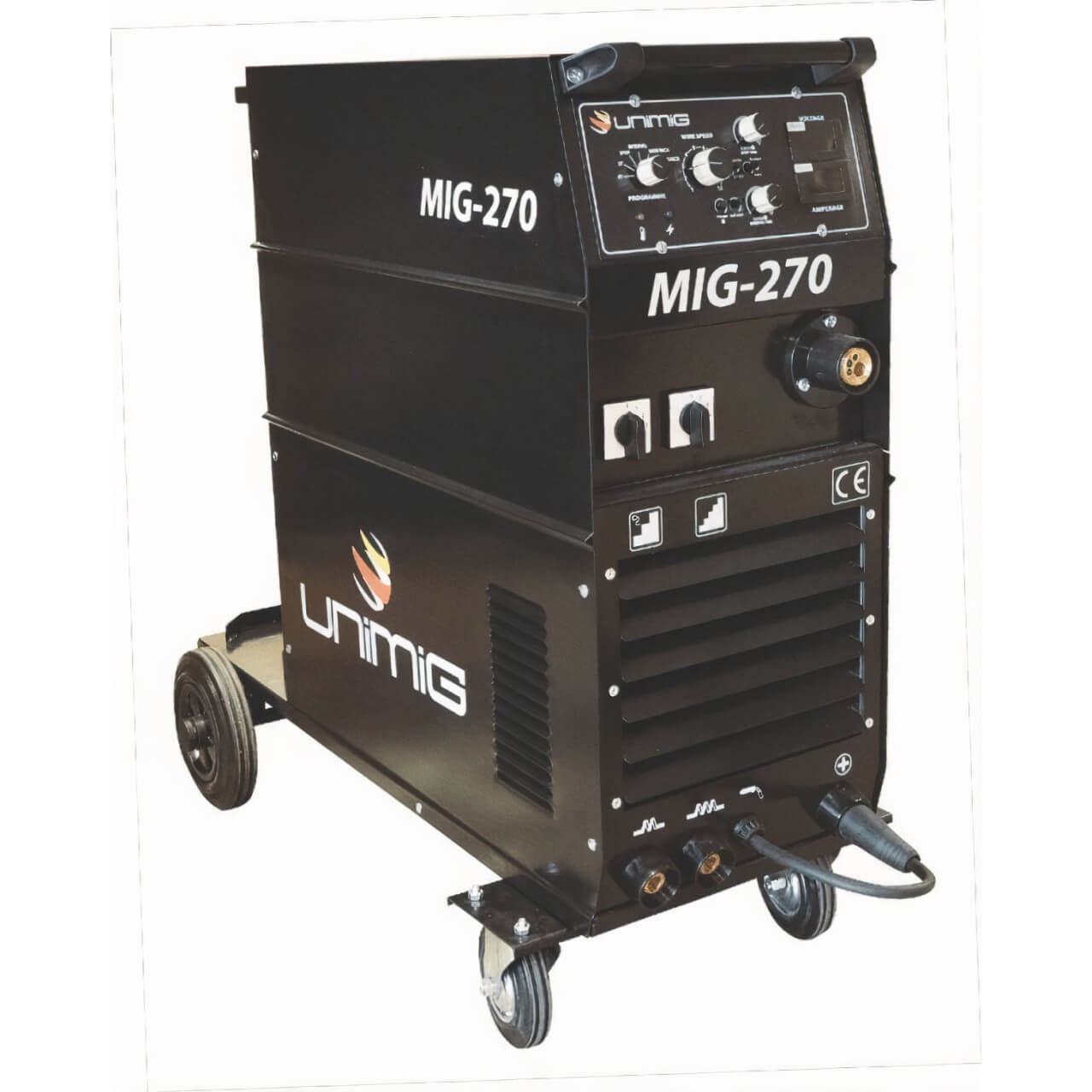

The top of the Single Phase range UNI-MIG 270 SWF is one of the most powerful MIGs in its class. Combining an exceptionally high duty cycle and power with very smooth arc characteristics, it is designed for use in medium to heavy fabrication, as well as rural applications.
If 3 phase ower is unavailable, the Unimig 270 SWF will give you the reliability and power you need to get the job done. Fitted standard with a geared four roller drive system ensuiring consistent wire feed and smooth welding.
The UNI-MIG 270 SWF is supplied with a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. It comes with a set of fully covered 10 metre interconnecting cables, a swivel turntable for the wire feed unit and wheels for increased maneuverability.
Four wheel geared wire drive system
Seperate Wire Feeder
Maximum portability and reach with 10 metre interconnecting cables
Dual inductance for exceptional arc control
High strength steel construction
Heavy duty copper wound transformer
Exceptional high duty cycle 70% @ 250 amps
European made quality manufactured in Hungary
PACKAGE CONTENTS
UNI-MIG 270 SWF MIG Welder
KT 50 Seperate Wire Feeder complete with 10 metre interconnecting cables
SB244M Uni-Mig Sure Grip Ergo MIG torch with Euro connection
10M Earth lead with 35/50 Dinse style connections
UNI-FLAME Twin Gauge Argon Regulator
2M Gas Hose Complete with fittings
If 3 phase ower is unavailable, the Unimig 270 SWF will give you the reliability and power you need to get the job done. Fitted standard with a geared four roller drive system ensuiring consistent wire feed and smooth welding.
The UNI-MIG 270 SWF is supplied with a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. It comes with a set of fully covered 10 metre interconnecting cables, a swivel turntable for the wire feed unit and wheels for increased maneuverability.
Four wheel geared wire drive system
Seperate Wire Feeder
Maximum portability and reach with 10 metre interconnecting cables
Dual inductance for exceptional arc control
High strength steel construction
Heavy duty copper wound transformer
Exceptional high duty cycle 70% @ 250 amps
European made quality manufactured in Hungary
PACKAGE CONTENTS
UNI-MIG 270 SWF MIG Welder
KT 50 Seperate Wire Feeder complete with 10 metre interconnecting cables
SB244M Uni-Mig Sure Grip Ergo MIG torch with Euro connection
10M Earth lead with 35/50 Dinse style connections
UNI-FLAME Twin Gauge Argon Regulator
2M Gas Hose Complete with fittings
| Welding Current Range: | 30-250 Amps |
| Maximum Welding Output: | 270 Amps |
| Primary Input Voltage: | 240V 1 Phase |
| Dimensions (mm): | 870 x 940 x 460mm |
| Duty Cycle 40°C MIG: | 70% @ 250 Amps - 100% @ 210 Amps |
| Weight (Kgs): | 116 Kgs |
| MIG Wire Diameter Range: | 0.6 – 1.0mm Ferrous, 0.9 – 1.2mm Aluminium, 0.6 – 1.0mm Stainless Steel, 0.8 – 1.2mm Flux cored |
| Minimum Sale Qty: | 1 |
| In Stock: | No |
Custom Field
Inner Qty 1
Welding Current Range 30-250 Amps
Cross Reference KUM270
Sales Unit EA
Wire Item false
Estimated Lead Time 5-8 days
Brand Unimig
On Sale Item false
Price Always false
ns_id 7329
item_type _inventoryItem
Shipping Class NON DG
Maximum Welding Output 270 Amps
Primary Input Voltage 240V 1 Phase
Dimensions (mm) 870 x 940 x 460mm
Duty Cycle 40°C MIG 70% @ 250 Amps - 100% @ 210 Amps
Weight (Kgs) 116 Kgs
MIG Wire Diameter Range 0.6 – 1.0mm Ferrous, 0.9 – 1.2mm Aluminium, 0.6 – 1.0mm Stainless Steel, 0.8 – 1.2mm Flux cored
Minimum Sale Qty 1
In Stock No
