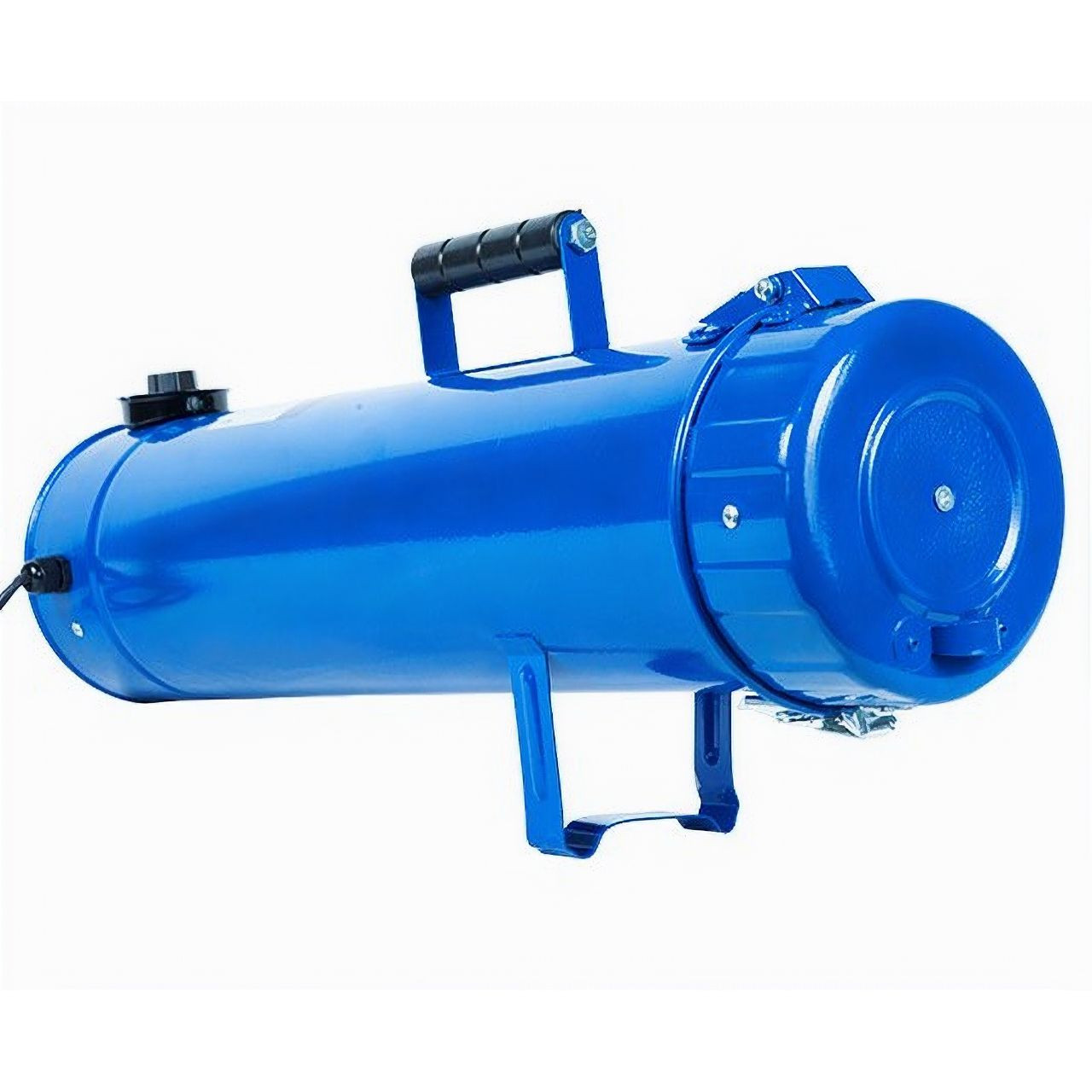

Weldclass Electrode Oven 5-10kg capacity

Portable electrode drying oven (welding rod hot box oven). Robust, lightweight, portable."Two models in one"... designed to suit users that are looking for either 5kg or 10kg capacity. If you only need 5kg capacity, the weight, size & portability is comparible to most 5kg ovens, but with the capacity to fit 10kg if required. If you need 10kg capacity, you'll find the new oven considerably lighter, more compact and more portable than many others on the market. Adjustable temperature 50-200c. Keeps electrodes moisture-free for optimum weld quality and electrode performance. Cylindrical shaped chamber keeps electrodes in better condition & avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged). Click here to read about the design features of this oven in more detail.

Features
- Keeps electrodes moisture-free for optimum weld quality and electrode performance
- 5-10kg capacity (two modelsin one) ;
- Cylindrical Chamber keeps electrodes in better condition &; avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged)
- Lightweight (4.5kg) = Reduced strain on operator

Applications
- Commonly used with Low-Hydrogen electrodes, to eliminate moisture contamination &; maintain electrode mechanical properties
- Suitable for all types of electrodes

Specifications
- Variable temperature control 50-200c
- Over-centre latch to hold lid firmly shut
- Protected temperature control knob
- Insulated lid for improved temperature stability
- Overall dimensions: 600 x 300 x 160mm including handle and foot
- Shipping Weight / Dimensions: 5.5kg 280 x 180 x 620mm
- Galvanised internal chamber for durability
- Internal chamber size: ø105 dia x 470mm
- Fits electrodes up to 500mm long
- Power supoply: 240v 10A
- Heating element: 285W
- Weight: 4.5kg
- Approvals / Conformance: CE EN 61000: 6-1, 6-3, 3-2, 3-3
