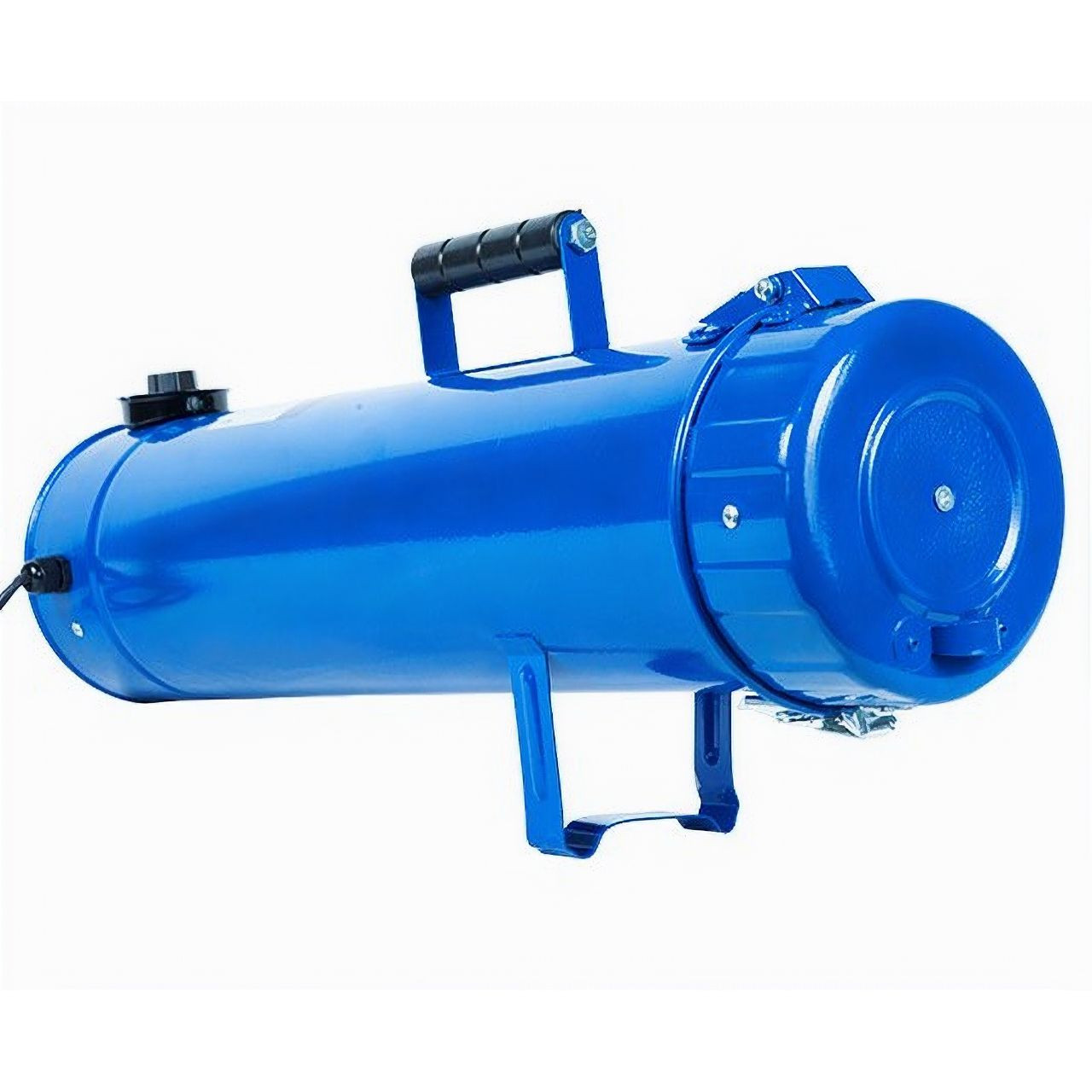

Features
- Keeps electrodes moisture-free for optimum weld quality and electrode performance
- 5-10kg capacity (two modelsin one) ;
- Cylindrical Chamber keeps electrodes in better condition &; avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged)
- Lightweight (4.5kg) = Reduced strain on operator
Applications
- Commonly used with Low-Hydrogen electrodes, to eliminate moisture contamination &; maintain electrode mechanical properties
- Suitable for all types of electrodes
Specifications
- Variable temperature control 50-200c
- Over-centre latch to hold lid firmly shut
- Protected temperature control knob
- Insulated lid for improved temperature stability
- Overall dimensions: 600 x 300 x 160mm including handle and foot
- Shipping Weight / Dimensions: 5.5kg 280 x 180 x 620mm
- Galvanised internal chamber for durability
- Internal chamber size: ø105 dia x 470mm
- Fits electrodes up to 500mm long
- Power supoply: 240v 10A
- Heating element: 285W
- Weight: 4.5kg
- Approvals / Conformance: CE EN 61000: 6-1, 6-3, 3-2, 3-3
Weight (Kgs): | 5.5 |
Minimum Sale Qty: | 1 |
In Stock: | Yes |
