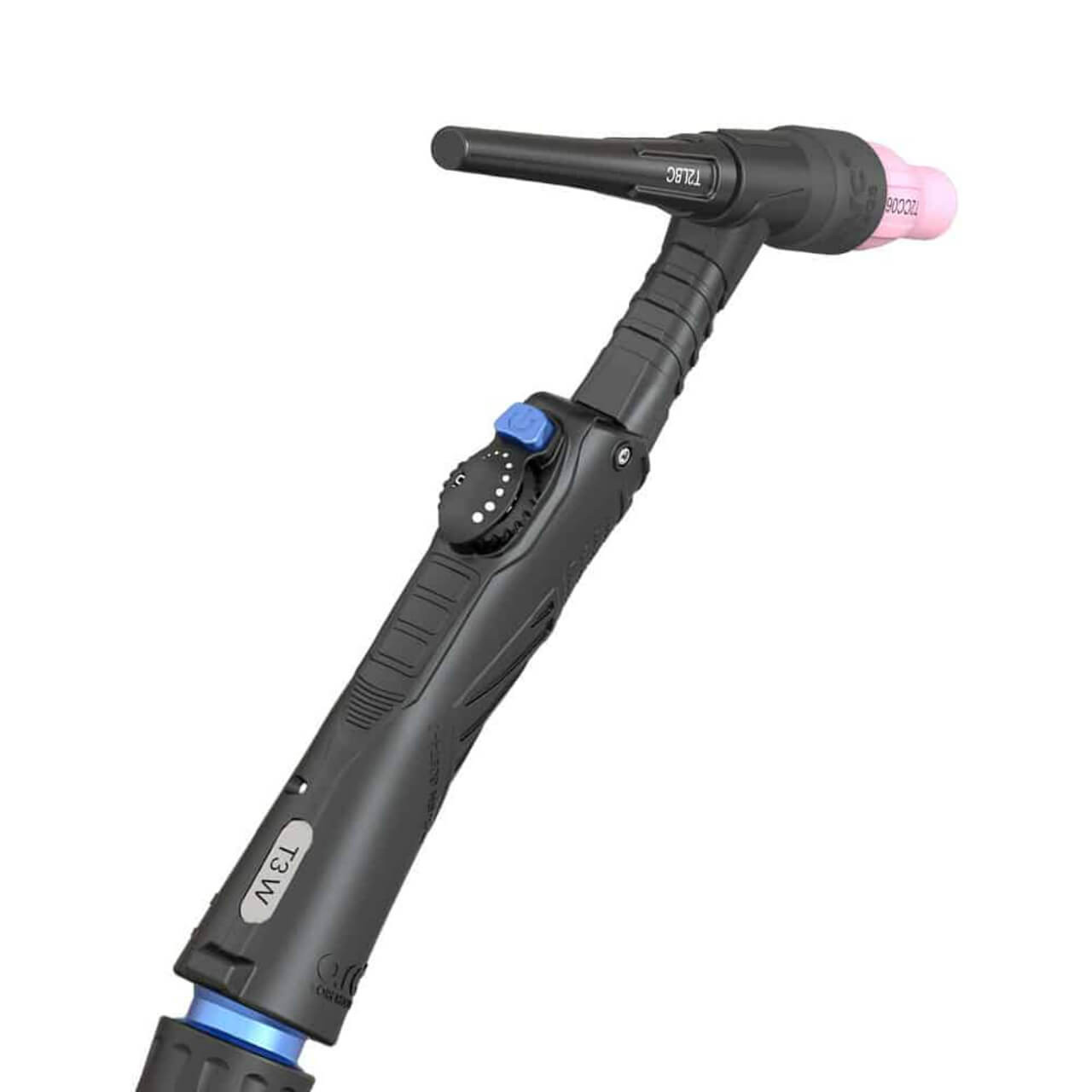

UNIMIG T3W Water Cooled TIG Torch 4m / 8m 400A Welding Gun Welder T3W-3KHL-4M. A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life. High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body. Up to 20x longer consumable life.
FEATURES:
- Force Cool Technology: A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
- Bi-Flow Technology: High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.
- Tungsten Release System: Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
- Flex-Neck Torch Head: Arc Torchology Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
- Up to 20x longer consumable life.
- More power from a lighter torch.
- Superior life &; better performance.
SPECIFICATIONS:
- Output Current: 400A (Maximum)
- Cooling Method: Water Cooled
- Duty Cycle:
- DC: 100% at 400A
- AC: 100% at 280A
- Dinse Size: 35/50
- Electrode Size: 1.0-4.0mm
- Water Cooler Specs:
- Minimum Water Flow: 1.5L/min
- Minimum Water Inlet Pressure: 3.0 Bar
- Maximum Water Inlet Pressure: 5.0 Bar
- Maximum Water Inlet Temperature: 50°C
- Minimum Cooling Power: 900W
- Standard: EN60974-7
