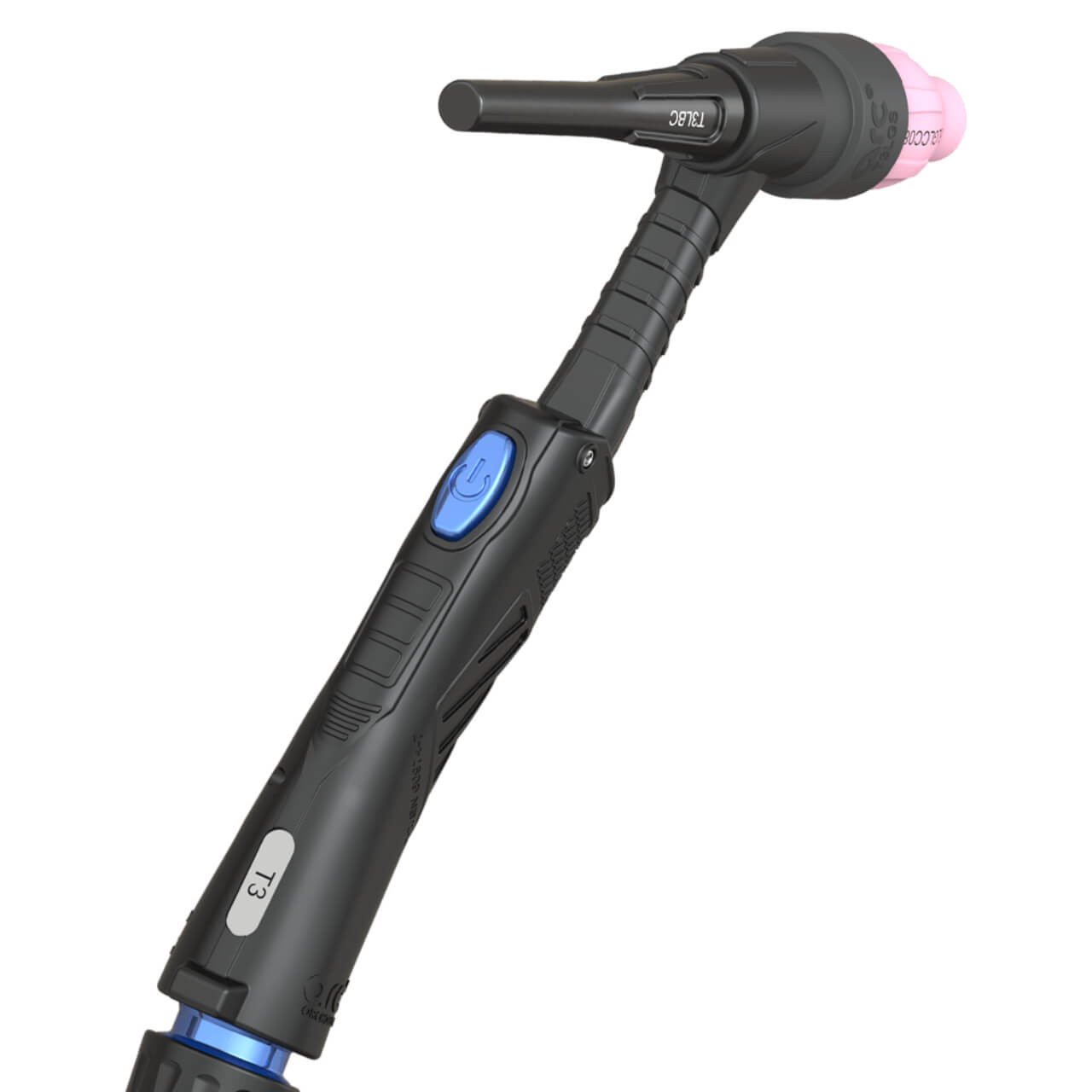

The ARC TORCHOLOGY® T3 TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a 30% better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body! The T3 TIG Torch also comes with a flex-neck torch head as standard, perfect for TIG welding in tighter and restrictive environments.
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 240A MAXIMUM OUTPUT.
- 30% MORE POWER COMPARED TO SR26 TIG TORCH.
- UP TO 20X LONGER CONSUMABLE LIFE, SUPERIOR LIFE & BETTER PERFORMANCE.
- FORCE COOL™ TECHNOLOGY: A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
- HEAT ZONE ISOLATION™ TECHNOLOGY: Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.
- TUNGSTEN RELEASESYSTEM™: Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
- FLEX-NECK TORCH HEAD: ARC TORCHOLOGY® Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE - DC: 35% @ 240A
- DUTY CYCLE - AC: 35% @ 170A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 240A MAXIMUM OUTPUT.
- 30% MORE POWER COMPARED TO SR26 TIG TORCH.
- UP TO 20X LONGER CONSUMABLE LIFE, SUPERIOR LIFE & BETTER PERFORMANCE.
- FORCE COOL™ TECHNOLOGY: A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
- HEAT ZONE ISOLATION™ TECHNOLOGY: Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.
- TUNGSTEN RELEASESYSTEM™: Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
- FLEX-NECK TORCH HEAD: ARC TORCHOLOGY® Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
SPECIFICATIONS:
- COOLING METHOD: Air Cooled
- DUTY CYCLE - DC: 35% @ 240A
- DUTY CYCLE - AC: 35% @ 170A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
