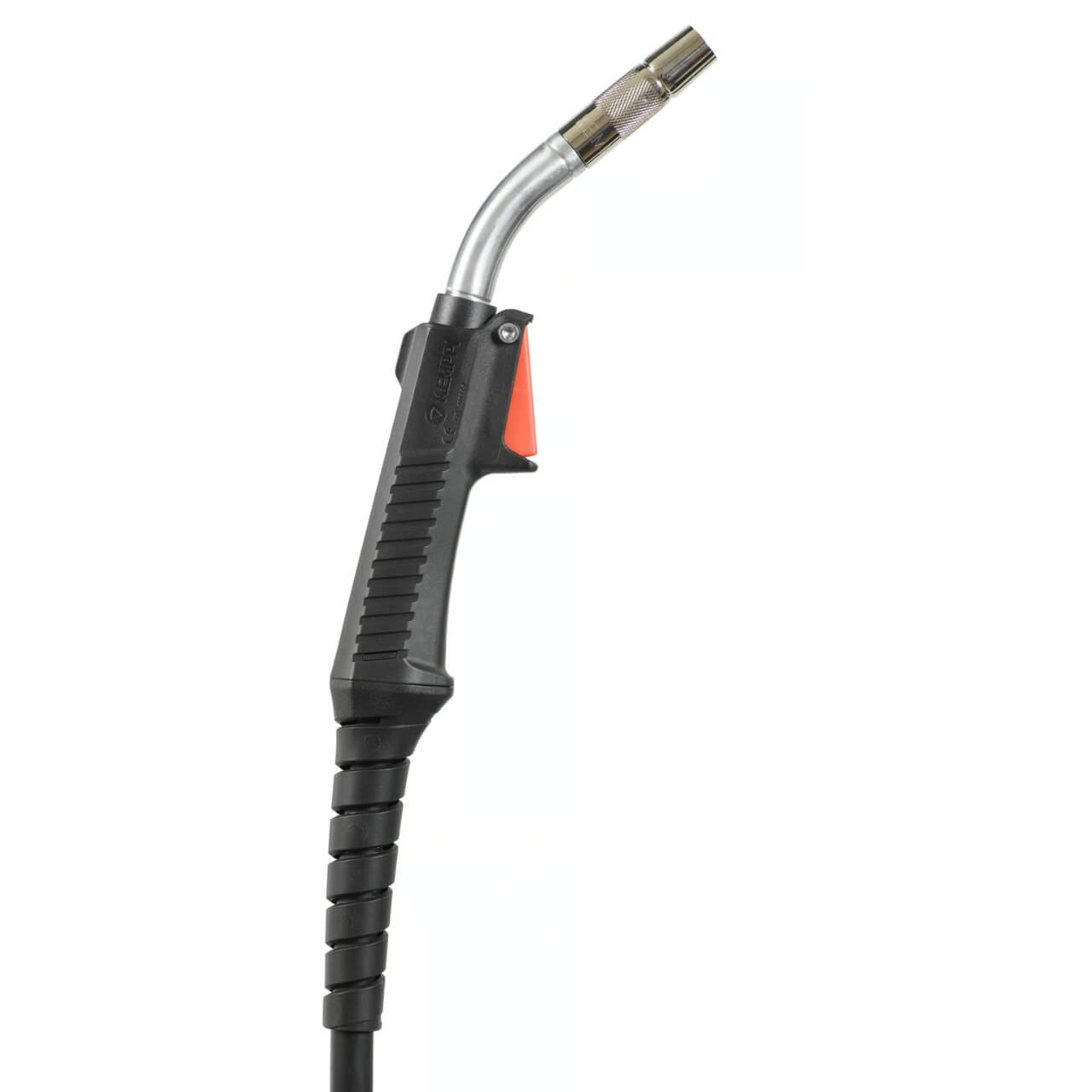

Kemppi GC 223 G MIM 3m Gas Cooled Mig Torch

A gas-cooled 220 A MIG/MAG welding torch with a MinarcMig connector. The cable length is 3 meters.

SPECIFICATIONS:
- Description: Value
- Welding connection type: Built-in
- Standards: IEC 60974-7
- Contact tip: M6
- Method of guidance: Manual
- Type of cooling: Air
- Load capacity 35% / Ar + 18% CO₂: 220 A
- Load capacity test, filler wire diameter: 1 mm
- Load capacity test, stick out length: 15 mm
- Gun handle: Yes
- Neck dimensions: length: 107 mm
- Neck dimensions: height: 65 mm
- Welding torch cable length: 3 m
- Remote control: No
- Load capacity test, gas flow: 13 l/min
- Neck dimensions: angle: 40 °
- Neck type: Rotating
- Load capacity test, filler wire material: Fe
- Filler wire diameter: 0.6 mm...1 mm
- Filler wire diameter, Fe: 0.6 mm...1 mm
- Filler wire diameter, Fe-MC/FC: 0.9 mm...1 mm
- Filler wire diameter, Ss: 0.8 mm...1 mm
- Filler wire diameter, Ss-MC/FC: 0.9 mm...1 mm
- Filler wire diameter, Al: 0.8 mm...1 mm
- Operating temperature: -20 °C...40 °C
- Storage temperature: -40 °C...60 °C
