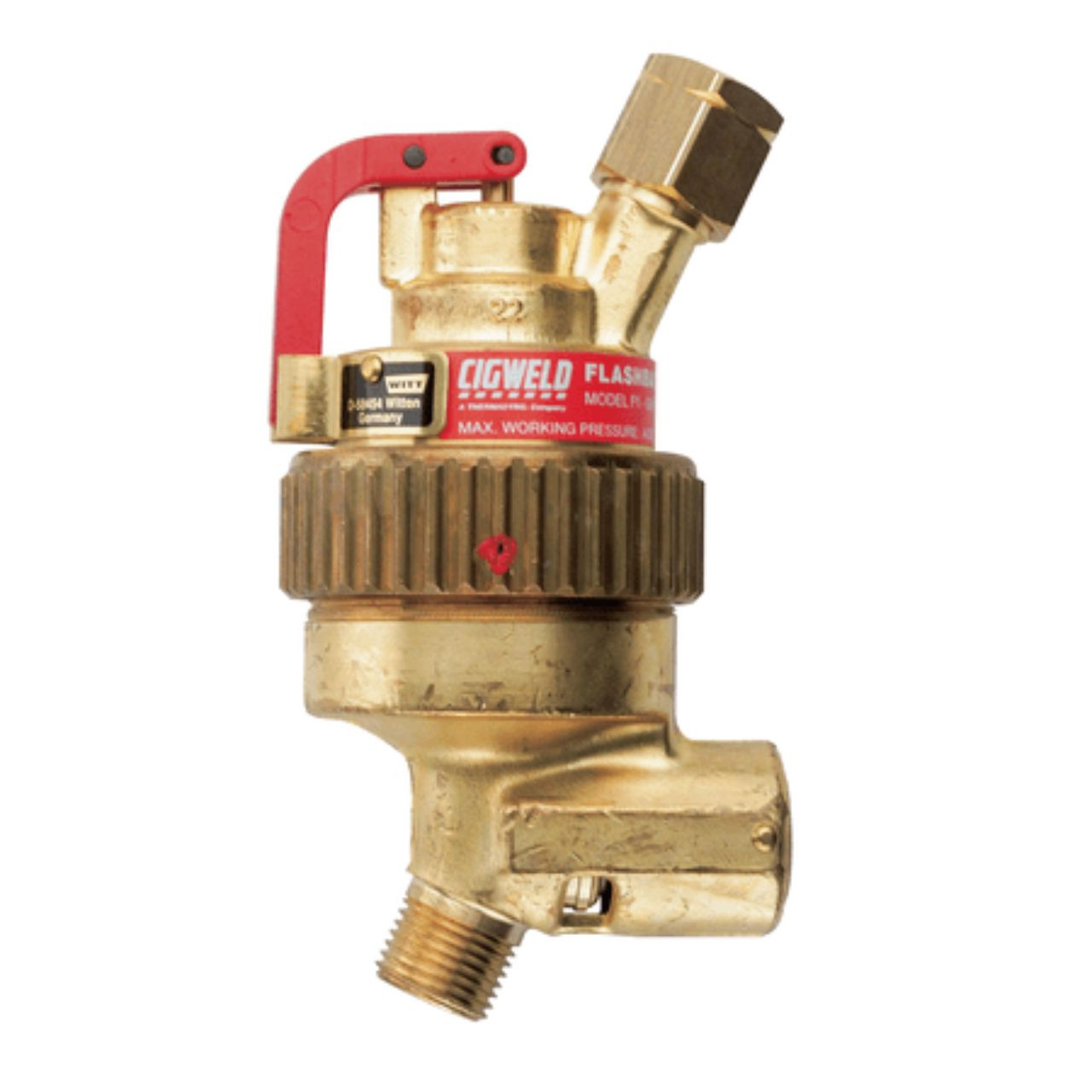

Designed for connection to the outlet of regulators incorporating a pressure actuated cut-off valve to prevent further gas flow after a flashback occurs.
Pressure actuated cut-off valve to prevent further gas flow after a flashback occurs. Operation is indicated by a signal level. After resetting the lever it is ready for immediate re-use.
Non-return valve.
Large surface stainless steel conical flame arrestor.
Pressure relief valve to vent excessive pressure.
Temperature activated shut-off valve.
Supplied with inlet filter.
Complies to AS4603.
Conforms to EN730/DIN 8521, UL, ISO 5175 class I (fittings to AS4267-1995).
Tested by BAM.
Pressure actuated cut-off valve to prevent further gas flow after a flashback occurs. Operation is indicated by a signal level. After resetting the lever it is ready for immediate re-use.
Non-return valve.
Large surface stainless steel conical flame arrestor.
Pressure relief valve to vent excessive pressure.
Temperature activated shut-off valve.
Supplied with inlet filter.
Complies to AS4603.
Conforms to EN730/DIN 8521, UL, ISO 5175 class I (fittings to AS4267-1995).
Tested by BAM.
Custom Field
Inner Qty 1
Cross Reference 308800M
Sales Unit EA
Wire Item false
Estimated Lead Time 5-8 days
Brand Cigweld
On Sale Item false
Price Always false
ns_id 22048
item_type _inventoryItem
Shipping Class NON DG
Minimum Sale Qty 1
UNSPSC Code 23271700
