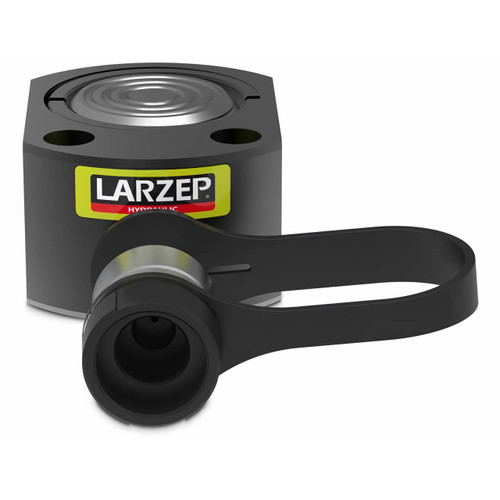

Larzep Low Height Pad Jack S/R 22 T 11 mm Stroke

SMX low profile pancake cylinders have a short cylinder body to fit into very tight spaces. These single-acting cylinders include a pre-tensioned spring to return the plunger back to its lowest position. The body and saddle feature a nitrocarburized finish for exceptional durability. Optional tilting saddles can be mounted onto 50 to 150 ton models to resist side load.

FEATURES:
- Capacities from 4 to 150 ton, strokes up to 16 mm.
- Two low profile versions to choose from: SX for load return, and SMX for spring return.
- For use in confined space purposes such as machinery positioning, or tool fastening.
- Body includes two parallel faces for stability in horizontal operation.
- Mounting bolt holes for easy fixing.
- Nitrocarburized as standard to improve corrosion and side-load resistance.
- All units load tested under 125% of the nominal capacity.
- Female AZ3140 coupling with rubber dust cap included.

SPECIFICATIONS:
- Maximum Operating Pressure (bar): 700
- Capacity (kN): 228
- Capacity (metric tons): 22
- Stroke (mm): 11
- Collapsed Height A (mm): 52
- Extended Height B (mm): 63
- Return Type: Single Acting Spring Return
- Material: Steel
- Cylinder Effective Area Advance (cm2): 33
- Oil Capacity Advance (cm3): 37
- Weight (kg): 2.8

DIMENSIONS:
- Collapsed Height A (mm): 52
- Dimension A (mm): 52
- Extended Height B (mm): 63
- Dimension B (mm): 63
- Outside Diameter D (mm): 80
- Dimension D (mm): 80
- Dimension E (mm): 65
- Dimension F (mm): 57
- Dimension L (mm): 42
- Dimension N (mm): -
- Dimension O (mm): 39
- Dimension P (mm): 41
- Dimension R (mm): 9
- Dimension S (mm): 50
