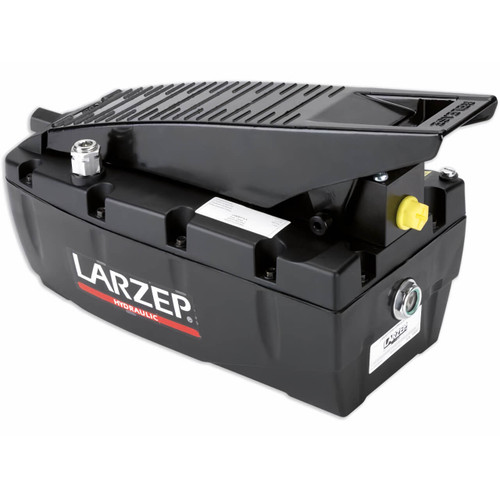

Larzep Air/Hydraulic Pump S/A 2,1L 0,8L/M Pedal Control

FEATURES:
- Pedal acts as the control valve, by controlling advance, hold and retract functions. In 'hold' mode, the pump maintains the output pressure.
- 3/8"-NPT female hydraulic port.
- Working pressure 700 bar.
- Optional steel base plate available.
- Air Inlet Port: 1/4" BSP female.
- Air Pressure: 2,8 - 10 bar.
- Air Consumption: 400 N l/min.
- 700 bar Flow Rate: 0,14 l/min.
- Sound level: 75 dBA

SPECIFICATIONS:
- Maximum Operating Pressure (bar): 700
- Air Consumption (l/min): 400 N
- Cylinder Compatability: Single Acting
- Pump Type: Pedal Operated
- Usable Oil Capacity (litres): 2.1
- Output Flow Rate at 50 bar (l/min): 0.14
- Air Pressure Range (bar): 2.8 - 10
- Weight (kg): 7.6

DIMENSIONS:
- Dimension A (mm): 209
- Dimension B (mm): 127
- Dimension C (mm): 109
- Dimension D (mm): -
- Dimension E (mm): 82
- Dimension F (mm): 320
- Dimension H (mm): 155
- Dimension L (mm): -
- DimensionM (mm): -
