Taps

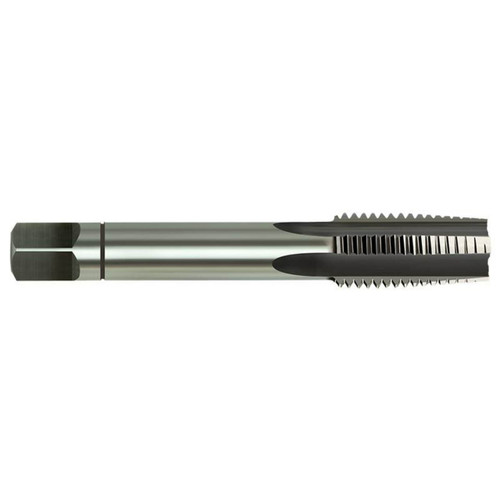

Alpha M32 1.5P Conduit Carbon Taper Tap

FEATURES:- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.- Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha 1” 11.5tpi NPT HSS Bottoming Tap

FEATURES:- NPT - ISO 2284 / ANSI B94-9- Style - Pipe TaperSPECIFICATIONS:- Thread Diameter: 1"- TPI: 11.5- Overall Length: 95 mm- Drill Size: 29.0 mm

Alpha 5/16 24tpi UNF HSS-E Spiral Point Tap (Gun Nose)

FEATURES:- Premium grade HSS-E raw material- Manufactured to ISO and DIN StandardsSPECIFICATIONS:- Diameter: 5/16"- TPI: 24 tpi- Overall Length: 72 mm- Drill Size: 6.9- Style: Fine - Spiral Point- Measure Standard: UNF

Alpha 1/4 28tpi UNF HSS-E Spiral Point Tap (Gun Nose)

FEATURES:- Premium grade HSS-E raw material- Manufactured to ISO and DIN StandardsSPECIFICATIONS:- Diameter: 1/4"- TPI: 28 tpi- Overall Length: 66 mm- Drill Size: 5.5- Style: Fine - Spiral Point- Measure Standard: UNF

Alpha Carbon Tap Set BSW 5/8 11tpi

FEATURES:- BSW / BSF - Carbon - ISO 529- Cut and renew internal threads to exacting standardsSPECIFICATIONS:- Thread Dia: 5/8"- TPI: 11- Overall Length: 102 mm- Drill Size: 13.5 mm

Alpha 3/8 24tpi UNF HSS-E Spiral Point Tap (Gun Nose)

FEATURES:- Premium grade HSS-E raw material- Manufactured to ISO and DIN StandardsSPECIFICATIONS:- Diameter: 3/8"- TPI: 24 tpi- Overall Length: 80 mm- Drill Size: 8.5- Style: Fine - Spiral Point- Measure Standard: UNF

Alpha M20 2.5P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 20- Drill Size (mm): 17- Flute Length (mm): 30- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 140- Pitch (mm): 2.5- Shank Size (mm): 16- Longest side (mm): 140...

Alpha M18 2.5P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 18- Drill Size (mm): 15.5- Flute Length (mm): 30- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 125- Pitch (mm): 2.5- Shank Size (mm): 14- Longest side (mm): 130...

Alpha M14 2.0P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 14- Drill Size (mm): 12- Flute Length (mm): 25- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 110- Pitch (mm): 2- Shank Size (mm): 11- Longest side (mm): 110.00-...

Alpha M12 1.75P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 12- Drill Size (mm): 10.2- Flute Length (mm): 23- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 110- Pitch (mm): 1.75- Shank Size (mm): 9- Longest side (mm): 120...

Alpha M10 1.5P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 10- Drill Size (mm): 8.5- Flute Length (mm): 20- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 100- Pitch (mm): 1.5- Shank Size (mm): 10- Longest side (mm): 115...

Alpha M8 1.25P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 8- Drill Size (mm): 6.8- Flute Length (mm): 18- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 90- Pitch (mm): 1.25- Shank Size (mm): 8- Longest side (mm): 115...

Alpha M6 1.0P MC HSS-E Spiral Flute Tap

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 6- Drill Size (mm): 5- Flute Length (mm): 15- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 80- Pitch (mm): 1- Shank Size (mm): 6- Longest side (mm): 95.00-...

Alpha 1/8 28tpi BSPT HSS Bottoming Tap

SPECIFICATIONS:- Diameter (in): 1/8- Drill Size (mm): 8.4- OAL (mm): 59- TPI: 28- Longest side (mm): 70.00- Median side (mm): 18.00- Shortest side (mm): 18.00- Weight (gr): 25.00

Alpha M20 2.5P HSS-E Tap MC Spiral Point

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 20- Drill Size (mm): 17- Flute Length (mm): 25- Head Type: Spiral Point- Material: HSSE- OAL (mm): 140- Pitch (mm): 2.5- Shank Size (mm): 16- Longest side (mm): 140...

Alpha M18 2.5P HSS-E Tap MC Spiral Point

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 18- Drill Size (mm): 15.5- Flute Length (mm): 25- Head Type: Spiral Point- Material: HSSE- OAL (mm): 125- Pitch (mm): 2.5- Shank Size (mm): 14- Longest side (mm): 130...

Alpha M14 2.0P HSS-E Tap MC Spiral Point

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 14- Drill Size (mm): 12- Flute Length (mm): 20- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 110- Pitch (mm): 2- Shank Size (mm): 11- Longest side (mm): 115.00-...

Alpha M8 1.25P HSS-E Tap MC Spiral Point

Metric Coarse Spiral Point/Spiral Flute - HSSE - DIN 371SPECIFICATIONS:- Diameter (mm): 8- Drill Size (mm): 6.8- Flute Length (mm): 13- Head Type: Spiral Flute- Material: HSSE- OAL (mm): 90- Pitch (mm): 1.25- Shank Size (mm): 8- Longest side (mm): 115...

Alpha 1/2 16tpi BSF Carbon Taper Tap

FEATURES:- BSW / BSF - Carbon - ISO 529- Cut and renew internal threads to exacting standards

Alpha 1/2 16tpi BSF Carbon Intermediate Tap

FEATURES:- BSW / BSF - Carbon - ISO 529- Cut and renew internal threads to exacting standards

Alpha 1/2 16tpi BSF Carbon Bottoming Tap

FEATURES:- BSW / BSF - Carbon - ISO 529- Cut and renew internal threads to exacting standards

Alpha Carbon Tap Set BSW 1/2 12tpi

FEATURES:- BSW / BSF - Carbon - ISO 529- Cut and renew internal threads to exacting standards

Alpha 3/4 10tpi Carbon UNC Tap Set 3pce

FEATURES:- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.- Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

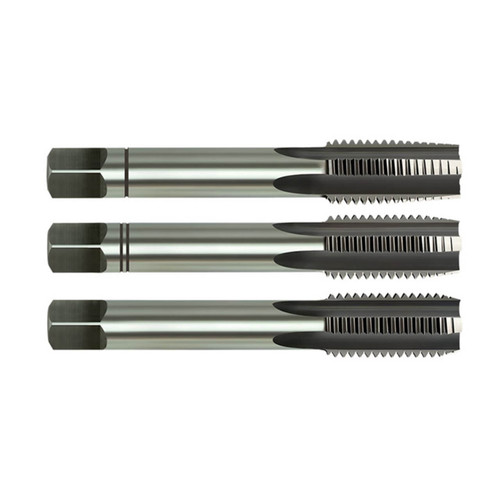

Alpha Carbon Tap Set BSPF 1/4 19tpi

FEATURES:- UNF / BSPF / NPSF - ISO 529 / ANSI B94-9- Cut and renew external threads to exacting standards

Alpha 1/2 13tpi HSS UNC Tap Set 3pce

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

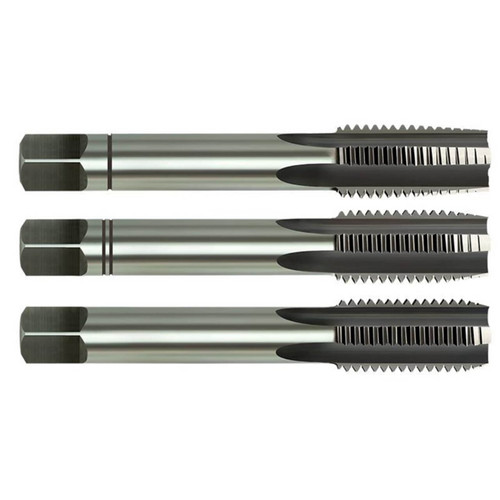

Carbon Tap Set MF-12x1.5

FEATURES:- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.- Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha 1/2 13tpi UNC HSS Bottoming Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha 1/2 13tpi UNC HSS Taper Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha 3/8 16tpi UNC HSS Taper Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha M12 1.25P SP HSS Bottoming Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha M12 1.25P SP HSS Taper Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...

Alpha M10 1.5P MC HSS Bottoming Tap

FEATURES:- Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.- HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.- 2N Tolerance for optimum thread fit that...
