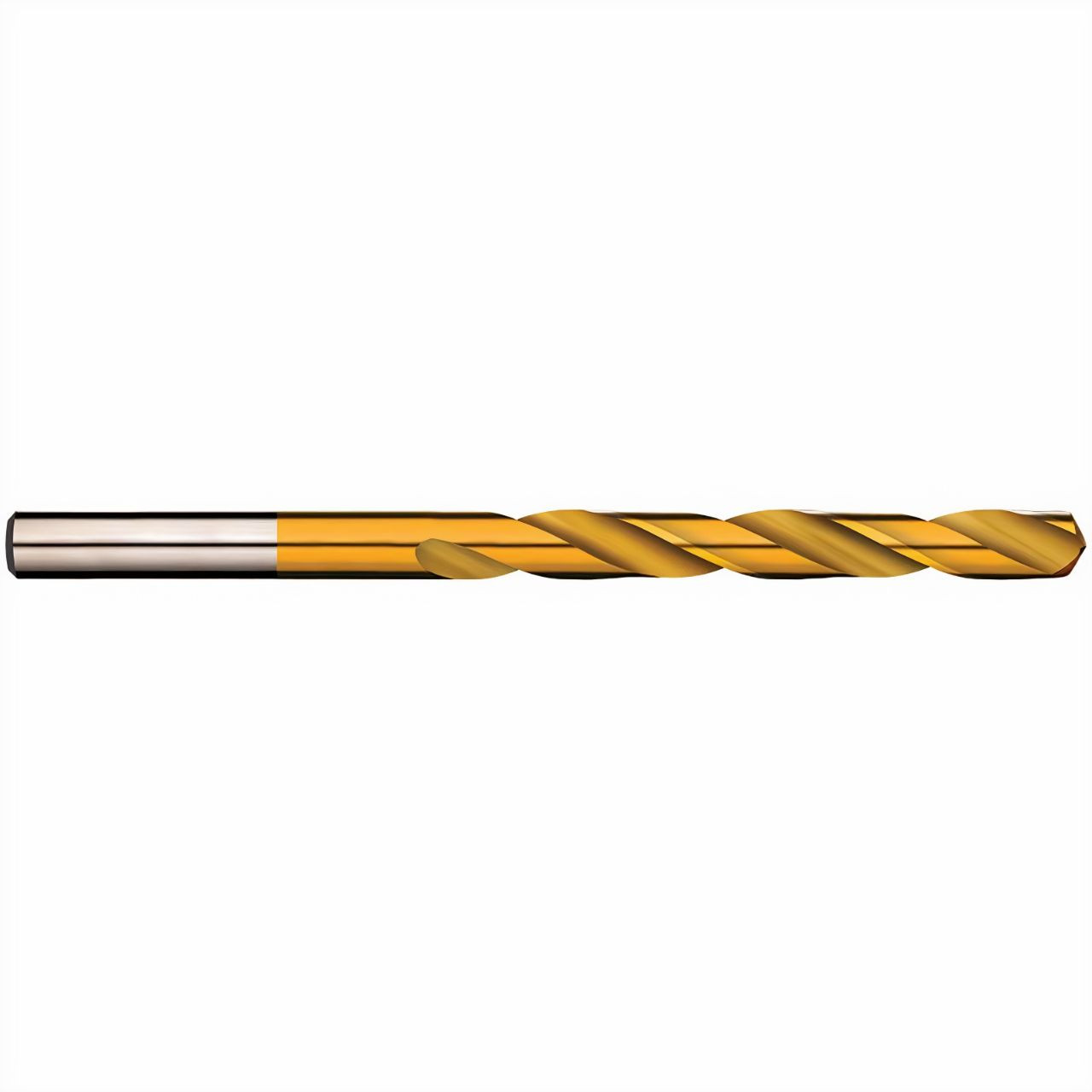

Alpha Gold Series 11/32 inch Jobber Drill Bit When you go to buy a drill bit, what are you needing? Just a drill? or do you actually want HOLES ? Rigorous independant testing has proven that the Gold Series Drills outperform other Australian drills on the market by more than 30% - giving you more holes for your dollar in every single drill bit!
Drill Features
- M2 HSS Fully ground M2 HSS material increases drill life
- Titanium Nitride coating reduces heat and increases lubricity for extended life
- 135 Degree Split Point cuts faster and reduces wandering
Alpha Gold Series Drills are packaged in a reusable plastic hang pack, keeping your drills safe, clean and dry. Gold Series Drills are also available as a single piece in our carded range.
Technical Data
Overall Length 82mm
Flute Length 54mm  ;  ;  ; ;
Stainless Steel RPM ;  ; 868 ;  ;  ;  ;  ; ;
Tool Steel RPM ;  ; 1302 ;  ;  ;  ;  ; ;
Cast Iron RPM ;  ; 1737 ;  ;  ;  ;  ; ;
Malleable Iron RPM ;  ; 1954 ;  ;  ;  ;  ; ;
Medium Carbon Steel RPM ;  ; 2171 ;  ;  ;  ;  ; ;
Free Cutting Steel RPM ;  ; 3111 ;  ;  ;  ;  ; ;
Alum, Brass, Plastic RPM ;  ; 4414 ;  ;  ;  ;  ; ;
Wood RPM ;  ; 6585 ;  ;  ;  ;  ;  ;
Feed per RPM (mm / rev) ;  ; .05-.15 ;  ;  ;  ;  ; ;
Standard pack Qty ;  ; 10 ;  ;  ;  ;  ;
Drill Features
- M2 HSS Fully ground M2 HSS material increases drill life
- Titanium Nitride coating reduces heat and increases lubricity for extended life
- 135 Degree Split Point cuts faster and reduces wandering
Alpha Gold Series Drills are packaged in a reusable plastic hang pack, keeping your drills safe, clean and dry. Gold Series Drills are also available as a single piece in our carded range.
Technical Data
Overall Length 82mm
Flute Length 54mm  ;  ;  ; ;
Stainless Steel RPM ;  ; 868 ;  ;  ;  ;  ; ;
Tool Steel RPM ;  ; 1302 ;  ;  ;  ;  ; ;
Cast Iron RPM ;  ; 1737 ;  ;  ;  ;  ; ;
Malleable Iron RPM ;  ; 1954 ;  ;  ;  ;  ; ;
Medium Carbon Steel RPM ;  ; 2171 ;  ;  ;  ;  ; ;
Free Cutting Steel RPM ;  ; 3111 ;  ;  ;  ;  ; ;
Alum, Brass, Plastic RPM ;  ; 4414 ;  ;  ;  ;  ; ;
Wood RPM ;  ; 6585 ;  ;  ;  ;  ;  ;
Feed per RPM (mm / rev) ;  ; .05-.15 ;  ;  ;  ;  ; ;
Standard pack Qty ;  ; 10 ;  ;  ;  ;  ;
