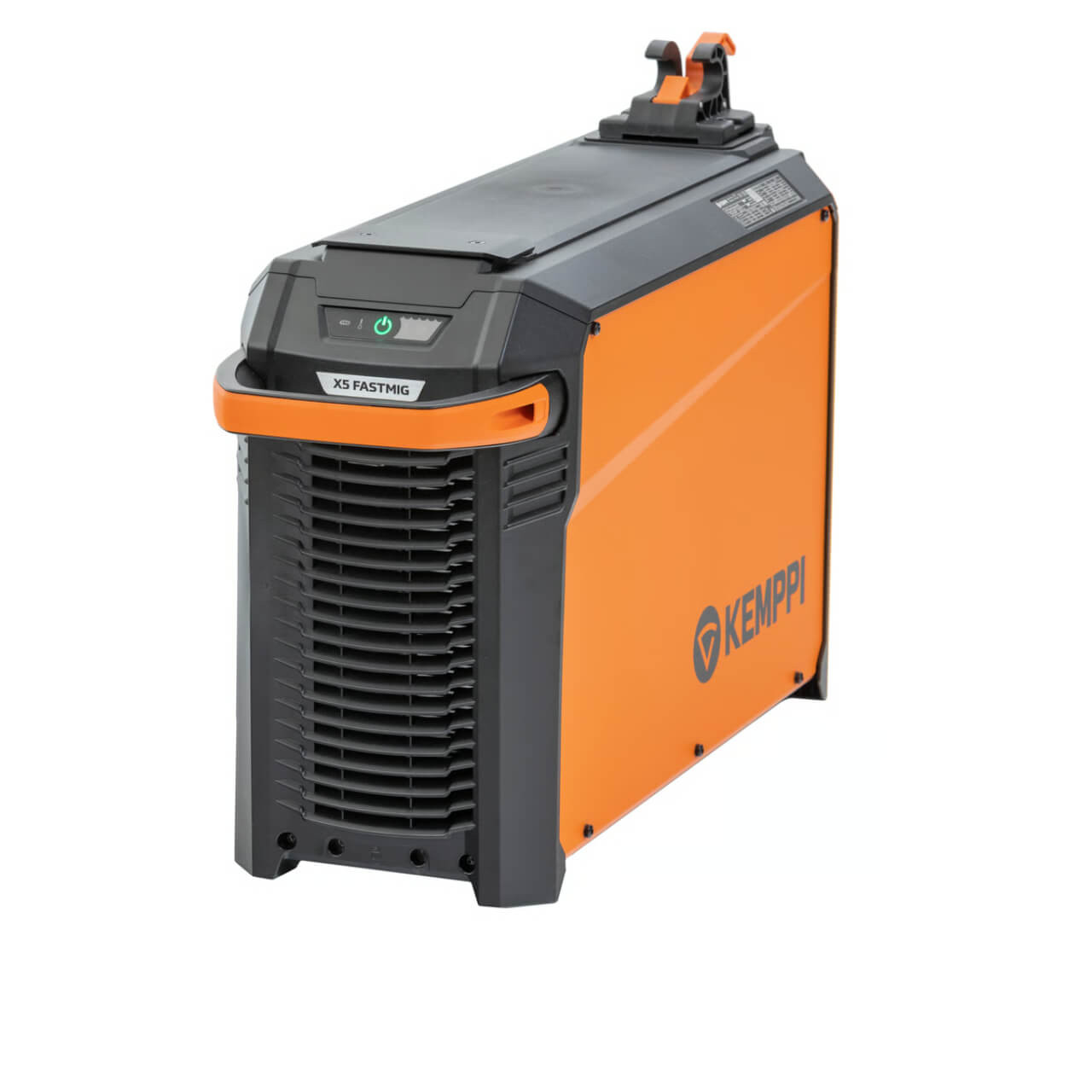

Multi-process power source that provides 400 A with 60% duty cycle. Manual, synergic, pulse, and double pulse welding options available. Includes WiseSteel and WiseFusion welding processes and X5 Work Pack Pulse with 54 welding programs. Compatible with all MAX welding processes as well as WisePenetration, WiseRoot+, and WiseThin+ welding processes. In robotic welding applications, TIG and MMA processes are not available.
SPECIFICATIONS:
- Mains connection voltage: 380...460 V ±10 %
- Mains connection phases: 3~50/60 Hz
- Mains connection cable type: H07RN-F
- Mains connection cable size: 4 mm²
- Maximum supply current [I1max]: 26 A...28 A
- Effective supply current [I1eff]: 22 A...24 A
- Rated maximum input power [S1max]: 20 kVA
- Mains fuse: 25 A
- Idle state power consumption [P1idle]: 33 W
- No-load state power consumption (MMA), power save: 34 W
- No-load state power consumption (MMA), fans ON: 230 W
- No-load voltage [U0]: 76 V...94 V
- Open circuit voltage [Uav]: 76 V...94 V
- Output at +40 °C, 60% MIG: 400 A
- Output at +40 °C, 100% MIG: 350 A
- Output range, MIG: 15 A / 10 V ... 400 A / 50 V
- Output range, TIG: 15 A / 1 V ... 400 A / 50 V
- Output range, MMA: 15 A / 10 V ... 400 A / 50 V
- Voltage adjustment range, MIG: 8 V...50 V
- Power factor at rated maximum current [λ]: 0.86
- Efficiency at rated maximum current [η]: 89 %
- EMC class: A
- Minimum short-circuit power of supply network [Ssc]: 6.3 MVA
- Voltage supply for auxiliary devices: 12 V, 48 V
- Voltage supply for cooling unit: 24 V, 380...460 V
- Wired communication type: CAN bus
- Operating temperature: -20 °C...40 °C
- Storage temperature: -40 °C...60 °C
- Recommended minimum generator power [Sgen]: 25 kVA
- Degree of protection (fully installed): IP23S
- External dimensions, length: 750 mm
- External dimensions, width: 263 mm
- External dimensions, height: 456 mm
- Weight without accessories: 39.5 kg
- Standards: IEC 60974-1, -10
