FEATURES:
- Enables removal and replacement of valve stem oil seals and valve spring eliminating cylinder head removal
- Universal kit features multi hole adjustable handle and interchangeable valve spring adaptors to enable unlimited setting combinations
- Collet sizes: 19–24mm, 19.2–25.5mm, 19.2–26mm, 27.5–33.5mm and one universal adaptor
ATTRIBUTES

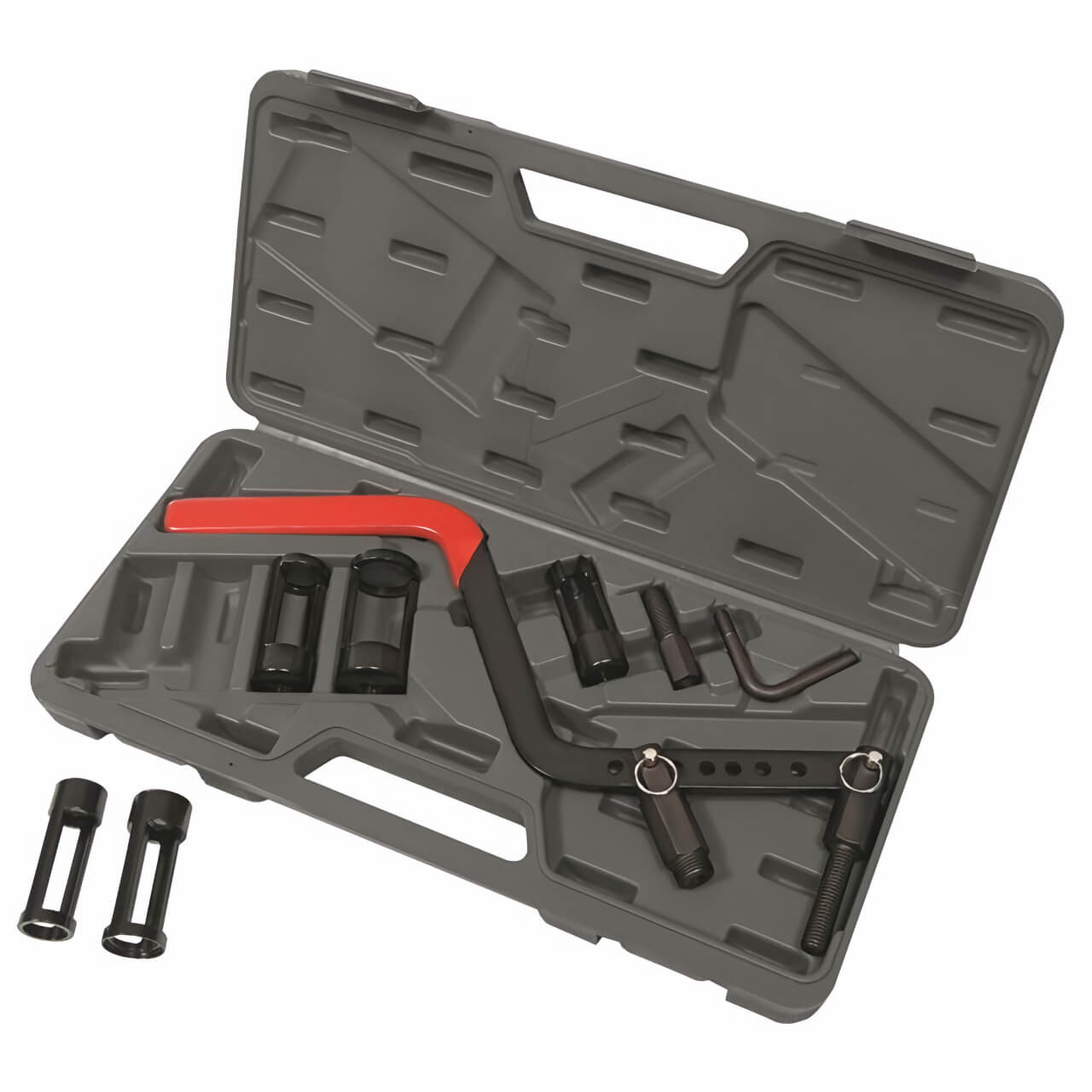

- Description - Short: Universal valve spring compressor eliminates cylinder head removal when replacing valve stem seals, valve springs and collets
Adjustable handle and interchangeable adaptors
Collet sizes: 19–24mm, 19.2–25.5mm, 19.2–26mm, 27.5–33.5mm
- Instructions    Step 1:
Mount the adaptor to a fixed location on the cylinder head
Step 2:
Select the suitable adaptor compatible with the valve retainer and install to the tool main rod
Step 3:
Position the tool main rod above the valve spring to be removed using the correct adjustment hole on the pivot arm
Step 4:
Using the tool lever arm depress the valve spring as required
