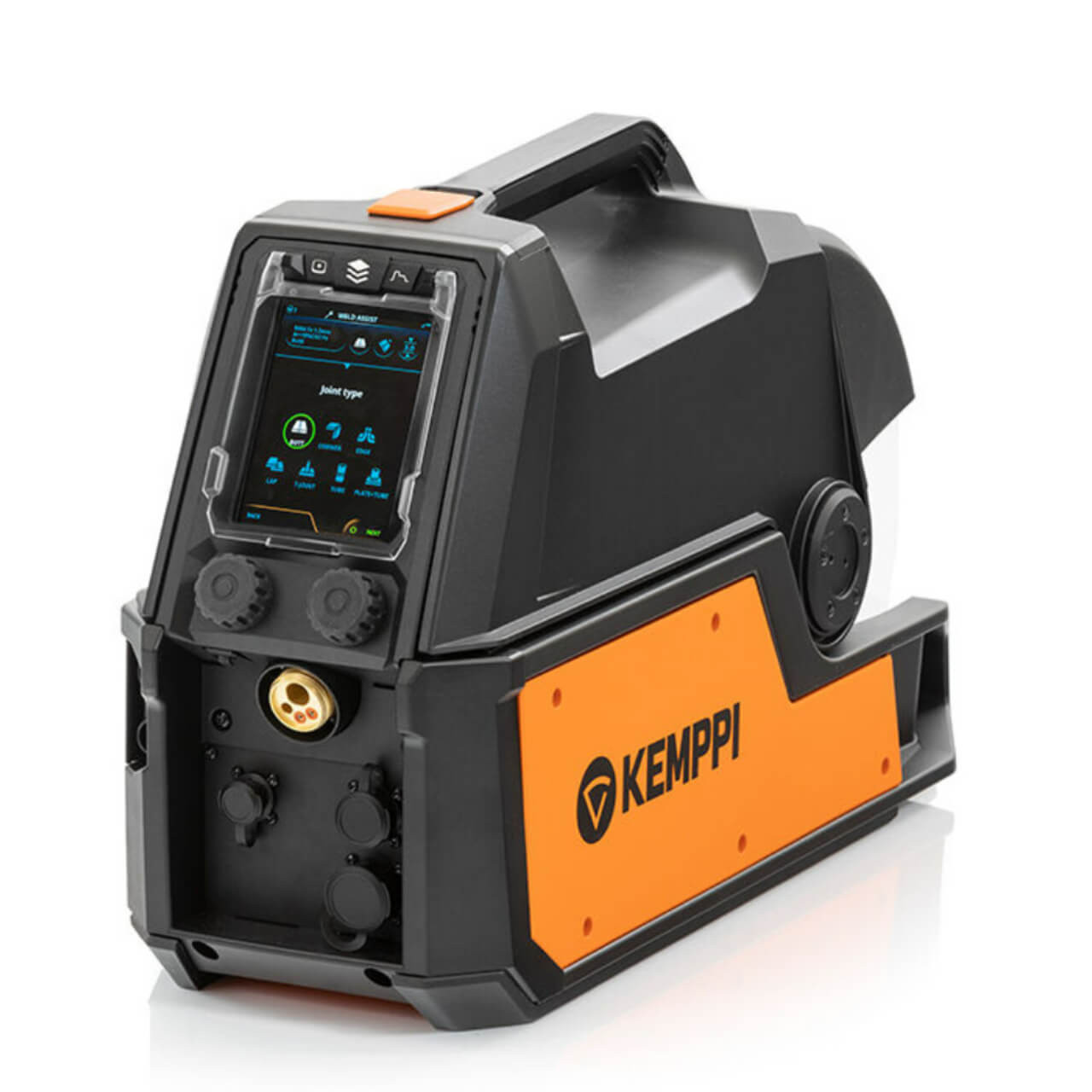

Top-loading wire feeder with a graphical, 5.7" TFT display panel. For synergic and pulse MIG/MAG, TIG, stick (MMA), and gouging. Automatic parameter adjustment with Weld Assist. 4-wheel wire feed mechanism with integrated lighting and a kinetic spool brake, rotameter included as standard. USB port and Bluetooth connectivity. Enables the use of MAX welding processes, Wise welding processes, and SuperSnake GTX sub feeder.
SPECIFICATIONS:
- Wire feed mechanism: 4-roll, single-motor
- Gun connection: Euro
- Filler wires:
- Fe 0.8 ... 2.0 mm
- Ss 0.8 ... 2.0 mm
- Mc/Fc 0.8 ... 2.4 mm
- Al 0.8 ... 2.4 mm
- Wire feed speed: 0.5 ... 25 m/min
- Diameter of feed rolls: 32 mm
- Operating temperature range: -20…+40 °C
- External dimensions LxWxH: 650 x 230 x 410 mm
- Weight (no accessories): 10.9 kg
- Degree of protection: IP23S
- Wire spool weight, max.: 20 kg
- Wire spool diameter, max.: 300 mm
- EMC class: A
- Storage temperature range: -40…+60 °C
- Shielding gas pressure (max): 0.5 MPa
- Welding current, 60 %: 500 A
- Welding current, 100 %: 430 A
