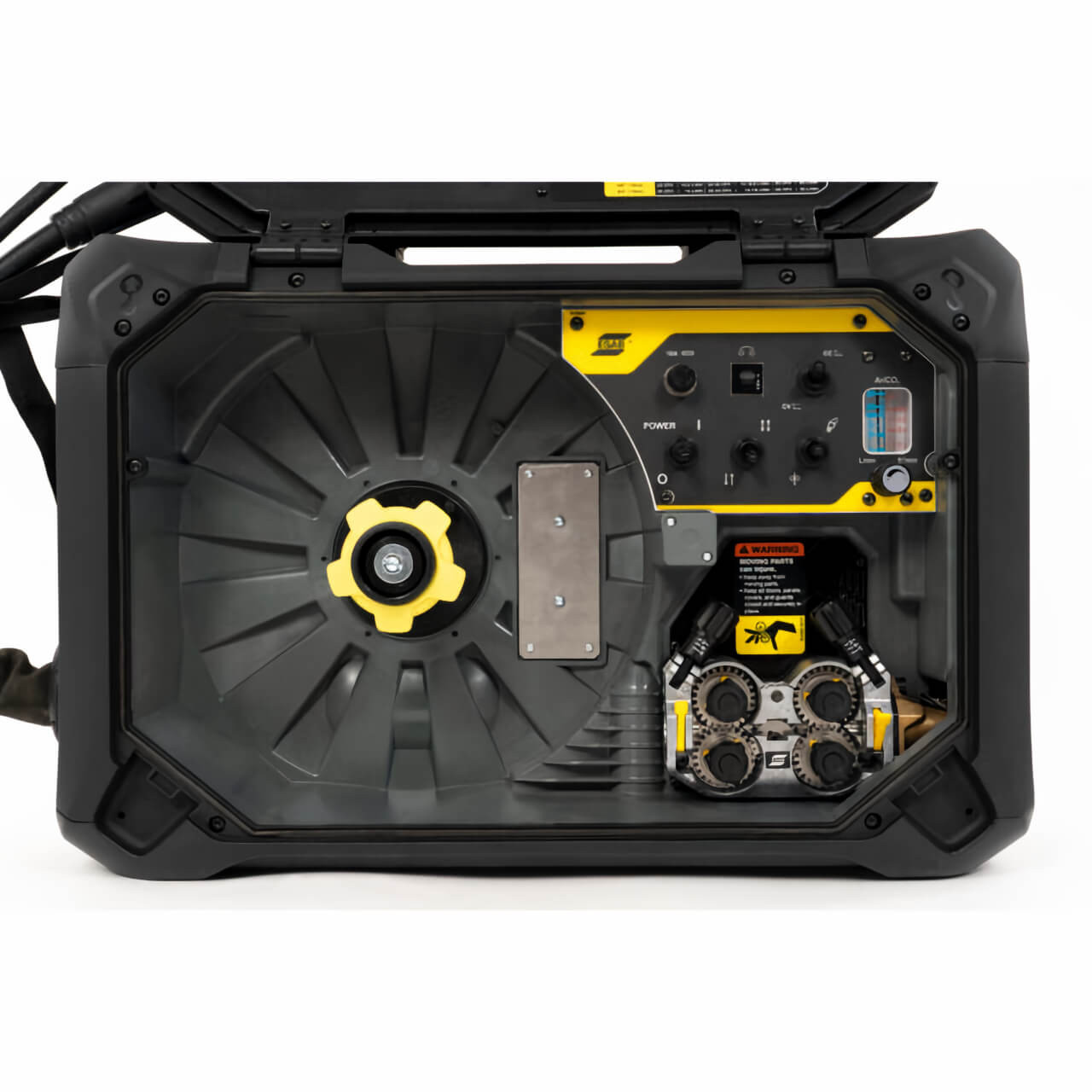

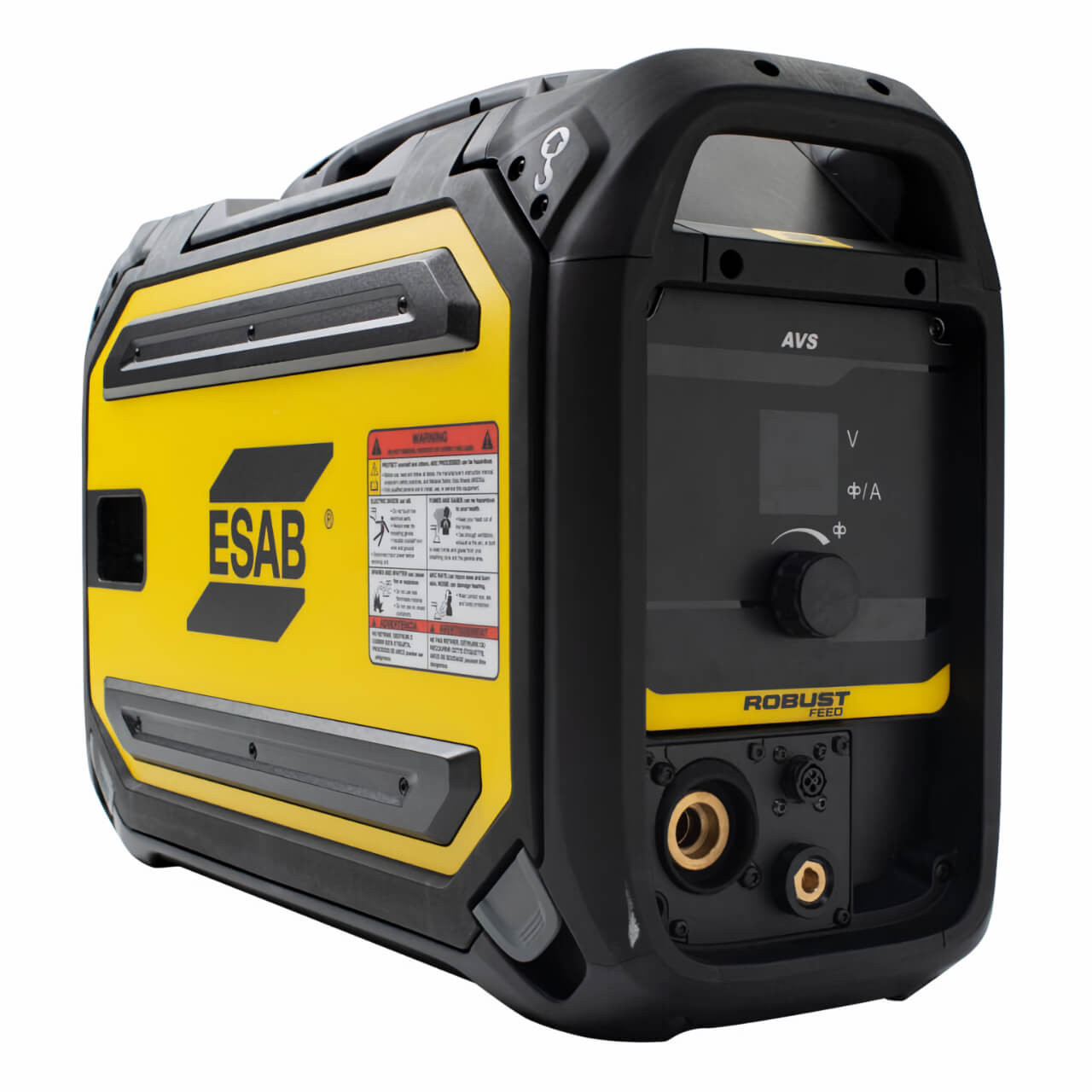

RobustFeed AVS has voltage-sensing feeder, which eliminates the need for a power supply/control cable between the power source and the feeder. The design simplifies cable management in portable applications, eliminating a cable that could potentially get damaged. Voltage-sensing feeder technology also enables the feeder to work with either constant current (CC) or constant voltage (CV) power sources for greater flexibility. With RobustFeed , operators use a single control knob and digital meter on the front panel to adjust wire feed speed at the feeder (but must set voltage at the power source). The RobustFeed AVS has two internal LEDs to illuminate the feeder in dark conditions, 2T (standard) or 4T (trigger lock) control, gas purge, wire jog, CC/CV mode switch and an optional internal gas flow meter protected by the rugged case. Featuring a completely-sealed wire feed compartment that protects the wire and internal components from water splashes in all directions. The seal also keepsout dirt, grinding dust and other particles than can damage feeder components or degrade the wire and contaminate the weld pool. The controls, as well as the power and gas cable connections, are also protected inside the housing. On the outside, the feeder uses a double-wall design that has special zones to provide abrasion and impact resistance, while a reliable strain relief removes cable stress.
FEATURES:
- Compliant to AS 60974.1
- Conforms to the requirements of AS 1674.2
- VRD – Virtually eliminates electric shocks when not welding.
- Fail to safe shutdown if VRD Malfunctions
- Enclosure rated to IP23S
- Outdoors use as outlined in AS 1674.2
- Insulated plastic housing eliminates arc strike hazards on housing
- Maximum electrode size 4.0mm
- Stick MMAW and Lift TIG GTAW
- Digital Readout
- PFC – Power Factor Correction
- Intelligent Fan Control
- 3 Year Limited Warranty
SPECIFICATIONS:
- Input Voltage, Max: 14-100 VDC
- Welding Output:
- 500 A @ 40%
- 450 A @ 60%
- 350 A @100%
- Wire Dimensions:
- Mild Steel: 0.6 – 2.0 mm
- Stainless Steel: 0.6 – 1.6 mm
- Cored Wire: 0.9 – 2.4 mm
- Aluminium: 0.9 – 1.6 mm
- Wire Feed Speed: 1.3 – 25.0 m/min
- Wire Spool Capacity: 20 kg
- Max Spool Diameter: 300mm
- Operating Temperature: -20° to +55°C
- Protection Class: IP44
- Certification Mark (Standards): CE,CSA,RCM,CCC,EAC,IEC
- Dimensions L x W x H, incl. top handle: 595 x 250 x 430 mm
- Weight: 18.37 kg
