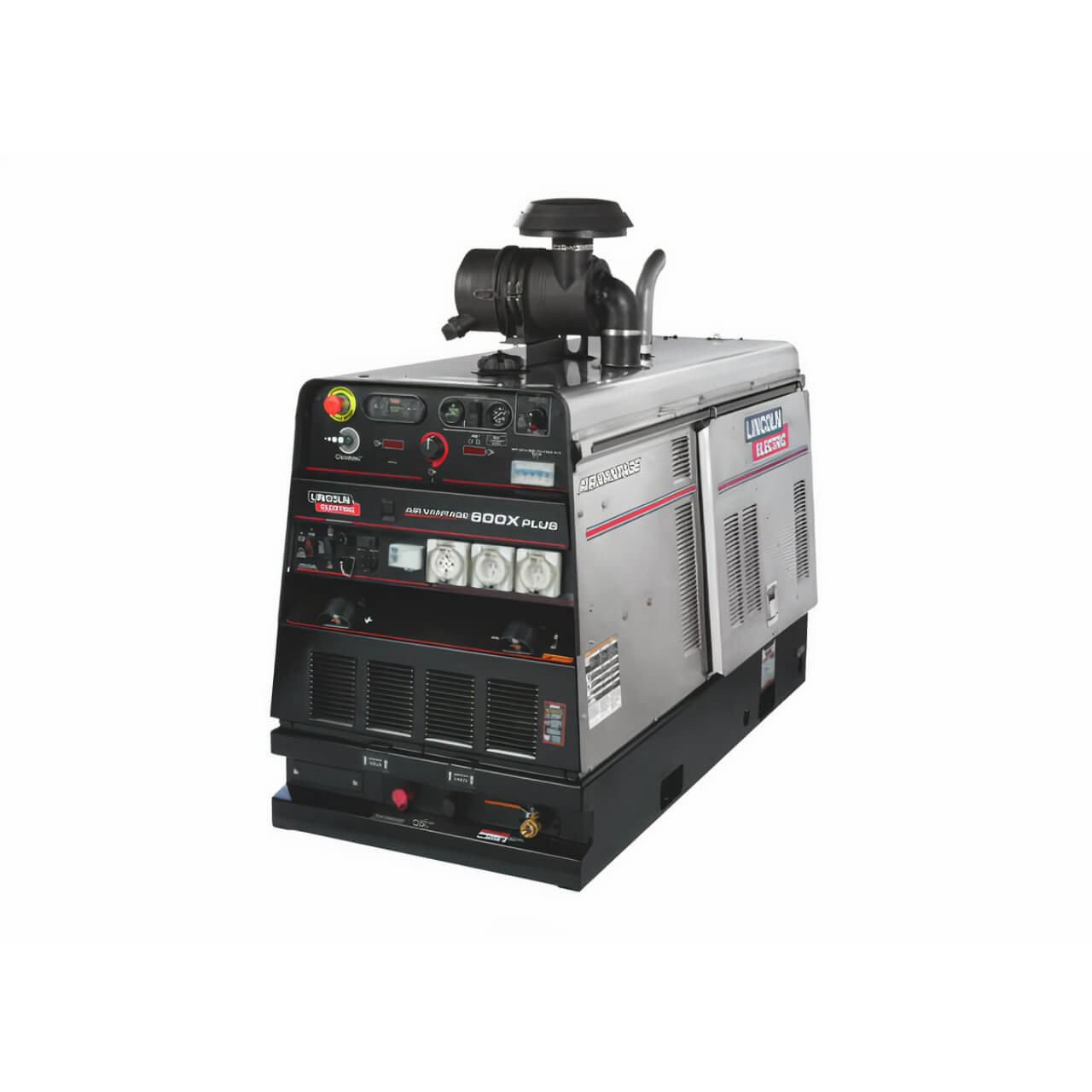

The New Air Vantage 600X Plus - 600A WELDER / 20Kw 50Hz GENERATOR / 60cfm 100psi COMPRESSOR all rolled into one extraordinary machine. Prepare to be amazed by its capabilities as it takes your on-site operations to new heights! With up to 600 amps of DC Multi Process Welding power at your disposal, there's no limit to what you can achieve. Need a reliable source of three-phase power? Look no further! This powerhouse generator can generate up to 20Kw of pure energy to power your operations. It includes a built-in Rotary Air Compressor, ensuring a continuous supply of 100psi air at an impressive 60cfm. Say goodbye to downtime and hello to uninterrupted productivity.
SPECIFICATIONS:
- IEC Rating 525A / 41V / 100% @ 104°F (40°C) @ 60Hz
- Max Rating 600A / 40V / 60% @ 104°F (40°C) @ 60Hz
- Output Range by Mode:
- CC-Stick: 30 – 600 A,
- Downhill Pipe (CC): 40 –350 A,
- Touch Start TIG: 20 – 350 A,
- CV-Wire: 10 – 45 V,
- Arc Gouging: 60 – 600 A
- Open Circuit Voltage: 66 Peak OCV @ 1800 RPM
- Rated Gouging Carbon Diameter: 9.5 mm
- Machines Communication Technology:
- CrossLinc
- ArcLink
- Wire Feeder Supply Voltage:
- 115VAC
- 42VAC
- 40VDC
- Dimensions (H x W x D): 1067 mm x 836 mm x 1753 mm
- Net Weight: 788 kg
APPLICATIONS:
- Construction
- Mining
- Railroad Maintenance
- Construction &; Field Erection
- Heavy Equipment
- Heavy Fabrication
- Maintenance &; Repair
- Marine Fabrication &; Repair
- Railing Industry
- Repair Welding
- Structural Fabrication
- Structural Welding
| Warranty: | 3 Years |
| Weight (Kgs): | 787 |
| Minimum Sale Qty: | 1 |
