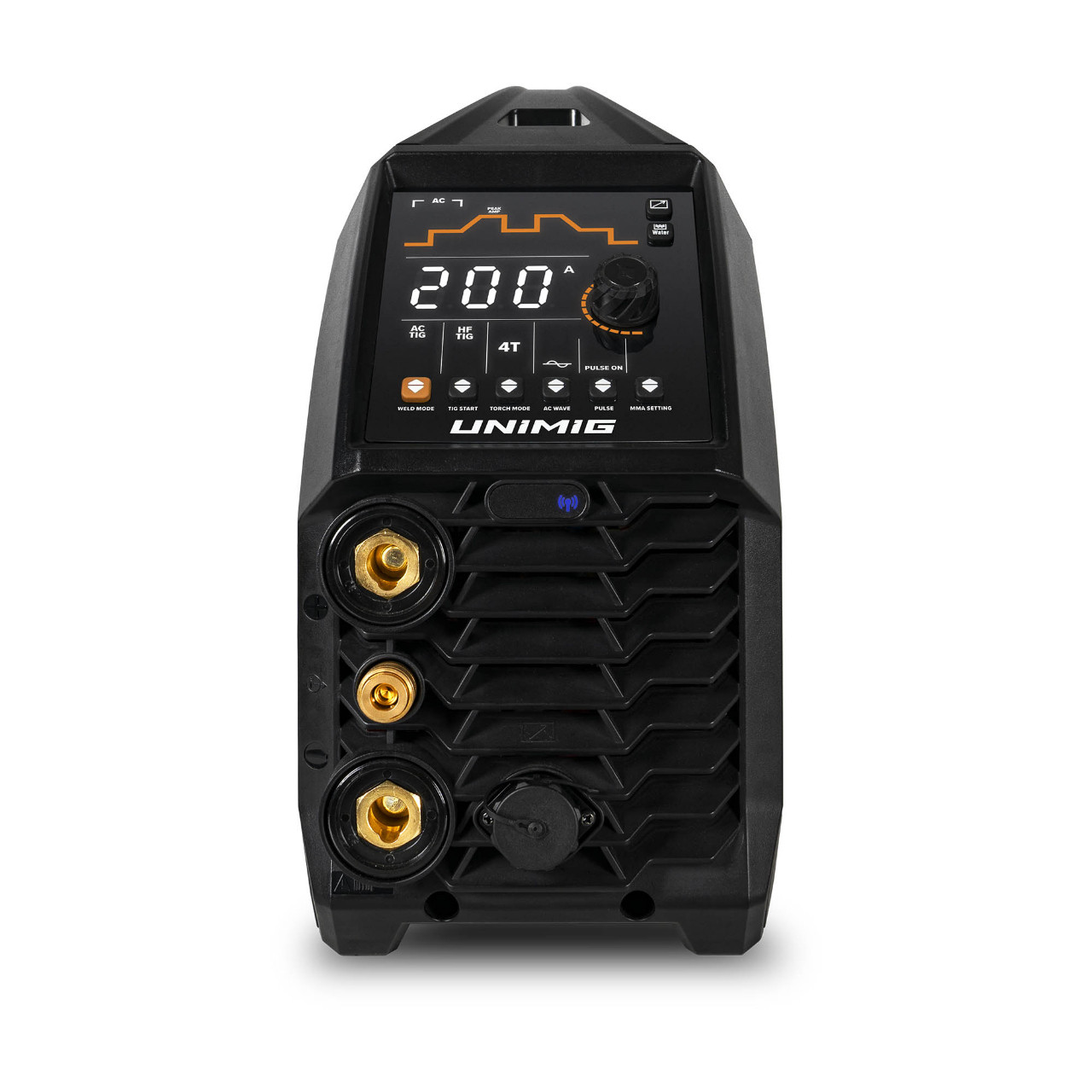

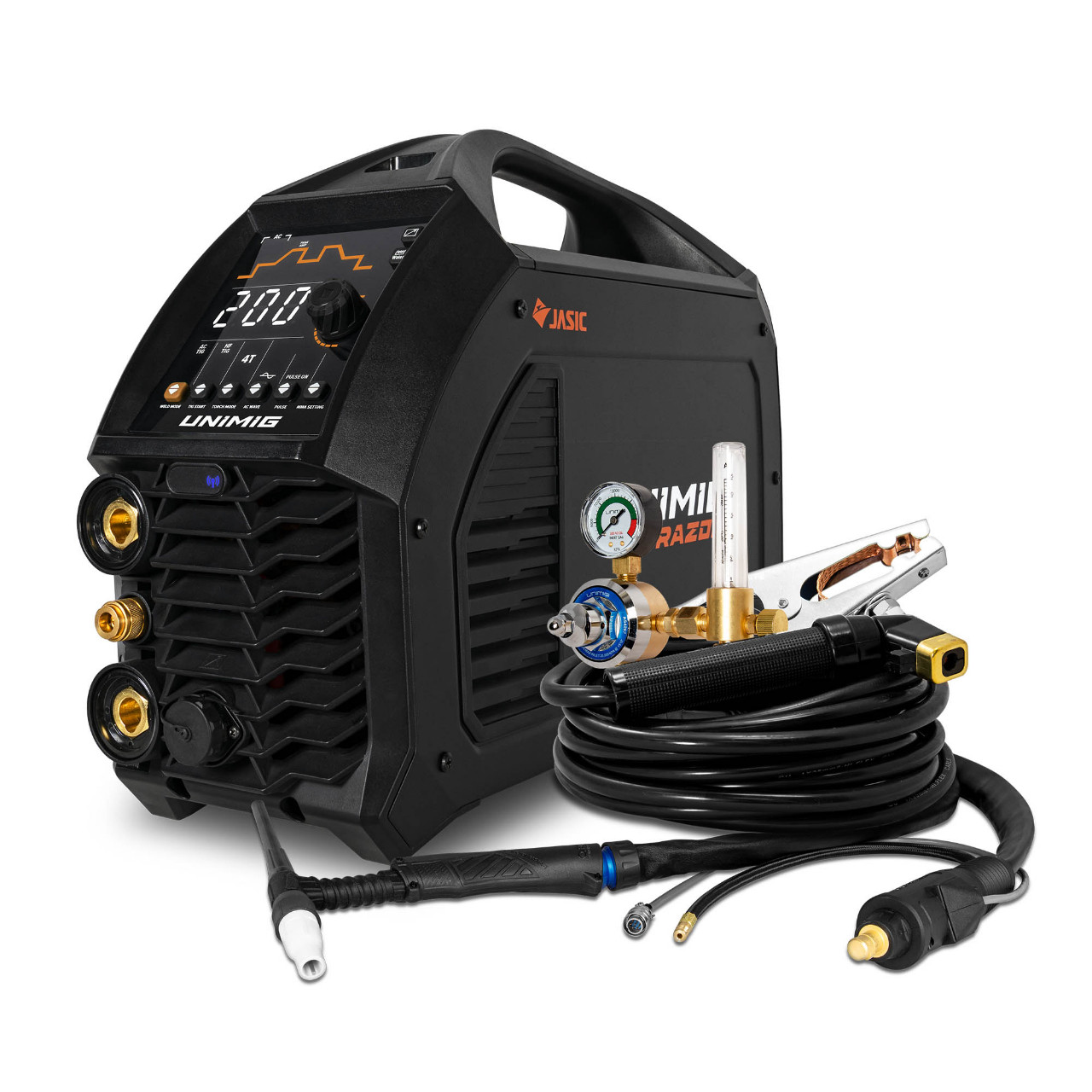

Get incredible results from start to finish with this professional-grade TIG welder.
FEATURES:
- HD Backlit Interface
- Power factor Correction
- 10A Plug
- AC/DC
- High Frequency TIG
- Multiple AC Waveforms
- Mixed AC/DC
- Pulse TIG
- Foot Control Ready
- Smart Fan
- Advanced MMA Features
- Optional Remote Control
TECHNICAL DATA:
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 10 AMP
- Ieff (A): 9.5
- Rated Output: 5A/20.8V - 200A/18V
- No Load Voltage (V): 65v
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 9.0
- Dinse Connectors: 35/50
- Standard: AS/NZ60974-1
- TIG Weld Material type: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- MMA Weld Material type: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years): 5
- Dimensions (mm): 500×170×340 mm
- Weight (kg): 11.7kg
TIG SPECIFICATIONS:
-TIG Arc Ignition Type: High Frequency, Lift Arc
- TIG Process Type: Pulsed AC, Pulsed DC, Mixed AC/DC
- DC TIG Welding Current Range: 5-200A
- AC TIG Welding Current Range: 20-200A
- TIG Duty Cycle @ 40°C:
;- 20% @ 200A
;- 60% @ 115A
;- 100% @ 90A
- TIG Welding Thickness Range: 1-8mm
STICK SPECIFICATIONS:
- STICK Welding Current Range: 20-160A
- STICK Duty Cycle @ 40°C:
;- 15% @ 160A
;- 60% @ 80A
;- 100% @ 62A
- STICK Electrode Range: 2.5-4.0mm
