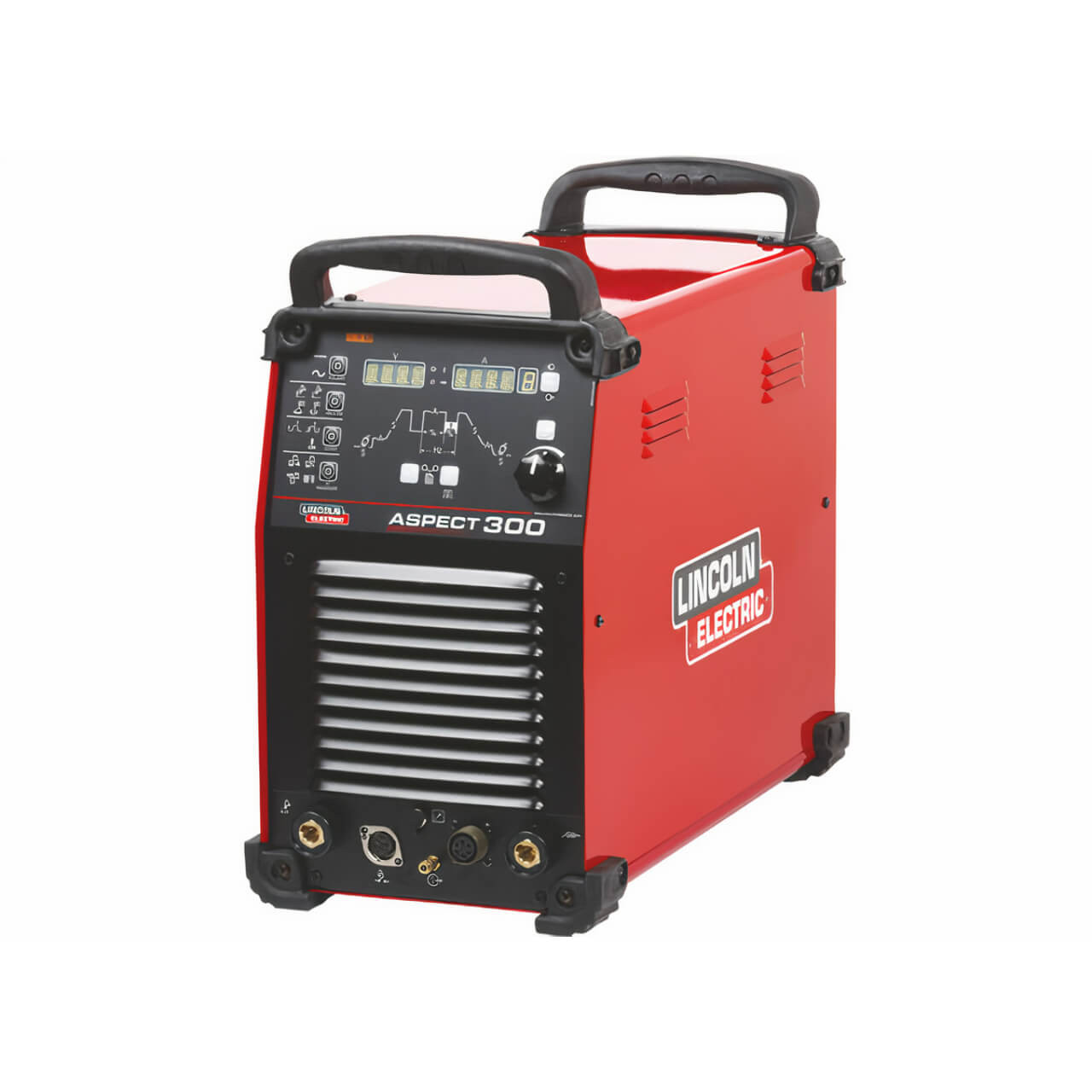

Aspect 300 is an industrial AC/DC TIG welding machine designed and manufactured using the latest inverter digital technology.
FEATURES:
- Advanced waveform technology for the best aluminium welding performance.
- Advanced TIG AC & DC Functions – Four wave shapes, Pulse, adjustable Balance and Offset, innovative and simple control panel, AC auto setting.
- Variable AC frequency (40-400 Hz) for the control of travel speed and penetration.
- Fully functional, user-friendly control panel layout with graph and a numeric display makes it easy to set all welding parameters.
- Cellulosic capability.
- Energy efficient 3 phase buck-boost circuit for energy saving
SPECIFICATIONS:
- Input Current: 32/20A
- Input Hertz: 50/60 Hz
- Input Power: 230/400V/3/50-60 Hz
- Input Phase: 3 ph
- Mode Icon: CC
- Polarity: AC/DC
- Rated Output: 300A/22V@35%, 200A/18V@100%
- Dimensions (H x W x D): 632 mm x 301 mm x 455 mm
- Net Weight: 26 kg
APPLICATIONS:
- General Fabrication
- Maintenance &; Repair
- Structural Fabrication
