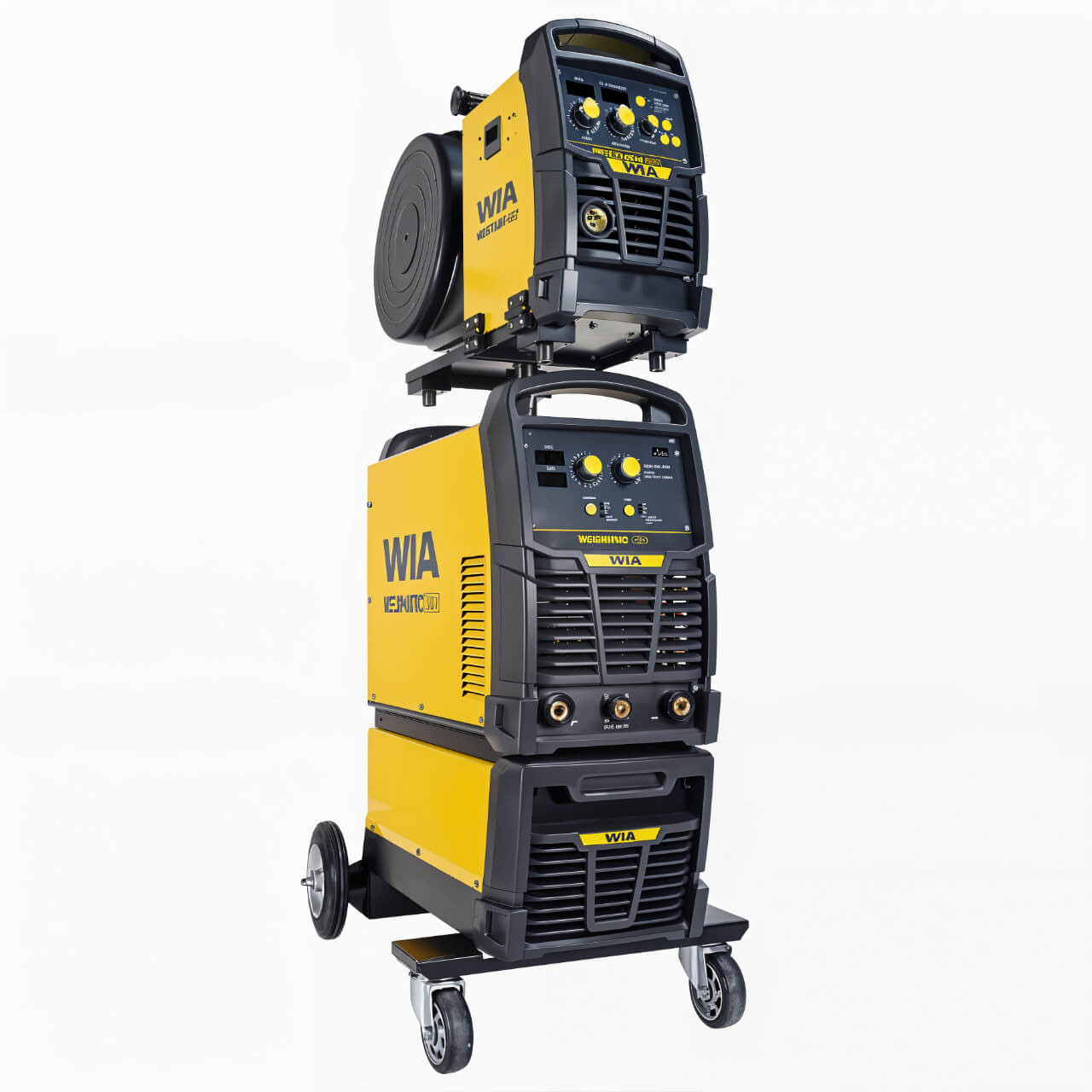

The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG, and Stick welding, it offers optimal weld characteristics that provide high quality results. Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.
FEATURES:
- Powerful, Robust and Built to Perform
- Separate Wire Feeder
- Heavy Duty Four Geared Wire Drive
- Burnback
MACHINE SPECIFICATIONS:
- Primary Voltage: 380/415 VAC - 50/60Hz
- Rated Primary Current: 32 Amps
- Max Primary Current: 40 Amps
- Recommended Generator Power: 35 kVa
- Supply PluG: 32 Amp
- Weldable Materials:Steel, Stainless Steel, Aluminium
MIG SPECIFICATIONS:
- Output Range: 30A/15.5V-500A/39V
- Rated Output @ 40°C (10min):
- 500A/39V @ 60%
- 387A/33.4V @ 100%
- Wire Size Range: 0.6/0.8/0.9/1.2/1.6mm
- Material Thickness Range: Welds up to 12mm+ steel plate, single pass
STICK SPECIFICATIONS:
- Current Range: 25A/21V-500A/40V
- Rated Output @ 40°C (10min):
- 500A/40V @ 60%
- 387A/35.5V @ 100%
TIG SPECIFICATIONS:
- Current Range: 15A/10.6V-500A/30V
- Rated Output @ 40°C (10min)
- 500A/30V @ 60%
- 387A/25.5V @ 100%
PACKAGE INCLUDES:
- Euro Gun Cable: 3.6m with Bernard Centerfire 0.9mm Tip
- Work Lead: 10m
- Interconnecting Leads: 10m
- Industrial Twist Lock Electrode Holder: 3m
- Gas Regulator
- Drive Rollers: 0.9/1.2, 1.2/1.6mm V Groove &; 0.9/1.2, 1.2/1.6mm Knurled
- W67 4 Roll Drive Wire Feeder
