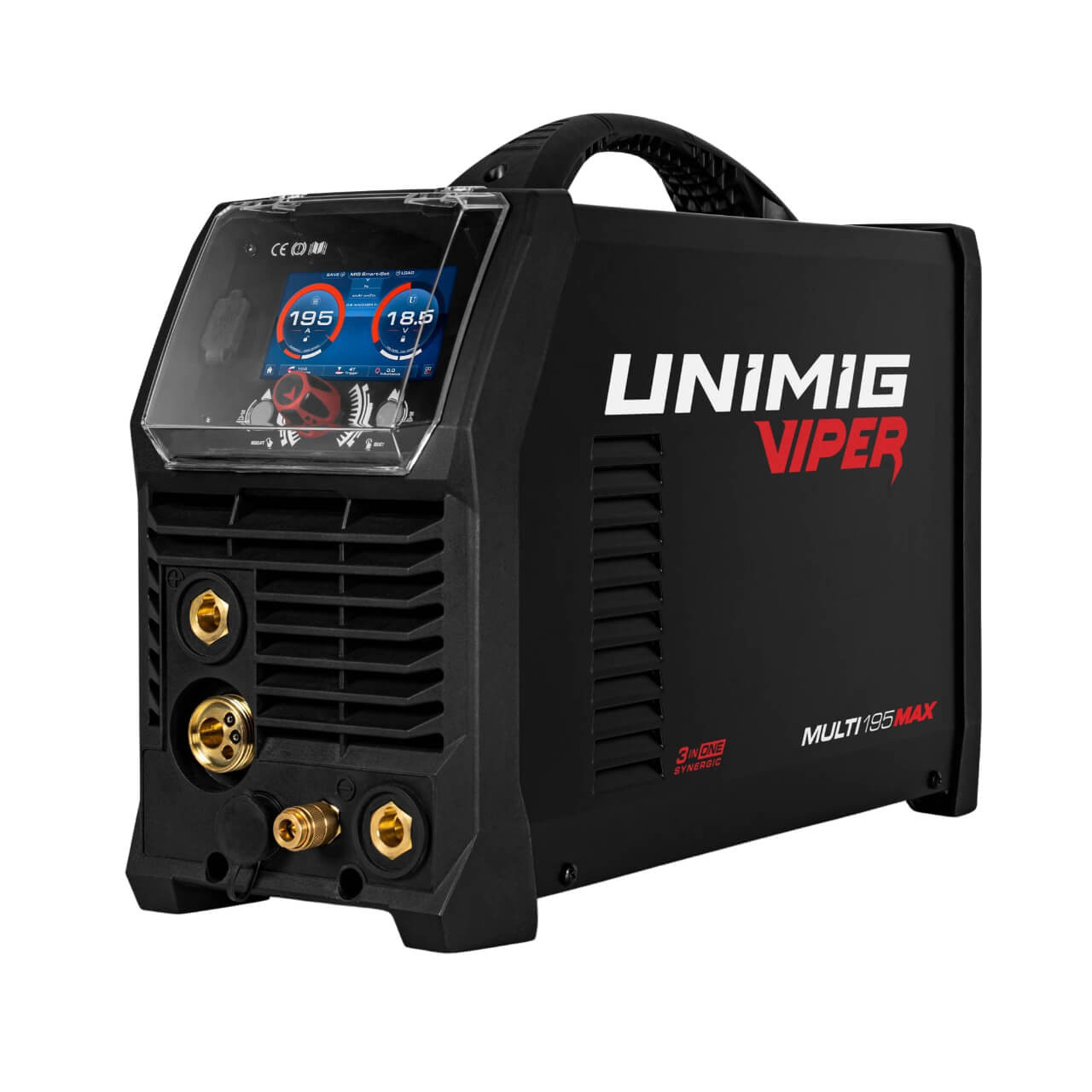

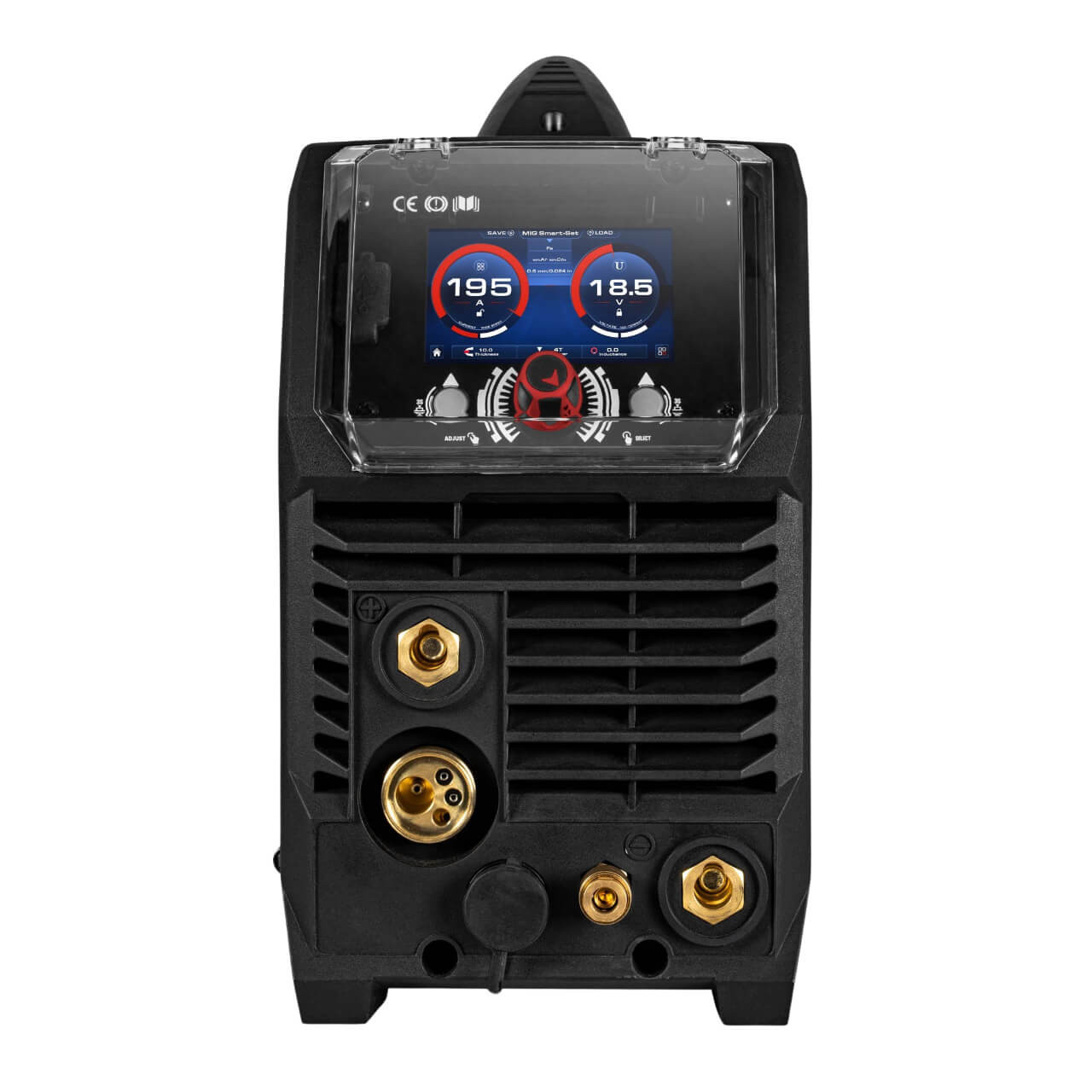

The VIPER MULTI 195 MAX is now out, the latest addition to our VIPER range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.
FEATURES:
- DC High-Frequency TIG
- 10A Plug
- Power Factor Correction (PFC)
- MIG Smart-Set
- Complete MIG Weld Cycle Control
- TIG Smart-Set
- Foot Control Ready
- Heat Control Trigger (HCT) Mode
- Pulse MMA
- Digital Geared Wire Drive
MACHINE SPECIFICATIONS:
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 10 AMP
- Ieff (A): 8.9
- RATED OUTPUT: 25A/15V - 195A/23.8V
- NO LOAD VOLTAGE (V): 67
- PROTECTION CLASS: IP21
- INSULATION CLASS: H
- MINIMUM GENERATOR (kVA): 8.5
- DINSE CONNECTOR: 35/50
- STANDARD: AS/NZS 60974.1
- SUITABLE MATERIAL: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
- WARRANTY (Years): 3
MIG SPECIFICATIONS:
- MIG WELDING CURRENT RANGE: 25-195A
- MIG DUTY CYCLE @ 40°C: 15% @ 195A / 60% @ 98A / 100% @ 76A
- MIG WIRE SIZE RANGE: 0.6-1.0mm
- MIG WIRE SPOOL SIZE: 1kg / 5kg
- MIG WELDING THICKNESS RANGE: 1-8mm
- DRIVE ROLLER SIZE: 30/22
TIG SPECIFICATIONS:
- TIG FUNCTION TYPE: DC High-Frequency
- TIG WELDING CURRENT RANGE: 5-195A
- TIG DUTY CYCLE @ 40°C: 30% @ 195A / 60% @ 138A / 100% @ 107A
- TIG WELDING THICKNESS RANGE: 1-8mm
STICK SPECIFICATIONS:
- STICK WELDING CURRENT RANGE: 5-195A
- STICK DUTY CYCLE @ 40°C: 15% @ 195A / 60% @ 98A / 100% @ 76A
- STICK ELECTRODE RANGE: 2.5-4.0mm
- STICK WELDING THICKNESS RANGe: 2-10mm
GENERAL SPECIFICATIONS:
- DIMENSIONS (mm): 470×190×350mm
- WEIGHT (kg): 11.8kg
| Minimum Sale Qty: | 1 |
| Maximum Welding Output: | 180 Amps |
| Primary Input Voltage: | 240V 1 Phase |
| Warranty: | 2 Years |
