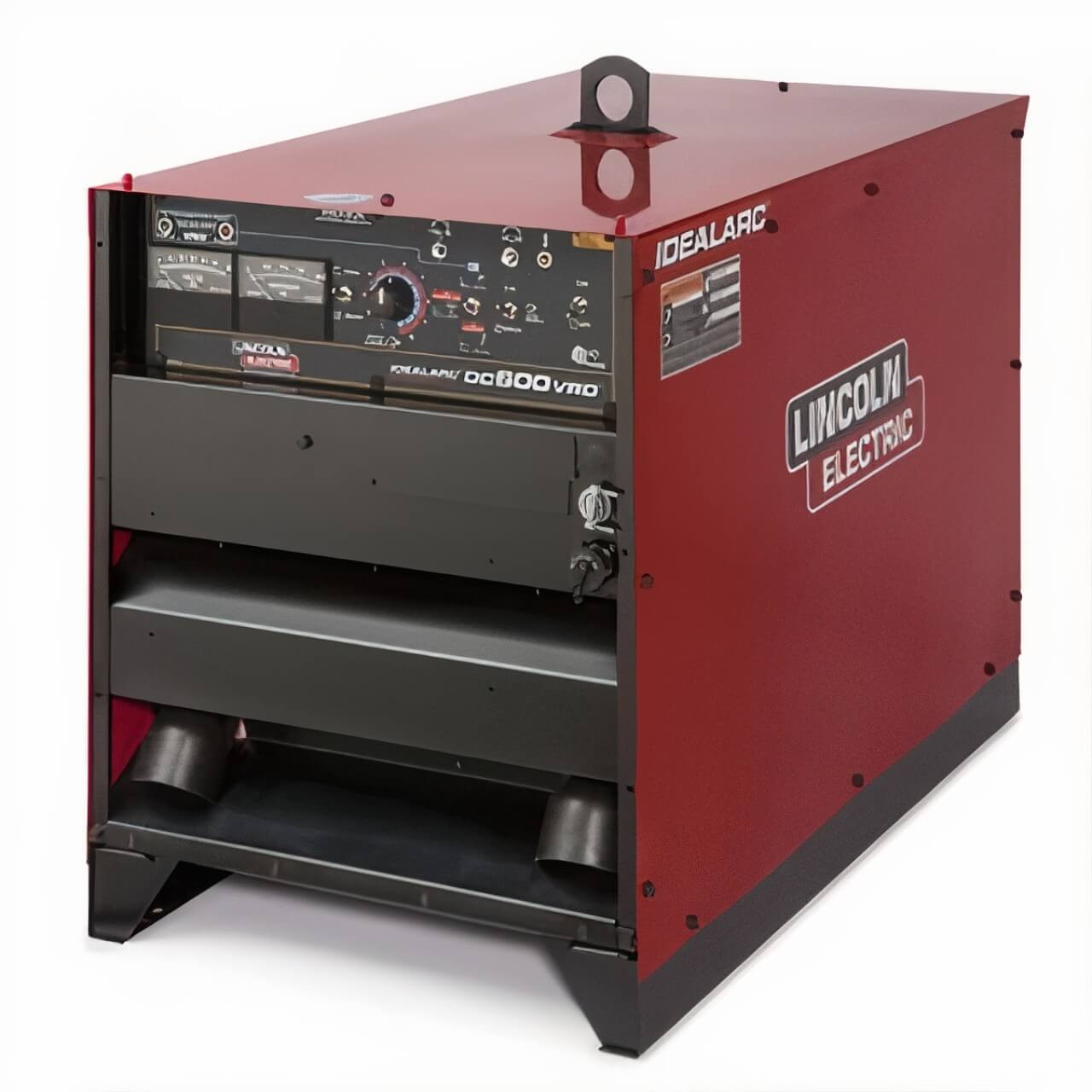

Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree - it’s hard to go wrong with an Idealarc® 600. The VRD™ (Voltage Reduction Device™) provides an additional measure of safety, especially when working in an environment with a higher risk of electrical shock such as wet areas and hot, humid, sweaty conditions. The VRD™ reduces the OCV (open circuit voltage) at the welding output terminals while not welding to less than 2 volts DC. Indicator lights will also signal when output voltage during welding is above or below 30 volts DC.
FEATURES:
- Full range output voltage control for easy operation and precise control.
- VRD™ (Voltage Reduction Device™) reduces OCV (open circuit voltage) when not welding for added safety (select models).
- Standardanalog ammeter and voltmeter
- Mode switch for selecting desired output characteristics.
- 115V, 15 amps, duplex auxiliary power receptacle – (60 Hz models) makes it easy to power lights, grinders and other shop tools at your work station.
SPECIFICATIONS:
- Input Voltage: 380-415V
- Input Current: 67-62A
- Input Hertz: 50,50/60,60
- Input Power: 380-415/3/50/60
- Input Phase: 3
- Output Range:
- CV:70A/13V - 780A/44V
- CC:90A/24V - 780A/44V
- Rated Output:
- 600A/44V/100%
- 680A44V/60%
- Typical Applications:
- Heavy fabricatuon
- Structural fabrication
- Shipbuilding
- Dimensions (H x W x D): 781 mm x 567 mm x 988 mm
- Net Weight: 237 kg
