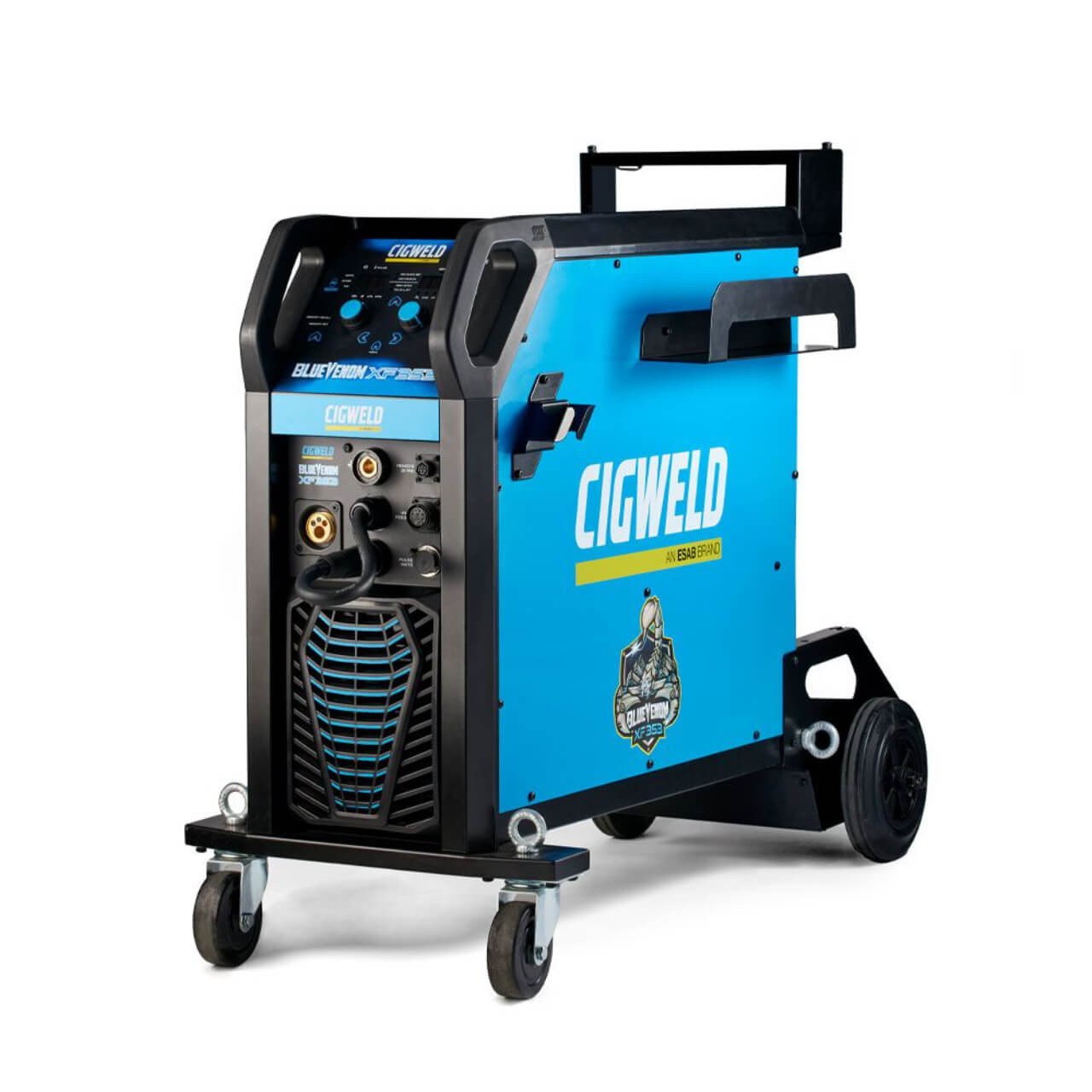

The new BlueVenom XF353 is a 3-in-1 multiprocess welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station.
FEATURES:
- 4x Roll Wire Drive system
- 300mm Diameter Spool Capability and includes 200mm spool adapter
- MIG Gun holder and cable management bracket
- Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
- 4-Point Lifting Lugs for safer and convenient maneuverability

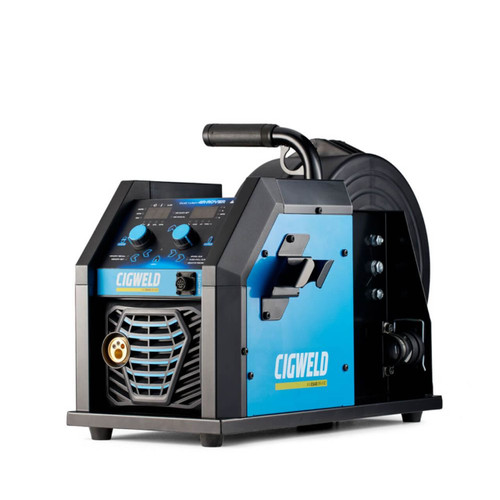

- Locking brackets for 4R-Rover to avoid wirefeeder sliding
- MIG Adjustable Wire Burnback
- MIG Crater Fill function in 2T & 4T
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature

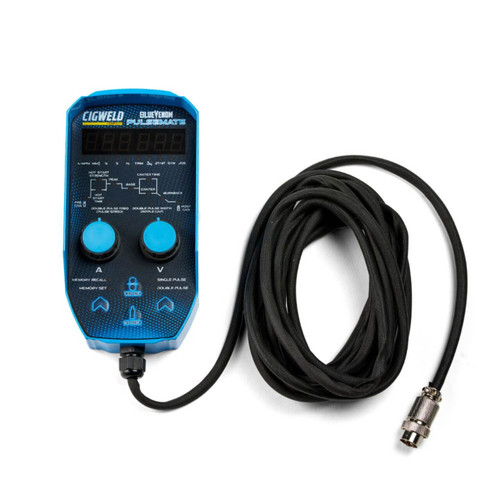

- MIG PulseMate , Spool Gun & Push-Pull Gun Compatible
- STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
- STICK Hot Start
- STICK Arc Force
- TIG Foot Control Compatible
- TIG Dial Remote Torch Compatible
SPECIFICATIONS:
- Cooling: Fan Cooled
- Number of Phases: Three Phase
- Voltage: 400 VAC ± 15%
- Frequency: 50/60Hz
- Welding Current Range (MIG mode): 30-350A
- Welding Current Range (Stick mode): 20-300A
- Welding Current Range (TIG DC Lift): 20-350A
- Voltage MIG Weld Mode: 86V
- Voltage (VRD On) Stick Weld Mode: <;35V
- Voltage (VRD Off) Stick Weld Mode: 85V
- Effective Input Current (l1eff): 12.4 Amps
- Maximum Input Current (l1max): 19.6 Amps
- Minimum Three Phase Generator Requirement for Maximum Output: 16kVA @ 0.8PF
- Dimensions (L x W x H): 1075mm x 460mm x 865mm
- Weight: 62kg
INCLUDES:
- BlueVenom XF353 Power Source
- MIG Gun BZ36 “Style”, 4m, Euro
- Work Clamp 3OOA with 4m Lead
- Twistlock Electrode Holder 4OOA with 4m Lead
- Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
- Gas Regulator/Flowmeter
- Quick Connect Gas Hose 3m
- Operating Manual
