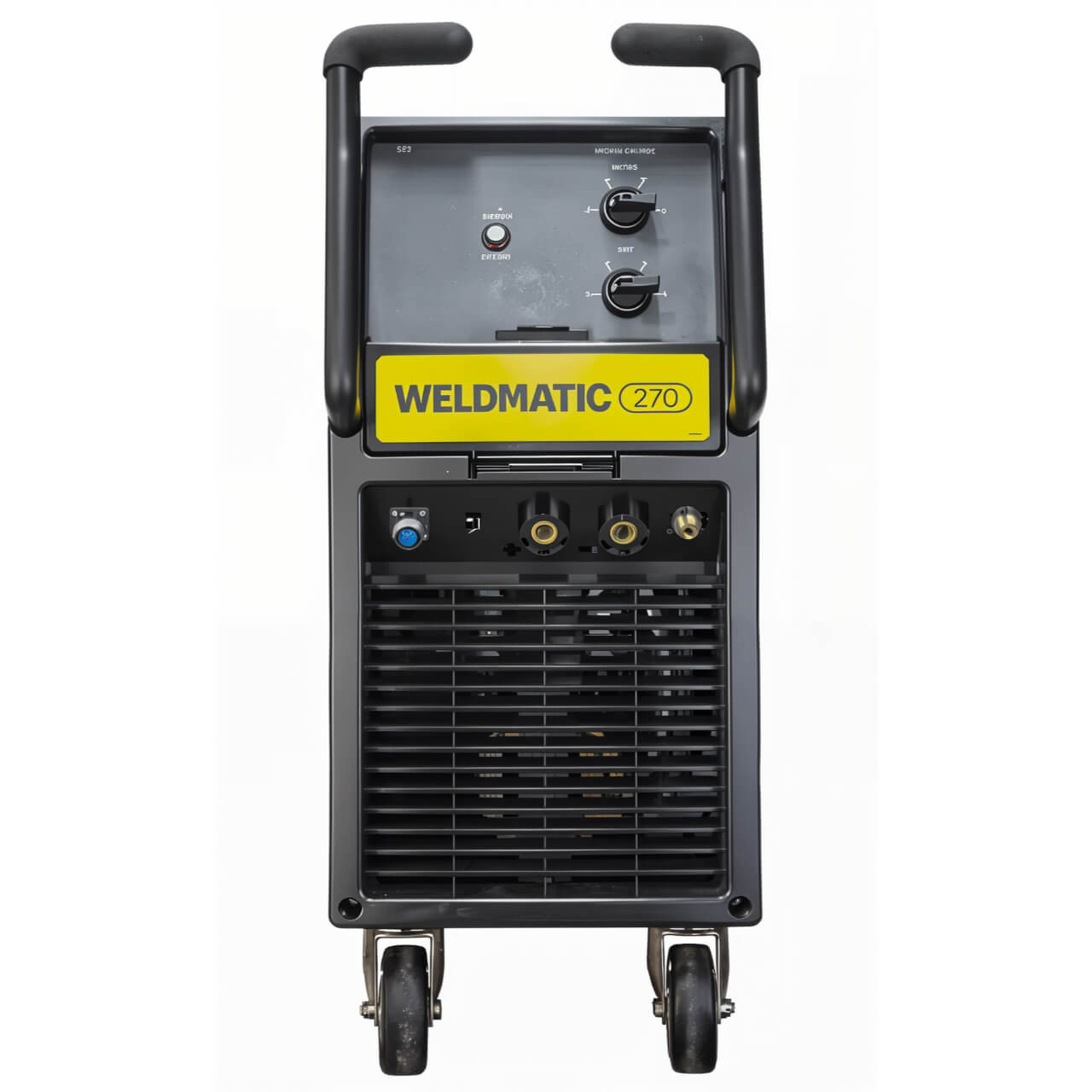

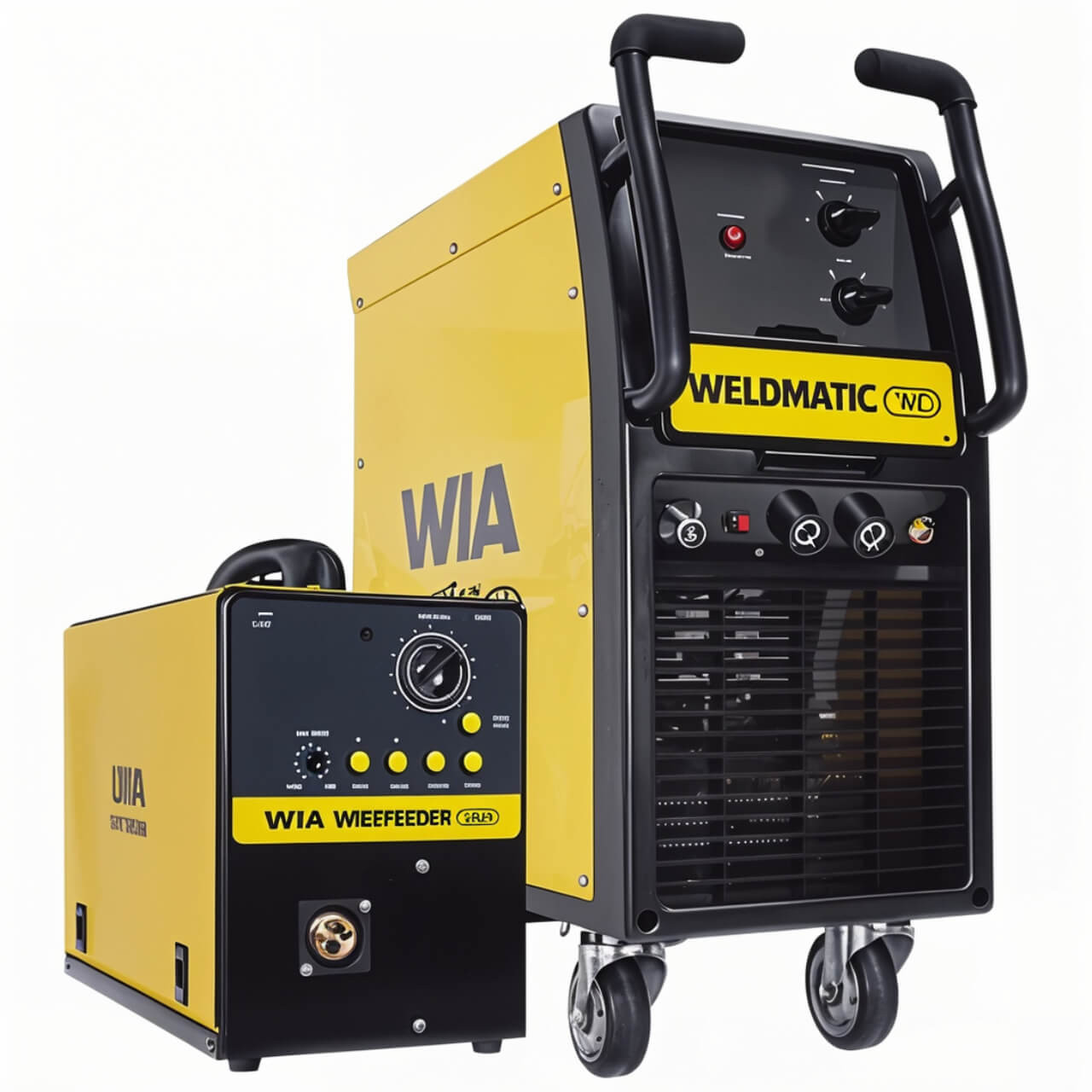

The Weldmatic 270 is the most powerful WIA single phase MIG welding machine. Ideal for light to medium industrial fabrication and rural workshops, the Weldmatic 270 is packed with professional features you’d expect in an industrial 3 phase MIG machine. The Weldmatic 270 is for serious welders who want results. Featuring a Fan-on-Demand™ cooling system, the Weldmatic 270 improves efficiency, reduces maintenance and provides a safer working environment. Built with quality components and manufactured with 3 years warranty, the Weldmatic 270 can withstand tough Australian conditions.
FEATURES:
- Fan-on-Demand™ Cooling Fan
- Separate Wire Feeder

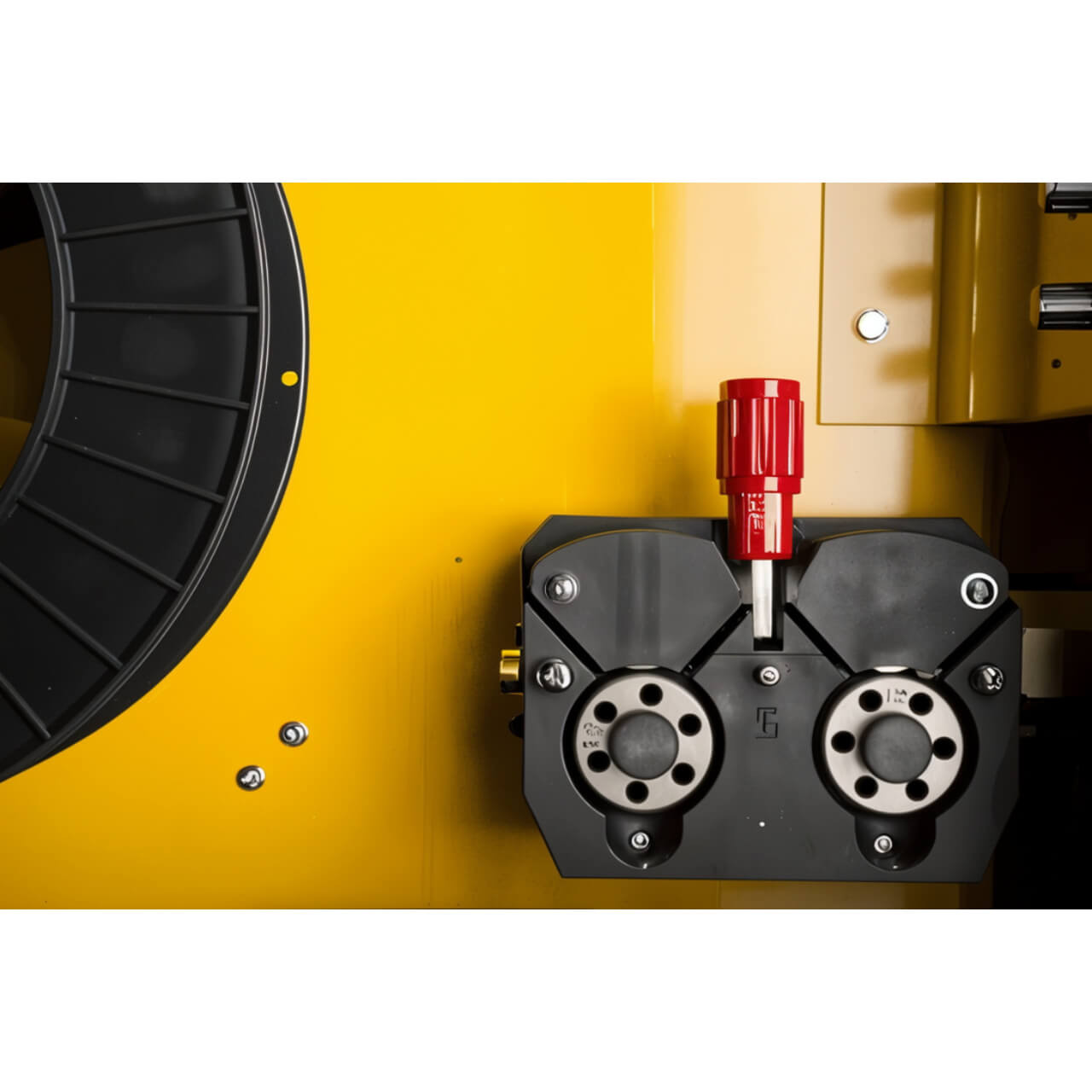

- Heavy Duty Four Geared Wire Drive
- Burnback
MACHINE SPECIFICATIONS:
- Primary Voltage: 240 VAC-50/60Hz
- Rated Primary Current: 25.3 Amps
- Max Primary Current: 56 Amps
- Recommended Generator Power: 13.5 kVa
- Supply Plug: 15 Amp
- Weight: 115kg
MIG SPECIFICATIONS:
- Output Range: 30A/15.5V-270A/27.5V
- Rated Output @ 40°C (10min):
- 270A/27.5V @ 20%
- 150A/21.5V @ 60%
- 120A/20V @ 100%
- Wire Size Range: 0.6/0.8/0.9/1.2mm
- Material Thickness Range: Welds up to 8mm steel plate, single pass
PACKAGE INCLUDES:
- W64-1 Roll Drive Wire Feeder
- Euro Gun Cable: 3m
- Work Lead: 5m
- Interconnecting Leads: 10m
- Gas Regulator
- Tips: 0.6/0.8/0.9/1.2mm
- Drive Rollers: 0.6/0.8mm V Groove; 0.9/1.2 Knurled (Gasless)
