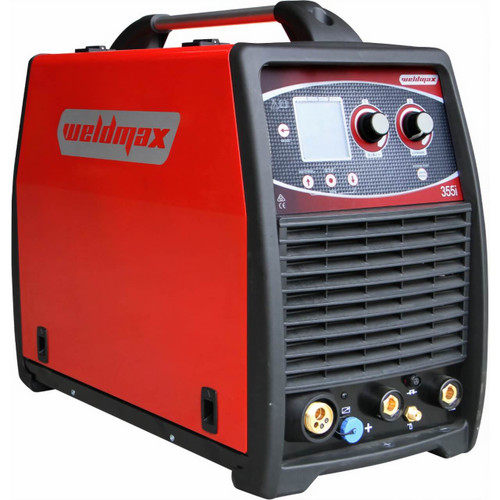

WELDMAX 355I 415V MULTI-PROCESS INVERTER WELDER - COMPLETE DOUBLE PULSE PACKAGE
The New Frontier of Welding Intelligence!
Superior Arc Control!
Fast and Easy Setting!

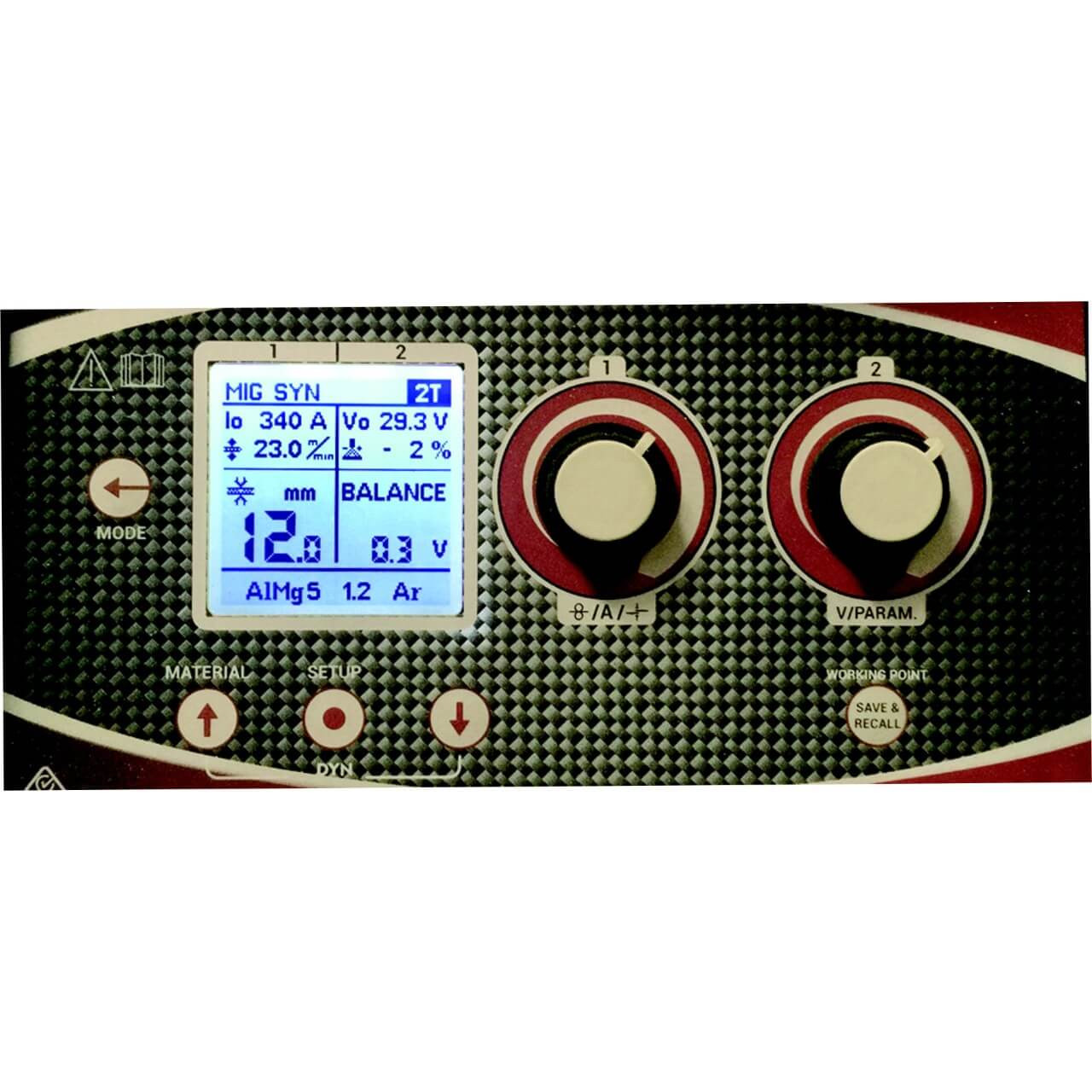

Microprocessor-controlled, multi-process compact welding inverter suitable for MIG/MAG (manual, synergic, pulsed, double-pulsed and root welding), TIG-DC (continuous and pulsed) and MMA welding. Large 3.3” display shows all welding parameters, making setting easy and intuitive. In synergic/pulsed MIG/MAG welding, the microprocessor ensures easy and quick setting of programs guaranteeing optimal arc stability and high welding quality.
MIG-MAG features – continuous - pre-set synergic curves – storage of custom welding settings - 2T/4T, spot function selection - pre-post gas time regulation – electronic reactance, soft start, burn back time, hotstart, slope down, crater filler.
TIG DC features – lift arc - continuous and pulsed welding - 2T/4T - Current, current up/down slope regulation.
MMA features – antisticking - adjustable hot start and arc force.
Ideal for professional use, workshop, metallic furnishings fabrication, industrial and automotive body-shop, shipbuilding and piping. Thanks to an excellent arc control you can obtain high quality deposition. Possibility to expand the power source with optional function: single pulse, double pulse, root welding. You can also install optional interface to use Spool-gun or Push-pull torch, with analogue or digital control. The user can save and recall more than 200 working points and store them in a customised JOB LIST, with easy update thanks to USB interface.
The New Frontier of Welding Intelligence!
Superior Arc Control!
Fast and Easy Setting!
STANDARD: MIG/MAG Synergic - MIG/MAG Manual - Gouging - TIG DC Lift - MMA
Microprocessor-controlled, multi-process compact welding inverter suitable for MIG/MAG (manual, synergic, pulsed, double-pulsed and root welding), TIG-DC (continuous and pulsed) and MMA welding. Large 3.3” display shows all welding parameters, making setting easy and intuitive. In synergic/pulsed MIG/MAG welding, the microprocessor ensures easy and quick setting of programs guaranteeing optimal arc stability and high welding quality.
MIG-MAG features – continuous - pre-set synergic curves – storage of custom welding settings - 2T/4T, spot function selection - pre-post gas time regulation – electronic reactance, soft start, burn back time, hotstart, slope down, crater filler.
TIG DC features – lift arc - continuous and pulsed welding - 2T/4T - Current, current up/down slope regulation.
MMA features – antisticking - adjustable hot start and arc force.
Ideal for professional use, workshop, metallic furnishings fabrication, industrial and automotive body-shop, shipbuilding and piping. Thanks to an excellent arc control you can obtain high quality deposition. Possibility to expand the power source with optional function: single pulse, double pulse, root welding. You can also install optional interface to use Spool-gun or Push-pull torch, with analogue or digital control. The user can save and recall more than 200 working points and store them in a customised JOB LIST, with easy update thanks to USB interface.
| Welding Current Range: | 30 - 350 Amps |
| No Load Voltage: | 60 V |
| MIG Wire Diameter Range: | 0.8 - 1.6 mm |
| Rated Output MMA: | 100% @ 280 Amps |
| Maximum Welding Output: | 350 Amps |
| Primary Input Voltage: | 415V 3 Phase |
| Dimensions (mm): | 840 x 390 x 630 |
| Duty Cycle 40°C MIG: | 100% @ 280 Amps |
| Weight (Kgs): | 36 Kgs |
| Minimum Sale Qty: | 1 |
| In Stock: | No |
Custom Field
Inner Qty 1
Welding Current Range 30 - 350 Amps
No Load Voltage 60 V
MIG Wire Diameter Range 0.8 - 1.6 mm
Sales Unit EA
Wire Item false
Estimated Lead Time 3-5 days
Brand Weldmax
On Sale Item false
Rated Output MMA 100% @ 280 Amps
Price Always false
ns_id 17830
item_type _inventoryItem
Shipping Class NON DG
Maximum Welding Output 350 Amps
Primary Input Voltage 415V 3 Phase
Dimensions (mm) 840 x 390 x 630
Duty Cycle 40°C MIG 100% @ 280 Amps
Weight (Kgs) 36 Kgs
Minimum Sale Qty 1
In Stock No
