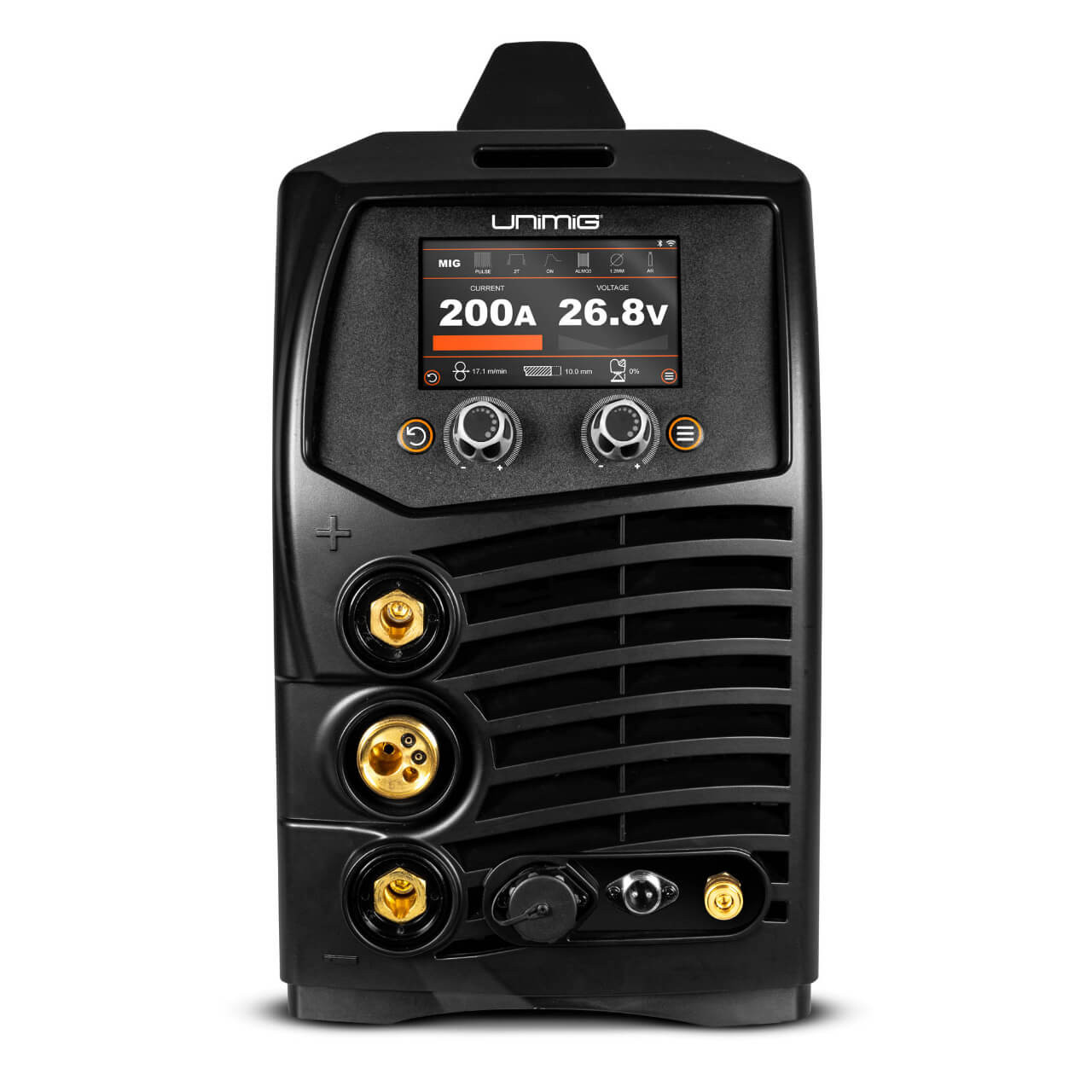

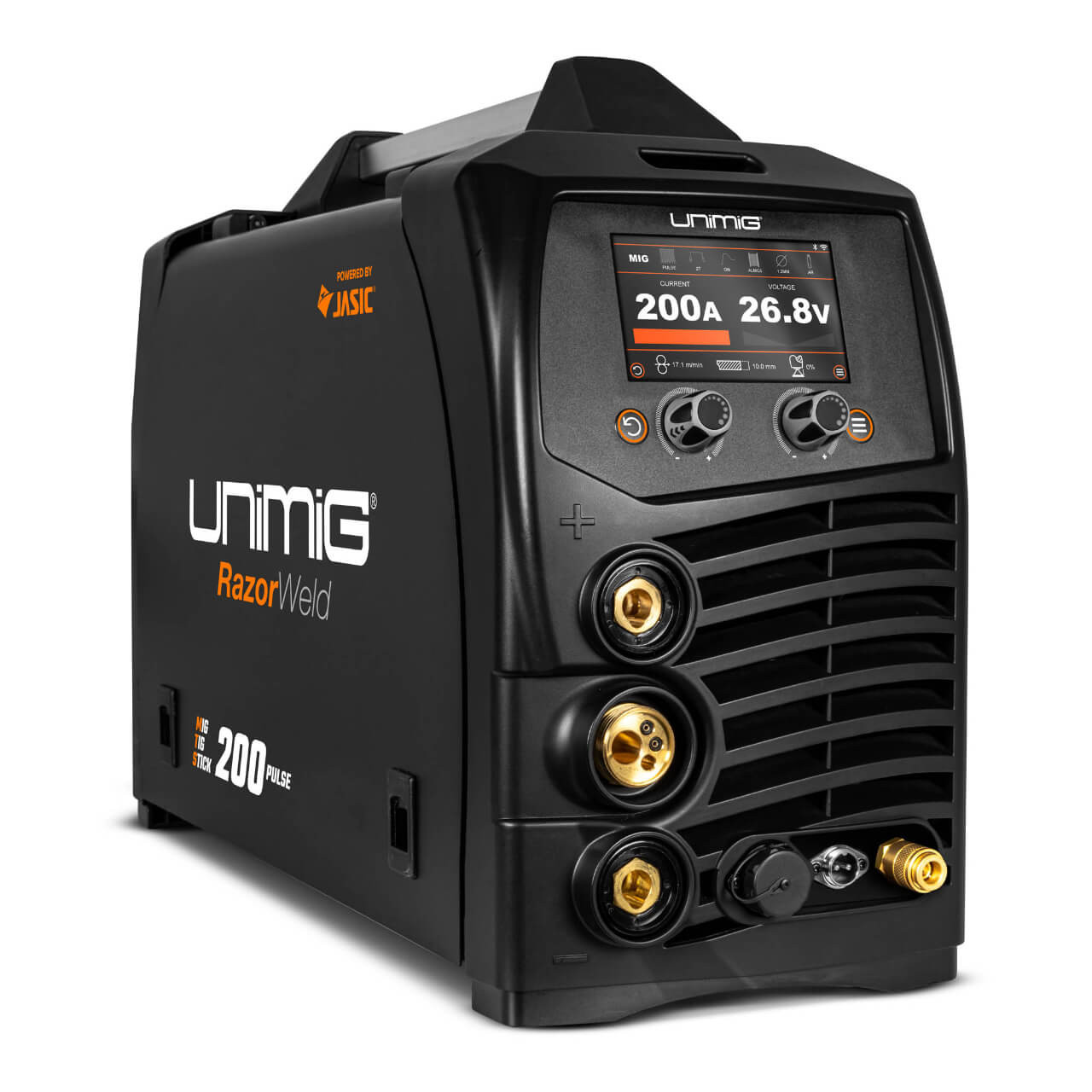

The all-new RAZOR 200 PULSE has arrived. As our latest innovation in pulse MIG, this machine comes filled with revolutionary technology across the board. Whether it’s MIG, pulse MIG, double pulse MIG, High Frequency TIG, pulse TIG or STICK – you name it, the RAZOR 200 PULSE can handle it. Get everything pulse MIG has to offer on a 15 amp plug.
FEATURES:
- SINGLE & DOUBLE PULSE MIG: REDUCES THE HEAT AND MINIMISES SPATTER, WITHOUT COMPROMISING PENETRATION.
- 100+ SYNERGIC PROGRAMS: JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.
- 5” LCD TOUCH SCREEN: THE LARGE TOUCH SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE.
- DIGITAL MIG TORCH: ADJUST YOUR AMPS, CURRENT AND VOLTAGE RIGHT ON THE MIG TORCH ITSELF.

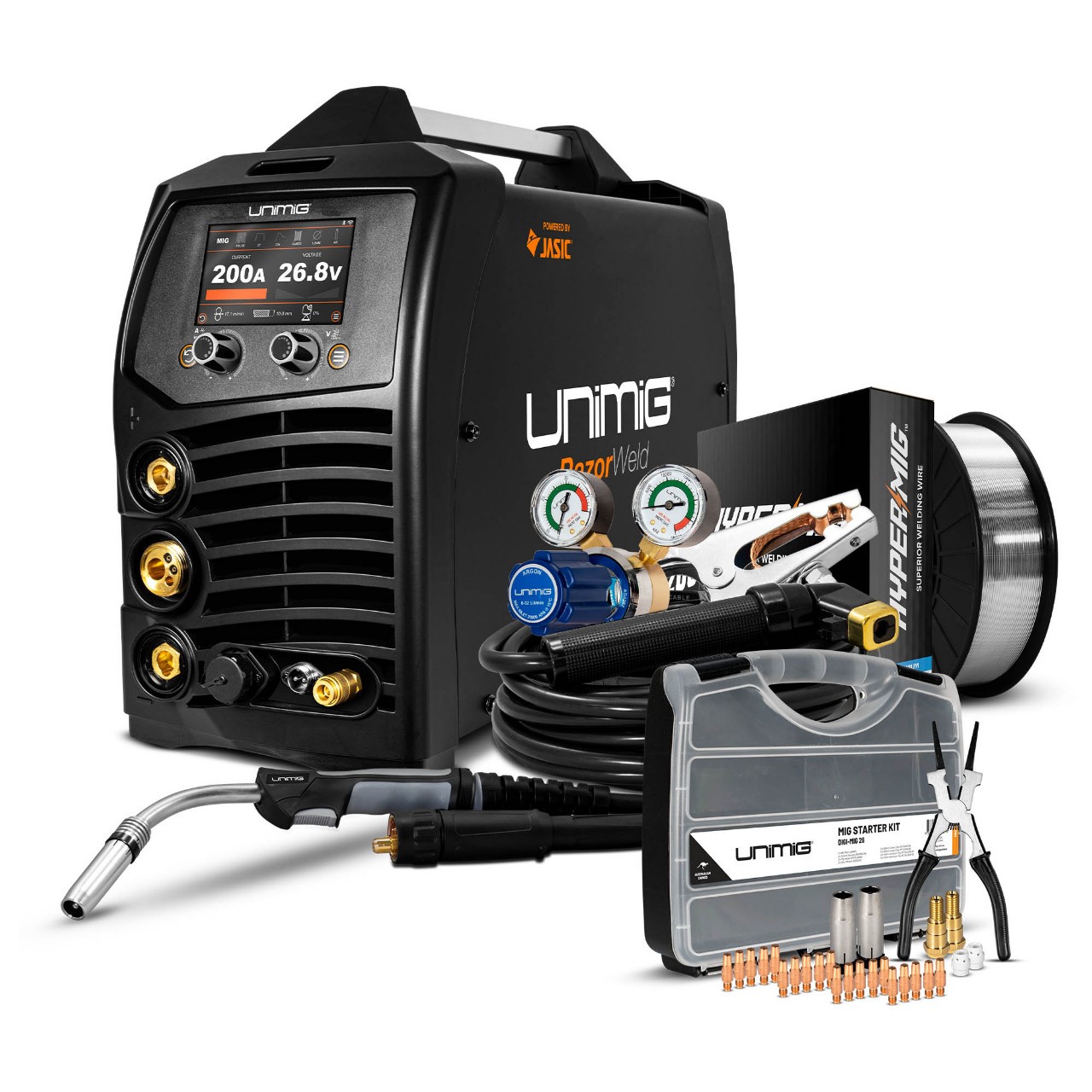

PACKAGE CONTENTS:
- RAZOR™ 200 PULSE MIG/TIG/STICK Welder
- 3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner
- 3m Twist Lock Electrode Holder
- 3m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Gas Hose Complete with fittings
- Operating Manual
- 2kg 1.2mm 5356 HYPERARC Aluminium Wire
- DM26 Consumable Starter Kit
MACHINE SPECIFICATIONS:
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 15 AMP
- Ieff (A): 14.9
- RATED OUTPUT: 40A/16V-200A/24V
- NO LOAD VOLTAGE (V): 77
- PROTECTION CLASS: IP23S
- INSULATION CLASS: H
- MINIMUM GENERATOR (kVA): 11.0
- DINSE CONNECTOR: 35/50
- STANDARD: AS/NZ60974-1
- SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- WARRANTY (Years): 3
SPECIFICATIONS:
- MIG WELDING CURRENT RANGE: 40-200A
- MIG DUTY CYCLE @ 40°C: 15% @ 200A, 60% @ 101A, 100% @ 78A
- MIG WIRE SIZE RANGE: 0.6-1.2mm
- MIG WIRE SPOOL SIZE: 100mm / 200mm
- MIG WELDING THICKNESS RANGE: 1-10mm
- DRIVE ROLLER SIZE: 30/22
- TIG FUNCTION TYPE: High-Frequency
- TIG WELDING CURRENT RANGE: 5-200A
- TIG DUTY CYCLE @ 40°C: 20% @ 200A, 60% @ 116A, 100% @ 90A
- TIG WELDING THICKNESS RANGE: 1-8mm
- STICK WELDING CURRENT RANGE: 20-180A
- STICK DUTY CYCLE @ 40°C: 15% @ 180A, 60% @ 91A, 100% @ 70A
- STICK ELECTRODE RANGE: 2.5-4.0mm
- STICK WELDING THICKNESS RANGE: 2-12mm
- ARC FORCE: 0-100%
MACHINE FEATURES:
- WIRE DRIVE: 4 Geared
- VRD: Yes
- BURNBACK ADJUSTMENT: Yes
- WIRE INCH: Yes
- INDUCTANCE CONTROL: Yes
- THERMAL OVERLOAD PROTECTION: Yes
FEATURES:
- SINGLE & DOUBLE PULSE MIG: REDUCES THE HEAT AND MINIMISES SPATTER, WITHOUT COMPROMISING PENETRATION.
- 100+ SYNERGIC PROGRAMS: JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.
- 5” LCD TOUCH SCREEN: THE LARGE TOUCH SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE.
- DIGITAL MIG TORCH: ADJUST YOUR AMPS, CURRENT AND VOLTAGE RIGHT ON THE MIG TORCH ITSELF.
PACKAGE CONTENTS:
- RAZOR™ 200 PULSE MIG/TIG/STICK Welder
- 3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner
- 3m Twist Lock Electrode Holder
- 3m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Gas Hose Complete with fittings
- Operating Manual
- 2kg 1.2mm 5356 HYPERARC Aluminium Wire
- DM26 Consumable Starter Kit
MACHINE SPECIFICATIONS:
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 15 AMP
- Ieff (A): 14.9
- RATED OUTPUT: 40A/16V-200A/24V
- NO LOAD VOLTAGE (V): 77
- PROTECTION CLASS: IP23S
- INSULATION CLASS: H
- MINIMUM GENERATOR (kVA): 11.0
- DINSE CONNECTOR: 35/50
- STANDARD: AS/NZ60974-1
- SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- WARRANTY (Years): 3
SPECIFICATIONS:
- MIG WELDING CURRENT RANGE: 40-200A
- MIG DUTY CYCLE @ 40°C: 15% @ 200A, 60% @ 101A, 100% @ 78A
- MIG WIRE SIZE RANGE: 0.6-1.2mm
- MIG WIRE SPOOL SIZE: 100mm / 200mm
- MIG WELDING THICKNESS RANGE: 1-10mm
- DRIVE ROLLER SIZE: 30/22
- TIG FUNCTION TYPE: High-Frequency
- TIG WELDING CURRENT RANGE: 5-200A
- TIG DUTY CYCLE @ 40°C: 20% @ 200A, 60% @ 116A, 100% @ 90A
- TIG WELDING THICKNESS RANGE: 1-8mm
- STICK WELDING CURRENT RANGE: 20-180A
- STICK DUTY CYCLE @ 40°C: 15% @ 180A, 60% @ 91A, 100% @ 70A
- STICK ELECTRODE RANGE: 2.5-4.0mm
- STICK WELDING THICKNESS RANGE: 2-12mm
- ARC FORCE: 0-100%
MACHINE FEATURES:
- WIRE DRIVE: 4 Geared
- VRD: Yes
- BURNBACK ADJUSTMENT: Yes
- WIRE INCH: Yes
- INDUCTANCE CONTROL: Yes
- THERMAL OVERLOAD PROTECTION: Yes
