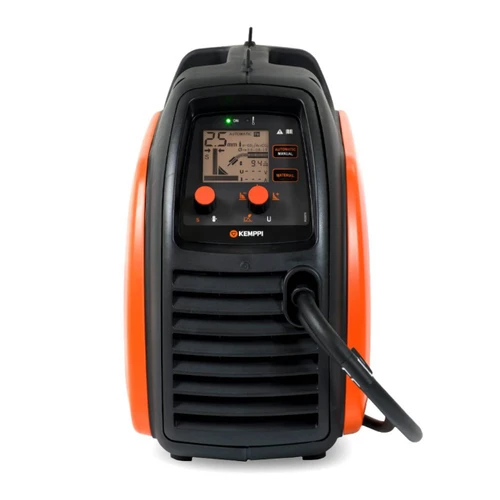

The Kemppi MinarcMig 190 Auto features automatic and manual mode set-ups as well as an adaptive arc regulation system to ensure precise welding quality and accurate ignition. Simplify the welding process – just take MinarcMig, select the material type and the plate thickness, and start welding. It is compatible with various materials, including steel, stainless steel, aluminium, and CuSi brazing filler wires. This little giant delivers portable MIG/MAG welding power, offering 190 amps at a 35% duty cycle from a 16A, 1-phase mains supply. The ready-to-weld MinarcMig 190 Auto MIG/MAG welding machine comes with the new Flexlite GC MIG welding torch, which includes integrated cable bending support and an ergonomic gun handle.
INCLUDES:
- MinarcMig MIG Gun - 3m
- Wire liner 0.6-1.0 / 3350 3m Ø 4.7/1.5 Steel, MMG
- Earth cable 25mm² - 3m
- Feed roll 0.6-0.8 /1.0 MinarcMIG
- Gas hose D6 - 4.5m
- Carrying strap
SPECIFICATIONS:
- Connection voltage 1~ 50/60 Hz: 240V
- Welding range: 20A/15V | 190A/26V
- Output 20% ED: 190 A
- Output 60% ED: 140 A
- Output 100% ED: 100 A
- Open circuit voltage: 70-75V
- Wire feed mechanism: 2-roll, single-motor
- Wire spool weight, max: 5kg
- Wire spool diameter, max: 200mm
- Mains fuse: 15A
- Shielding gas pressure (max): 0.5 MPa
- External dimensions L x W x H: 450 x 227 x 368mm
- Weight (no accessories): 14.2kg
- Degree of protection: IP23
- Standards: IEC 60974-1, -5, -10, IEC 61000-3-12, AS 60974.1
- EMC class: A
- Operating temperature range: -20 to 40°C
- Storage temperature range: -40 to 60°C
