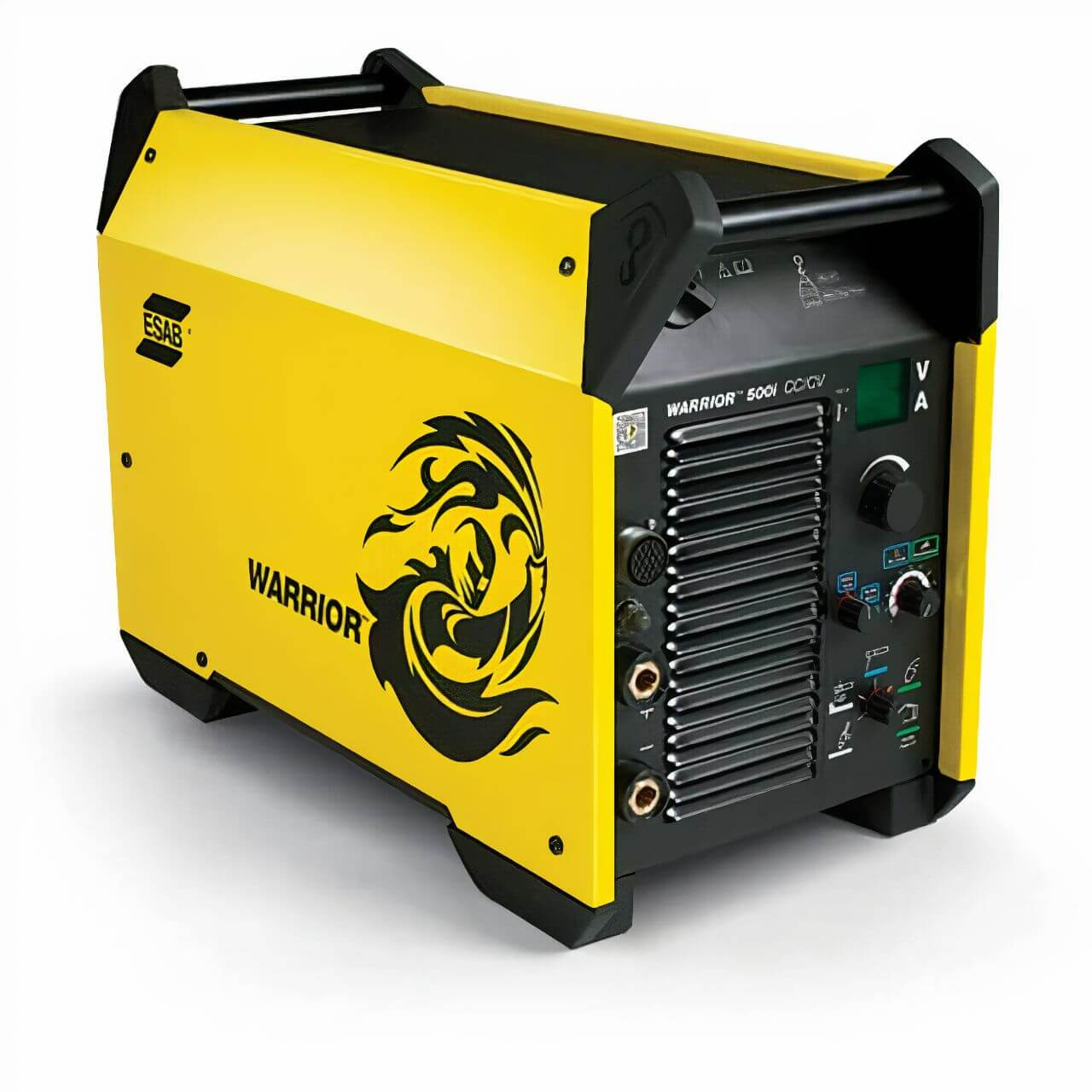

The ESAB Warrior 500i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price.
Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment. Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy.
SPECIFICATIONS:
- Mains Supply, VAC, 3 ph 50/60Hz - 380-400-415, +/-10%.
- Mains cable, Ø mm2 - 4x6.
- Fuse, Motor Start Type or Circuit Breaker Type C, A - 32.
- Maximum Load - 100% duty cycle A/V, 3ph: 400/36, 60% duty cycle A/V, 3ph: 500/40.
- Current Range - MIG/FCAW: 16-500A, Stick (MMAW): 16-500A, TIG: 5-500A.
- Open Circuit Voltage - 78V.
- Idle Power - 120W.
- Efficiency at Max. Current - 88%.
- Enclosure class - IP23.
- Dimensions - 712L x 325W x 470H mm.
- Weight - 52kg.
- Operating Temperature - -10 to +40°C.
Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment. Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy.
SPECIFICATIONS:
- Mains Supply, VAC, 3 ph 50/60Hz - 380-400-415, +/-10%.
- Mains cable, Ø mm2 - 4x6.
- Fuse, Motor Start Type or Circuit Breaker Type C, A - 32.
- Maximum Load - 100% duty cycle A/V, 3ph: 400/36, 60% duty cycle A/V, 3ph: 500/40.
- Current Range - MIG/FCAW: 16-500A, Stick (MMAW): 16-500A, TIG: 5-500A.
- Open Circuit Voltage - 78V.
- Idle Power - 120W.
- Efficiency at Max. Current - 88%.
- Enclosure class - IP23.
- Dimensions - 712L x 325W x 470H mm.
- Weight - 52kg.
- Operating Temperature - -10 to +40°C.
