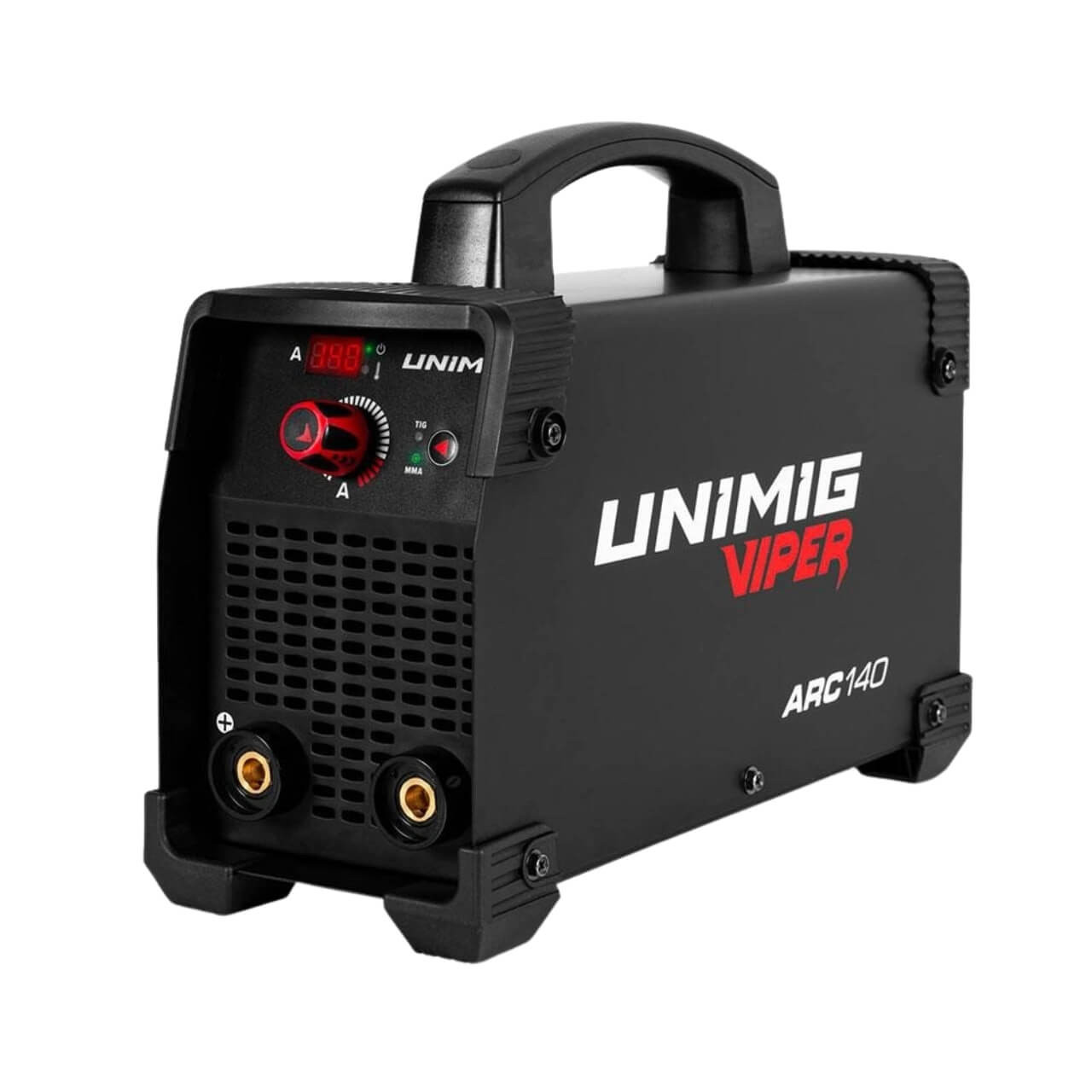

The VIPER 140 is everything you need to get up and running STICK welding that won’t break the bank. Plug in and play with the 10 AMP power plug, that can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
FEATURES:
- Take it anywhere with a 10 amp plug
- Connect a standard TIG torch and get Lift Arc TIG
- Keeps the internals safe with Thermal Overload Protection by preventing the machine from exceeding a safe operating temperature
- LED Amp Readout allows for precise amperage control
- IP21S rating for environmental/safety protection
- Manufactured in compliance to AS/NZ60974.1
SPECIFICATIONS:
- Voltage: 240V Single Phase
- No Load Voltage: 69V
- Rated Output: 10-140A
- Supply Plug: 10 Amp
- Ieff: 9.9A
- Stick Specifications:
- Welding Current Range: 20-140A
- Duty Cycle @ 40°C: 15% @ 140A
- Electrode Range: 2.5mm-3.2mm
- Welding Thickness Range: 2mm-8mm
- TIG Specifications:
- Function Type: DC Lift Arc
- Welding Thickness Range: 1mm-5mm
- Insulation Class: F
- Power Factor: 0.7
- Minimum Generator: 8kVA
- Dinse Connector: 10/25
- Protection Class: IP21S
- Standard: AS/NZ60974.1
- Dimensions (L x W x H): 352mm x 140mm x 260mm
- Weight: 4kg

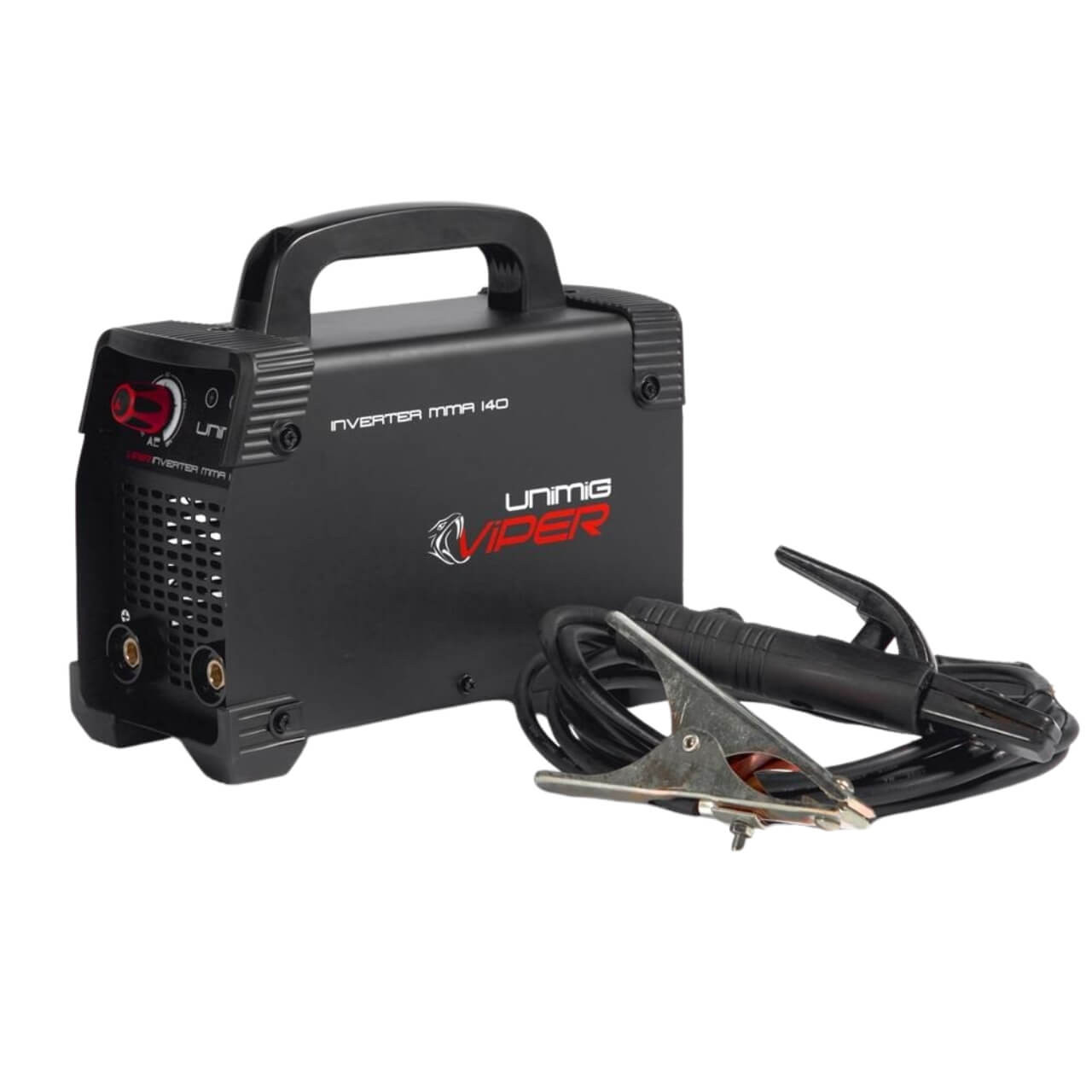

INCLUDES:
- 1 x 3m Twist-Lock Electrode Holder
- 1 x 200 Amp Earth Clamp &; Lead
- 1 x Operating Manual
SUITABLE FOR:
- Mild Steel
- Stainless Steel
- Copper
- Cast Iron
