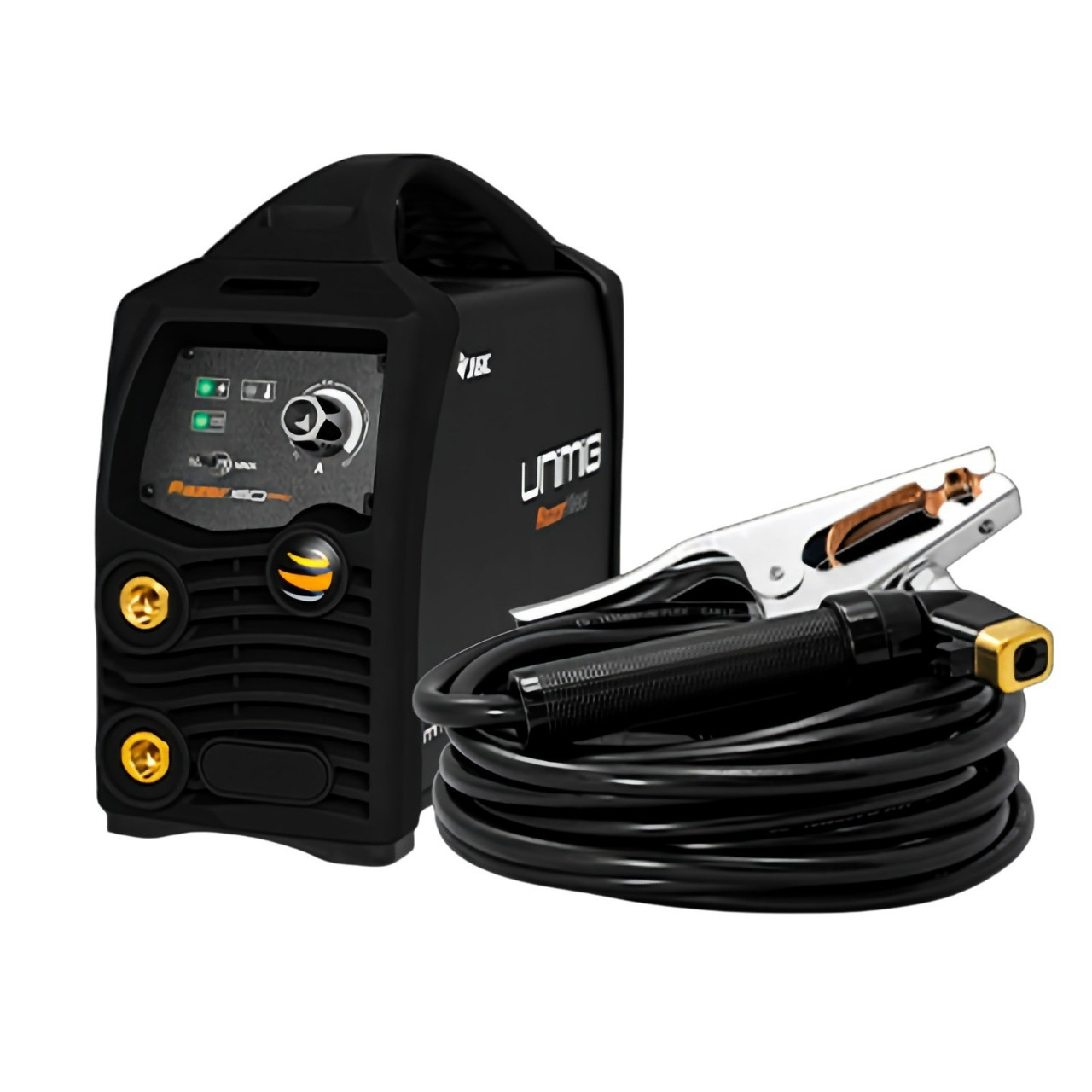

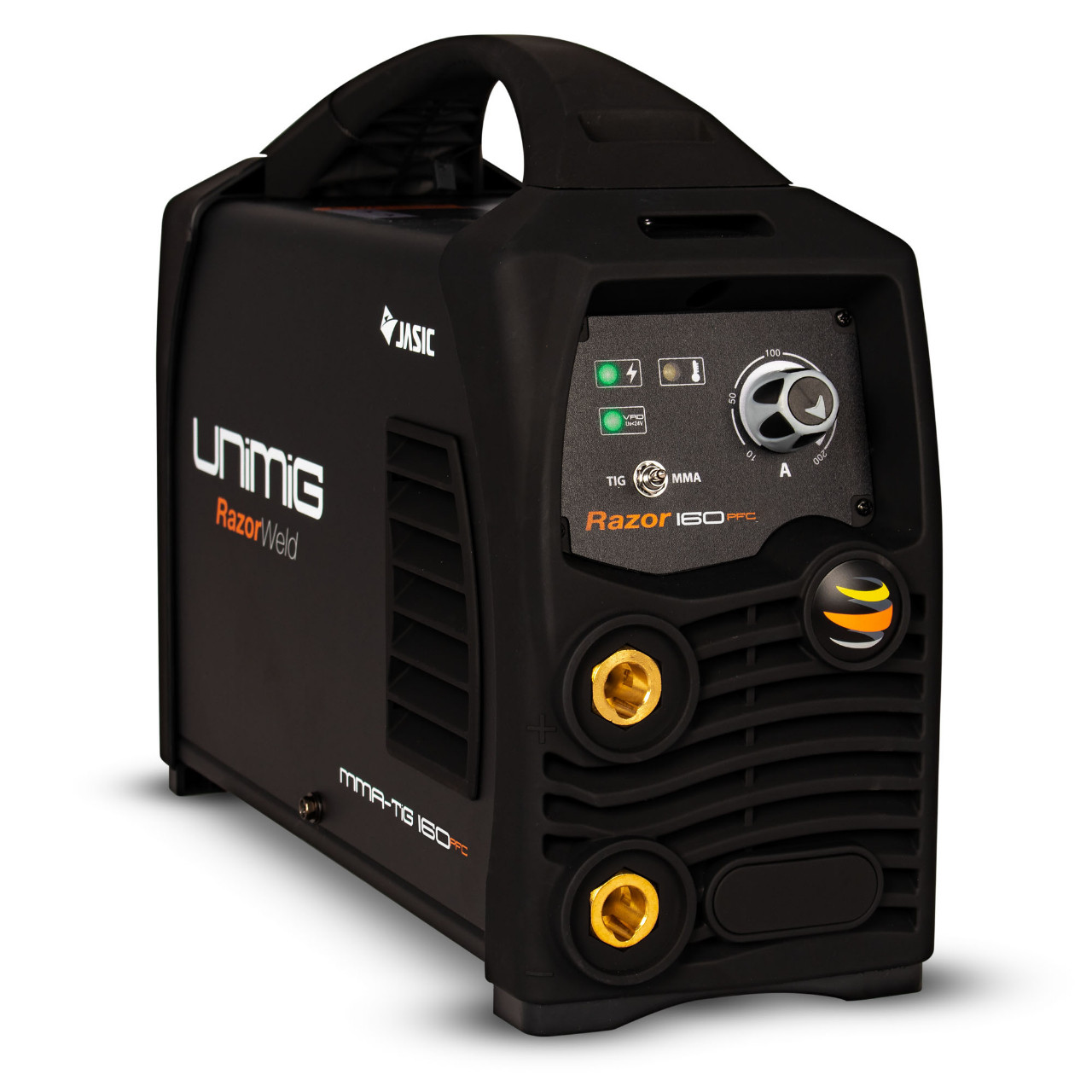

The RAZOR™ ARC 160 PFC is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 10 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.
FEATURES:
- HD Backlit Interface
- Power factor Correction
- Advanced MMA Features
- 10A Plug
- AC/DC
- DC Lift Arc TIG
- Optional Remote Control
- Smart Fan
- Lightweight & Portable
- Foot Control Ready
- Smart Fan
- Advanced MMA Features
- Optional Remote Control
TECHNICAL DATA:
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 10 AMP
- Ieff (A): 10
- Rated Output: 20A/20.8V - 160A/26.4V
- No Load Voltage (V): 78
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 9.0
- Dinse Connectors: 35/50
- Standard: AS/NZ60974-1
- TIG Weld Material type: Mild Steel, Stainless Steel, Copper, Silicon Bronze
- MMA Weld Material type: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years): 5
- Dimensions (mm): 413×150×311 mm
- Weight (kg): 7.2kg
TIG SPECIFICATIONS:
- TIG Function Type: DC Lift Arc
- TIG Welding Current Range: 10-160A
- TIG Duty Cycle @ 40°C:
;- 35% @ 160A
;- 60% @ 123A
;- 100% @ 95A
- TIG Welding Thickness: Range 1-6mm
STICK SPECIFICATIONS:
- STICK Welding Current Range: 20-160A
- STICK Duty Cycle @ 40°C:
;- 20% @ 160A
;- 60% @ 93A
;- 100% @ 72A
- STICK Electrode Range: 2.5-4.0mm
- STICK Welding Thickness Range: 2-10mm
