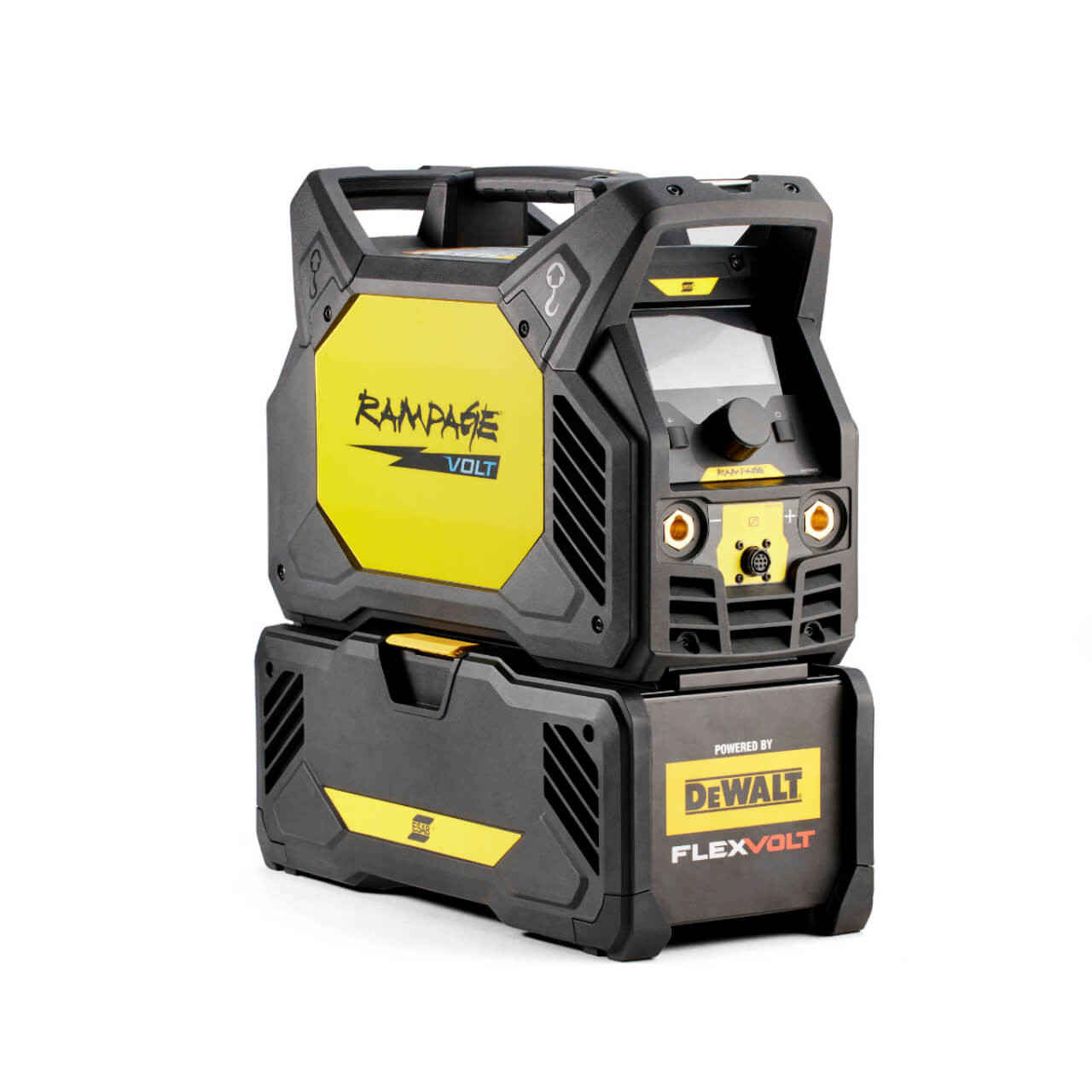

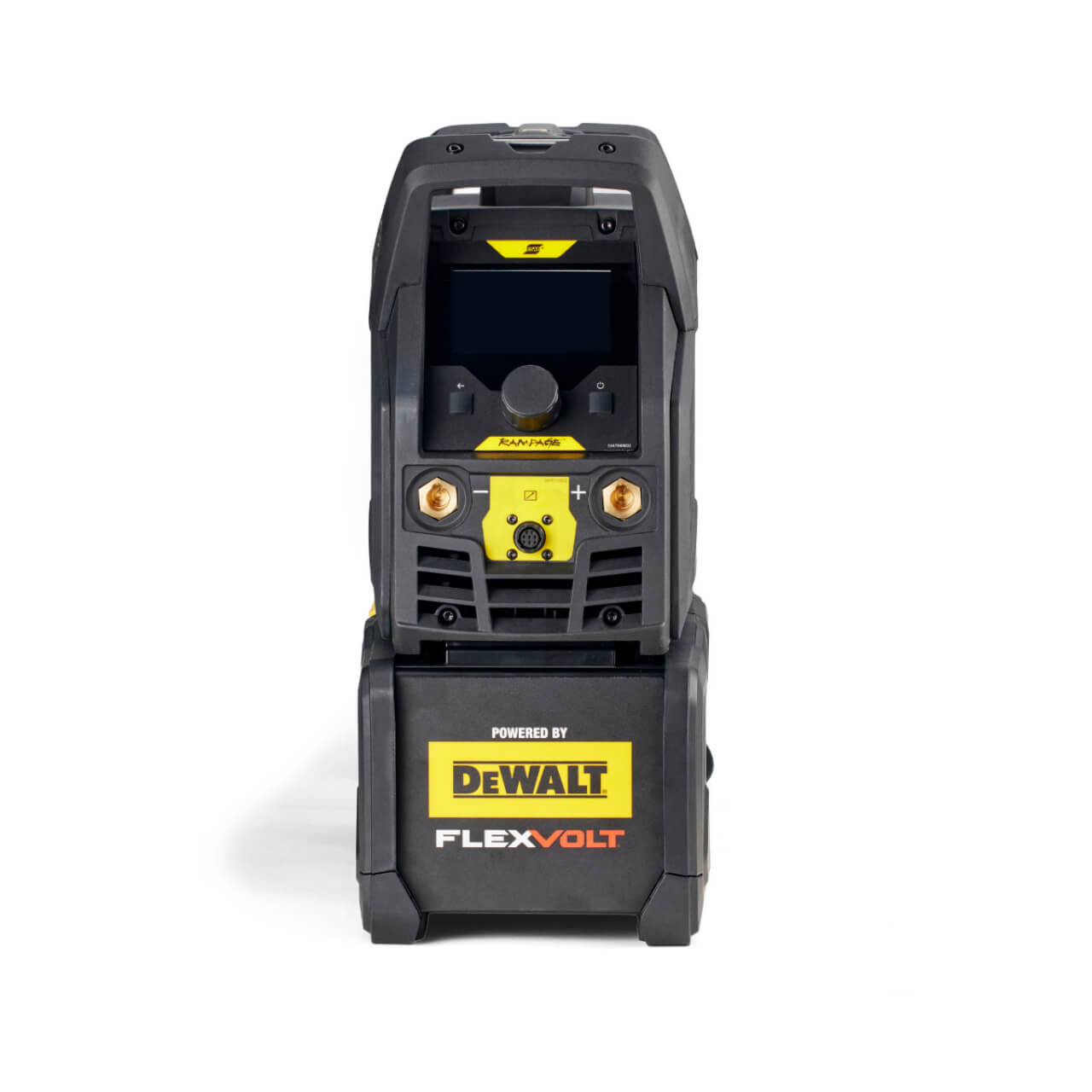

The ESAB Rampage VOLT™ ES200i is the world’s first portable, cordless battery powered, Stick (MMAW) and SAFE-TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode! Features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive colour-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator. This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (E6010) to optimize performance based on application or user preference. A highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power. In AMP+ Hybrid Mode, Rampage VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g.: 10A, 16A) or to provide more output when welding on 120V input. This cordless welder runs on 6Ah, 9Ah, and 12Ah DEWALT® FLEXVOLT® batteries and provides the power to burn up to 33 (E6013 250mm 2.5mm) electrodes on a single charge using four 12Ah batteries! (included in the package)*
FEATURES:
- 200A output on AC mains(230V)
- Up to 140A output on battery power
- Includes (4) DEWALT FLEXVOLT 18V/54V max 12Ah batteries
- Voltage Reduction Device (VRD) is standard when used in STICK mode
- AMP+ Hybrid mode for extra power (120V Input Only)
- Lightweight and portable battery powered welder
- Durable, impact-resistant housing
- Sun-friendly, intuitive user interface
- Memory storage for welding parameters
- DC-LIFT TIG for use with On/Off TIG Torch only (SAFE-TIG). Sold Separately.
INCLUDES:
- Volt ES200i Power Source

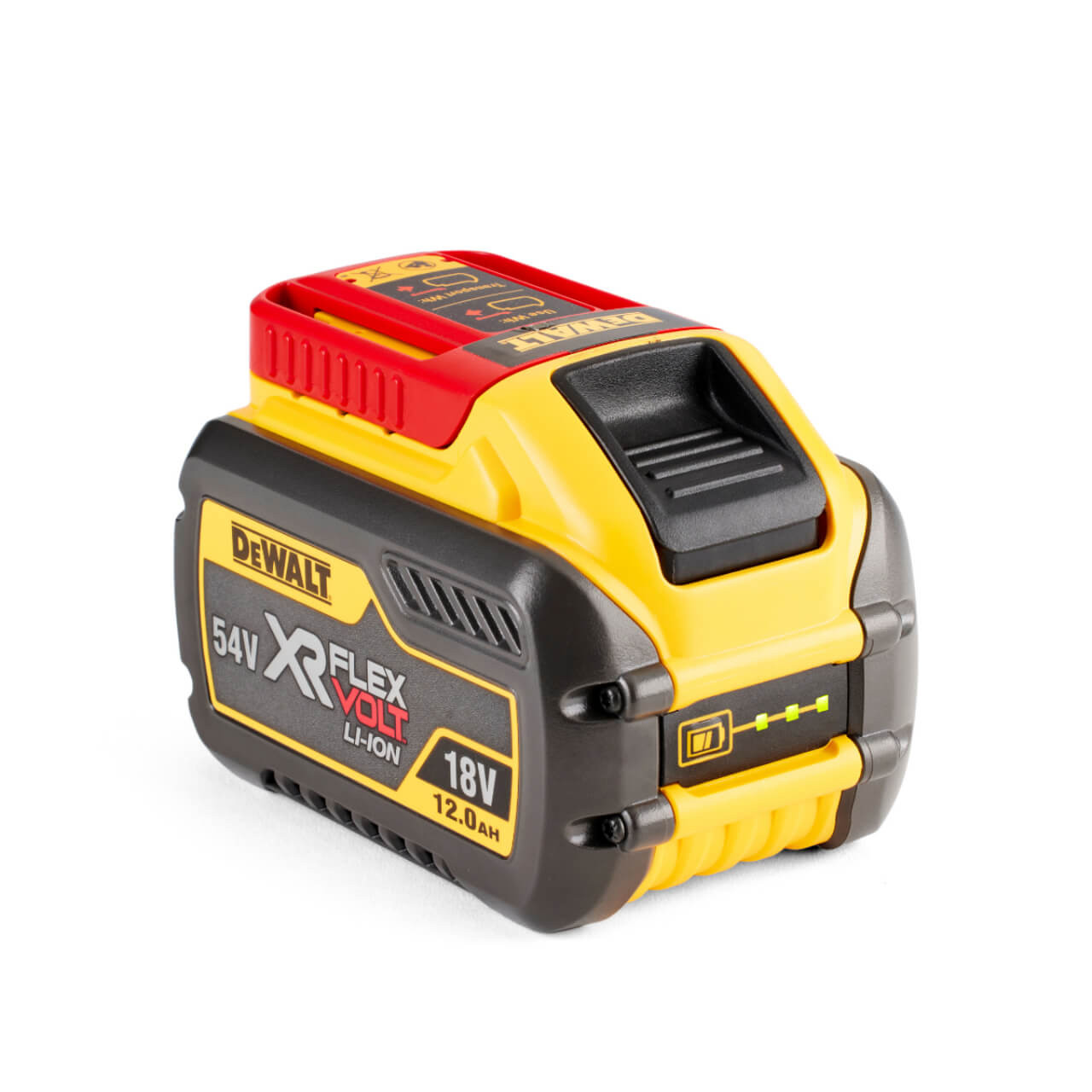

- DeWALT FLEXVOLT 12Ah Batteries x4
- DeWALT FLEXVOLT Four-Port Fast Charger
- Electrode Holder with 3m Cable
- 3m Return Cable with Earth Clamp
- Shoulder Strap
- Detachable Battery Box
SPECIFICATIONS:
- Voltage: 120/230/240 VAC ± 15%, 1ph, 50/60 Hz
- I1eff. Current: 15A
- Rated kVA:
- 6.0 kVA @ 230VAC
- 2.7 kVA @ 120VAC
- Voltage Input Range: 90-270 VAC
- Energy Save Mode: <;50W
- Welding Output, MMA (Mains Mode):
- 120V
- 110 A / 24.4 V @ 25%
- 70 A / 22.8 V @ 60%
- 55 A / 22.2 V @ 100 %
- 230V
- 200 A / 28.0 V @ 25 %
- 129 A / 25.2 V @ 60 %
- 100 A / 24.0 V @ 100%
- Welding Output, MMA (Battery Mode):
- 80V
- 140 A / 25.2 V @ 18%
- 110 A / 24.4 V @ 25%
- 80 A / 23.2 V @ 60%
- 60 A / 22.4 V @ 100 %
- Welding Output, MMA (AMP+ Hybrid Mode):
- 120V
- 150 A / 26.0 V @ 25%
- 90 A / 23.6 V @ 60%
- 70 A / 22.8 V @ 100 %
- 230 V
- 200 A / 28.0 V @ 25 %
- 129 A / 25.2 V @ 60 %
- 100 A / 24.0 V @ 100 %
- Welding Output, TIG (Mains Mode):
- 120V
- 140 A / 15.6 V @ 25%
- 90 A / 13.6 V @ 60%
- 70 A / 12.8 V @ 100 %
- 230 V
- 200 A / 18.0 V @ 25 %
- 129 A / 15.2 V @ 60 %
- 100 A / 14.0 V @ 100 %
- Welding Output, TIG (Battery Mode):
- 80V
- 150 A / 16.0 V @ 18%
- 115 A / 14.6 V @ 25%
- 90 A / 13.6 V @ 60%
- 70 A / 12.8 V @ 100 %
- Welding Output, TIG (AMP+ Hybrid Mode):
- 120V
- 180 A / 17.2 V @ 25%
- 130 A / 15.2 V @ 60%
- 100 A / 14.0 V @ 100 %
- 230 V
- 200 A / 18.0 V @ 25 %
- 129 A / 15.2 V @ 60 %
- 100 A / 14.0 V @ 100 %
- Setting Range, MMA (Mode):
- 120V (Mains)
- 10 A / 20.6 - 110 A / 24.4V
- 230V (Mains)
- 10A/20.6 - 200 A / 28 V
- 120V (AMP+ Hybrid)
- 10 A / 20.6 - 150 A / 26V
- 230V (AMP+ Hybrid)
- 10 A / 20.6 - 200 A / 28V
- 80V (Battery)
- 10 A / 20.6 – 140 A / 25.6 V (80 VDC Battery Mode)
- Setting Range, TIG (Mode):
- 120V (Mains)
- 10 A / 10.4 - 140 A / 15.6V
- 230V (Mains)
- 10 A / 10.4 - 200 A / 18V
- 120V (AMP+ Hybrid)
- 10 A / 10.4 - 180 A / 17.2V
- 230V (AMP+ Hybrid)
- 10 A / 10.4 - 200 A / 18V
- 80V (Battery)
- 10 A / 10.4 - 150 A / 16 V (80 VDC DC Mode)
- Power Factor at Maximum Current: 0.99
- Efficiency at Maximum Current: 80%
- Open Circuit Voltage (OCV): 80 VDC
- Operating Temperature: -10 to +40 °C (+14 to +104 °F)
- Protection Class: IP23
- Certification Mark (Standards): ETL | ISO | IEC
- Supply Plug: 15 Amp Heavy Duty 3-Pin plug top
- Dimensions L x W x H, without battery box: 460 x 200 x 320 mm
- Dimensions L x W x H, with battery box: 480 x 220 x 485 mm
- Weight: Power Source and battery box: 19 kg
- Weight: Power Source, battery box and 4 battery packs: 38 kg
