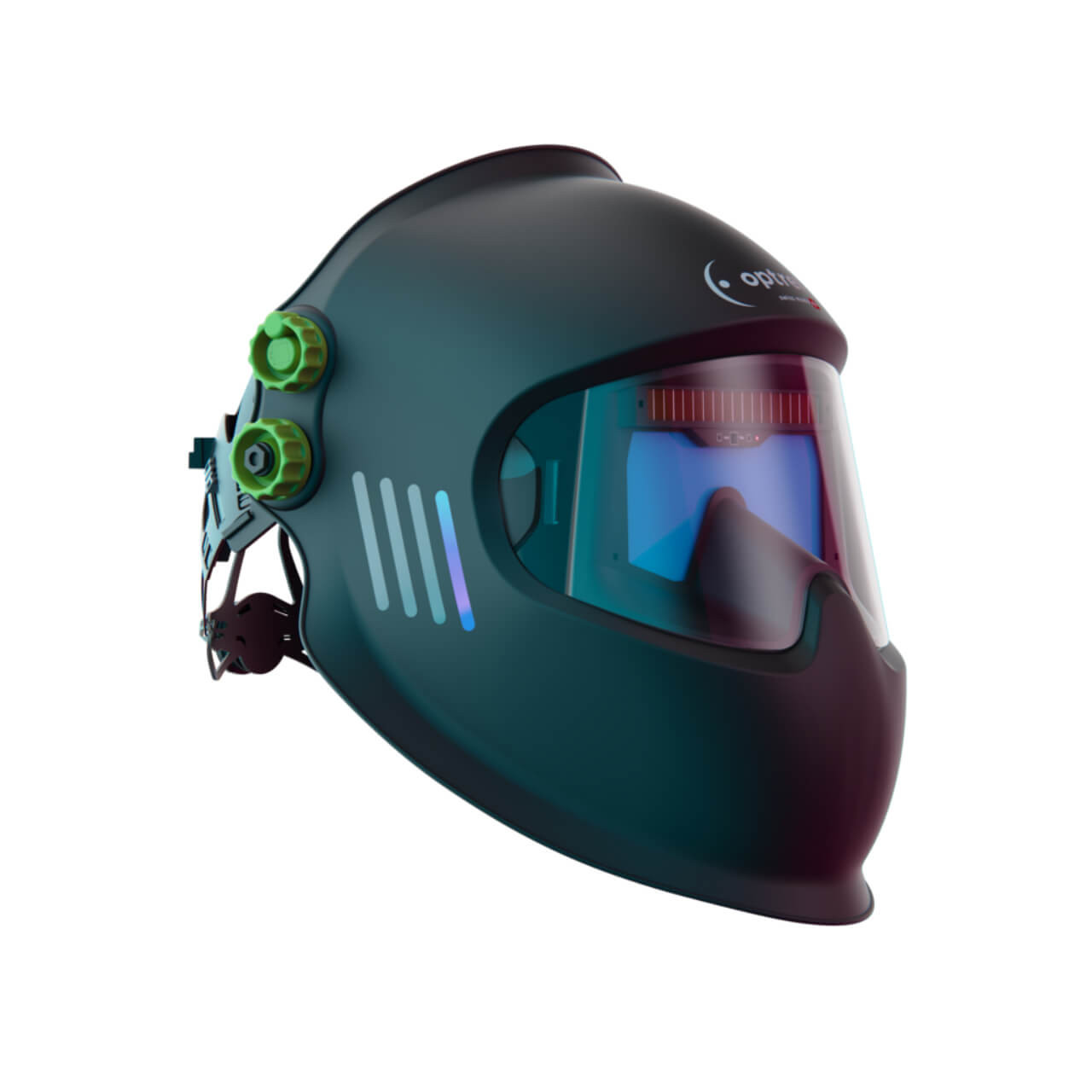

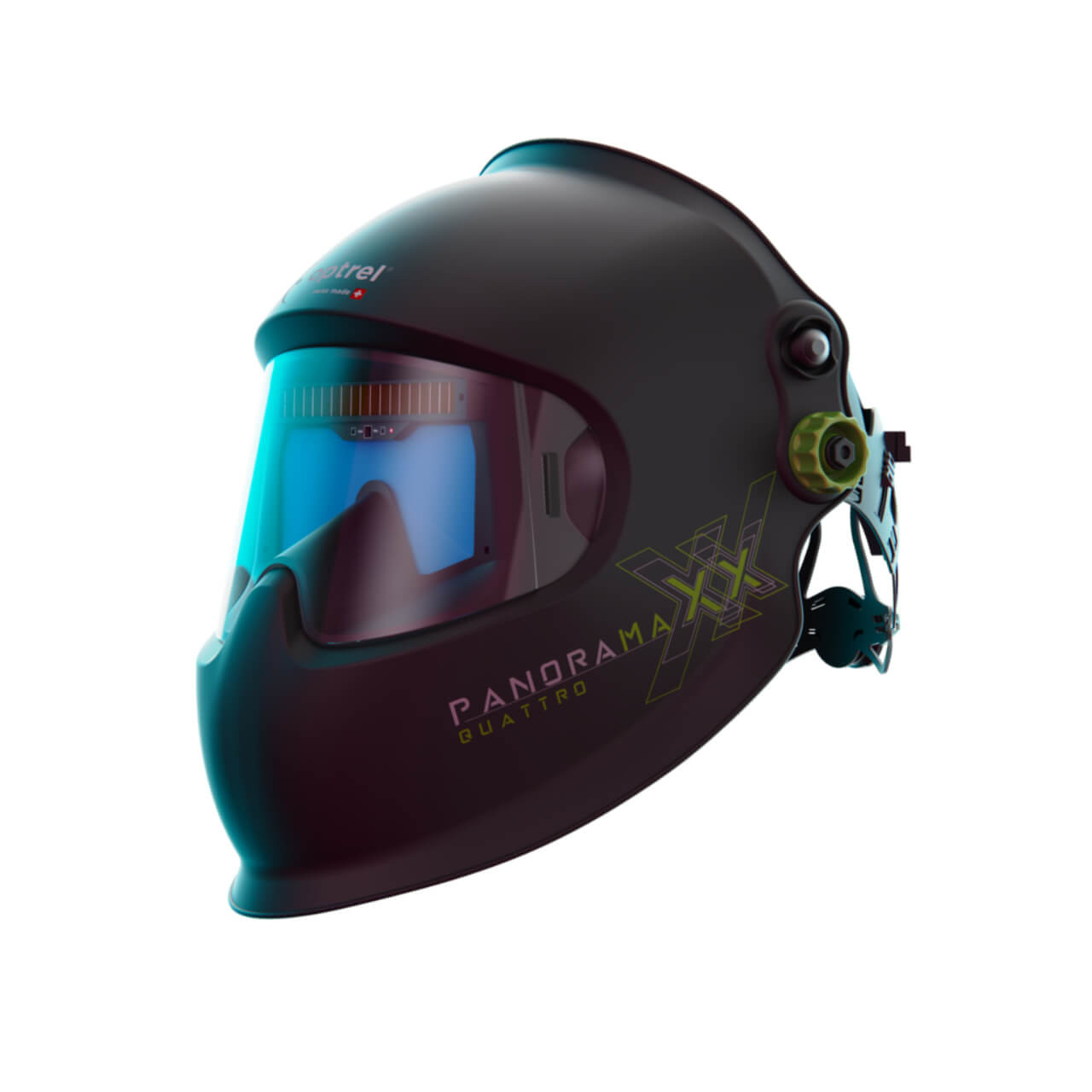

The panoramaxx quattro was developed for use in heavy metal construction, where work is often carried out with a lot of energy and in a wide variety of welding positions. Especially in constrained positions, there is no straight view of the welding point. Perfect viewing angle dependence, confirmed by the best test mark of 1 according to the EN 379 standard, guarantees that panoramaxx quattro welders always have the best view of the welding process without manual adjustment of the protection level. This results in uninterrupted and fatigue-free working with improved performance.
FEATURES:
- PANORAMIC FIELD OF VISION - The Panoramaxx offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 20.3 ounces.
1/1/1/1 Optical Classification - Provides the clearest view of the weld puddle of any welding lens in the world.
- SHADETRONIC® - Detection of the arc brightness and fully automated shade level adjustment from 4 to 13. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically.
- FADETRONIC - Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
- TRUE COLOR - A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
- Optrel Re-Charge - With its rechargeable power-pack, changing batteries is no longer necessary. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface.
- 5-Point Detection - intelligent sensor control with five sensors. Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.

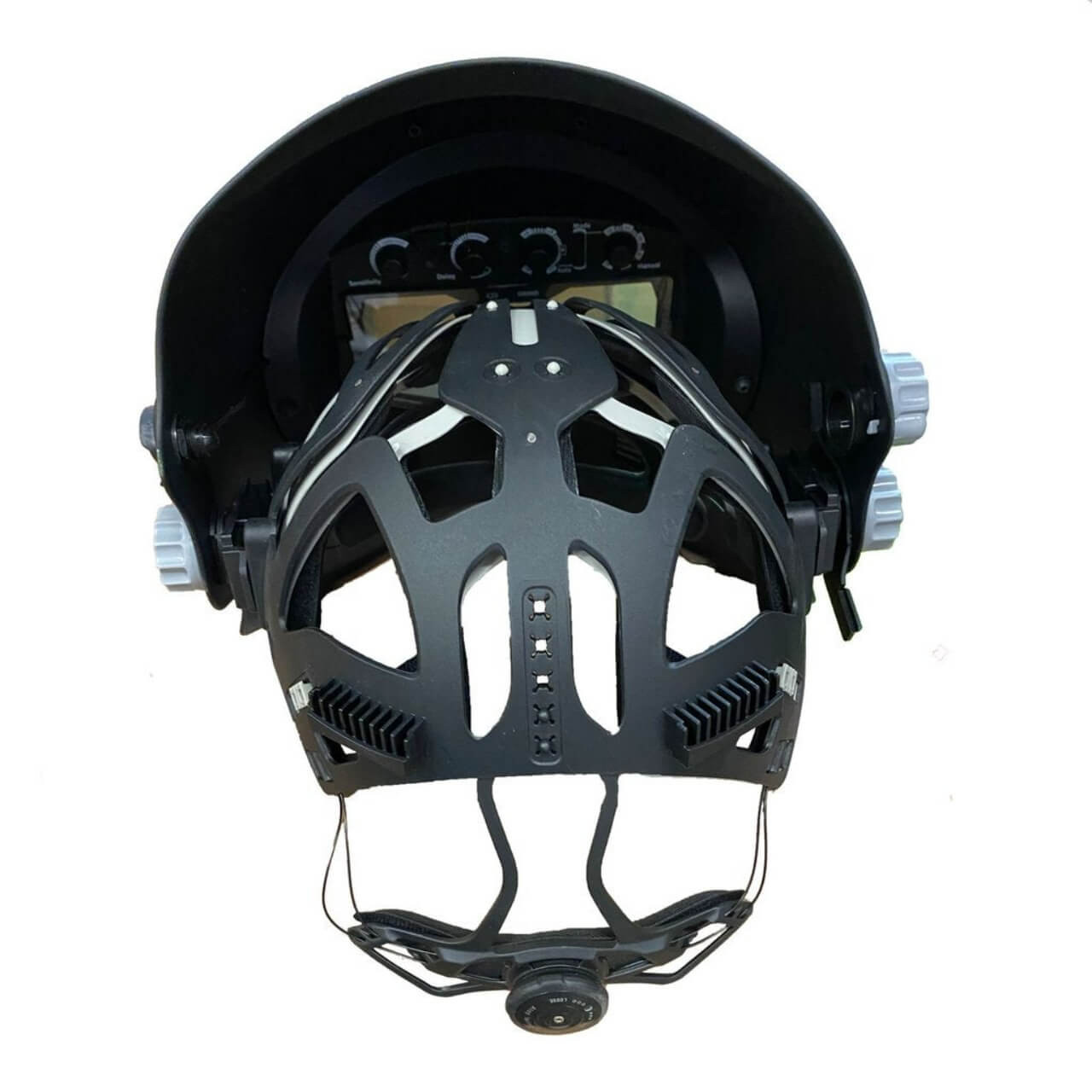

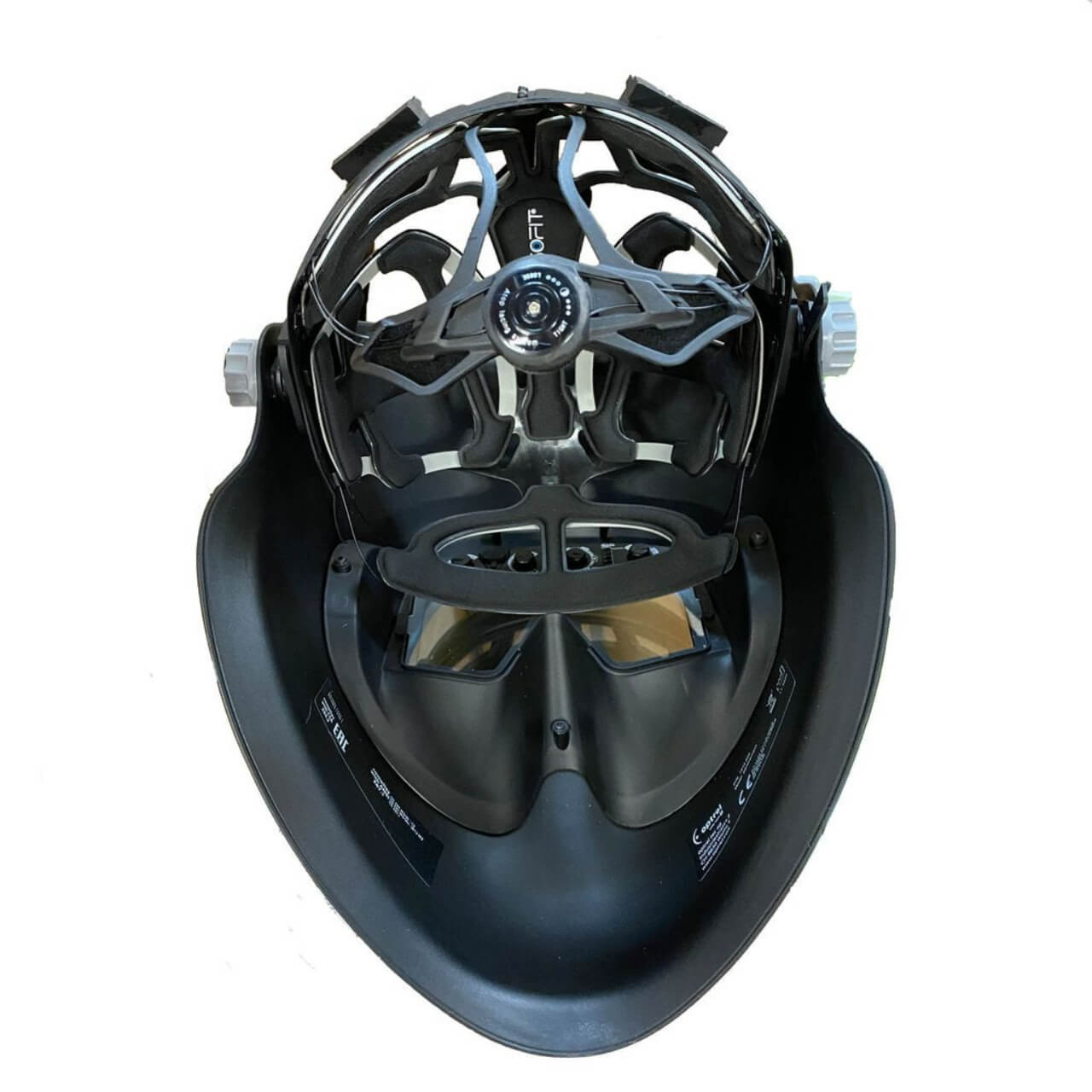

- IsoFit® headgear sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height i.e. three-dimensionally to any head shape, so that the helmet really fits "like a glove."
- FadeTronic® - gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
- Sensitivity Adjustment - allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
- Grinding Mode - external grind control allows user to switch between welding mode and shade 3 grinding mode quickly and easily.
- Delay Function
- Out-Of Position Welding is possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collec
| Minimum Sale Qty: | 1 |
