A helmet made for everyone who doesn’t like to compromise. Full protection and full versatility – in its lightest form. With our innovative slide up technology, you can adjust to the realities of your job within seconds. The Helix remains incomparably light and perfectly balanced - eliminating the pain causing effects of ordinary flip up helmets. No more tunnel view – due to our “Nose Cutout Technology”. Have everything in sight while working – with a field of view six times larger compared to other products.
All that makes the Helix the perfect companion for welding, grinding and cutting in heavy steel construction. For all who know what real heat feels like - and still want to keep a cool head. Even after hours of work. Fully compatible with “Swiss Air“ – the best solution for, clean, fresh air – without any compromise in terms of mobility and communication. So you can focus on your work – and let us take care of the rest.

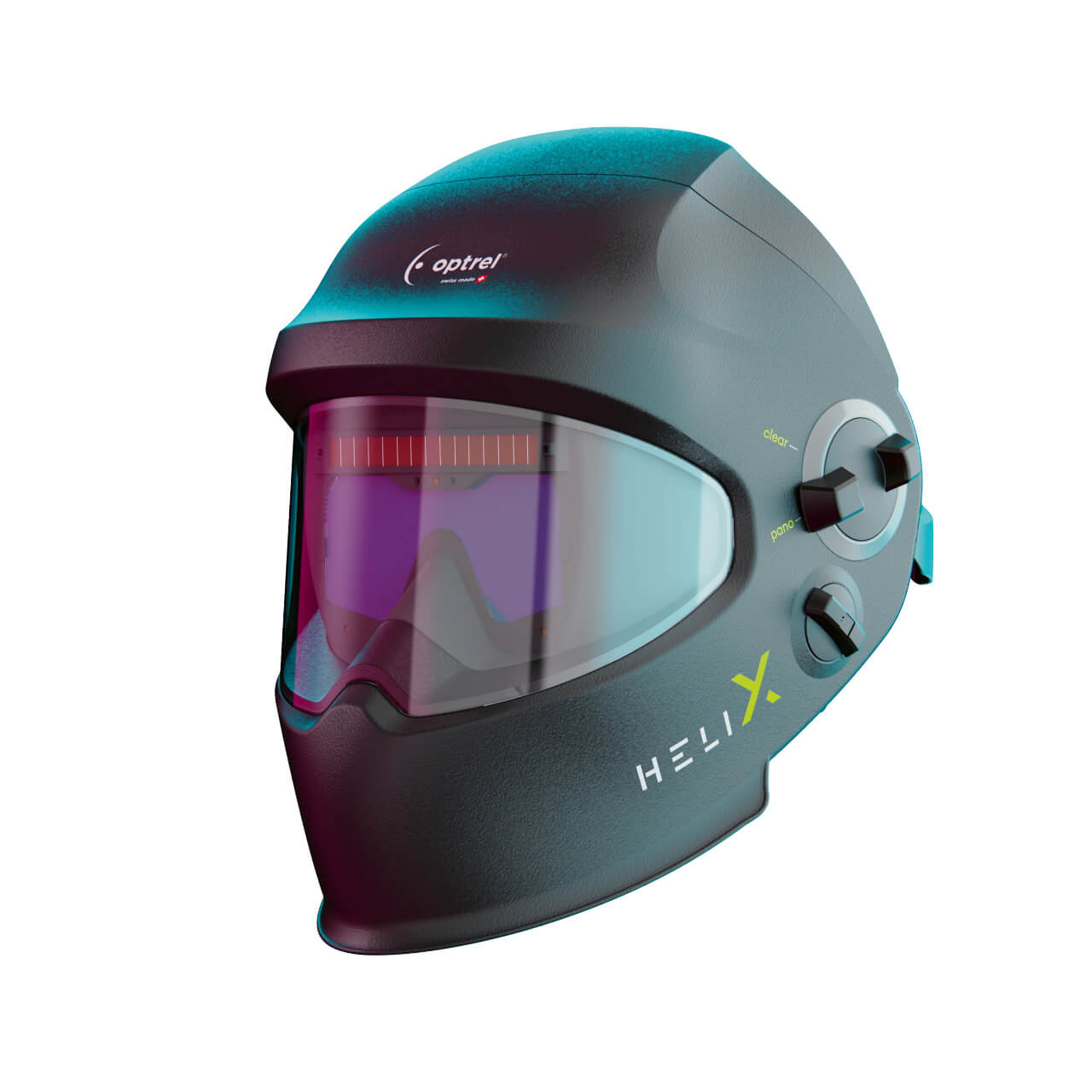

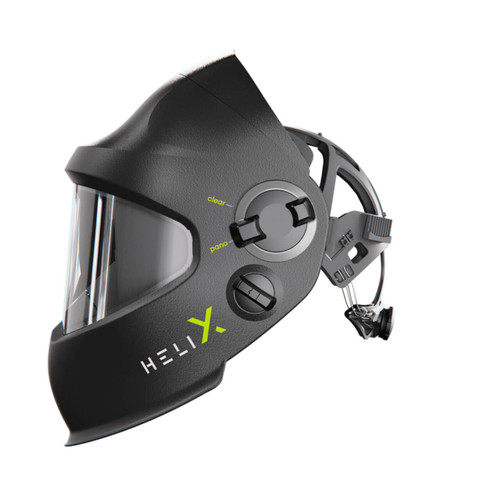

The Optrel Helix. Hard work never felt so easy. The helix CLT is ideal for you if you need the practical slide-up function to switch between different tasks and also want a large field of vision with an extremely bright and true-color view when welding.
FEATURES:
- Crystal Lens Technology 2.0
- Slide up
- Anti-glare
- Removable hardhat
- Twilight function
- Sensitivity control
- True color vision
- Warranty extension 2+1 years
- Rechargeable battery
- Opening delay
- Approved for overhead welding
SPECIFICATIONS:
- Protection levels: ShadeTronic inactive: protection level 2.0 active, manual: protection levels 7-12 Automatic protection level regulation over the protection level range 4<;12M with individual calibration option of ± 2.
- Power Supply: Solar cells, Li-polymer battery, chargeable via micro USB cable
- Battery Life: 300 to 500 charging cycles
- Sensors: Five sensors
- Sensitivity: Infinitely adjustable, new with “Super High” sensitivity
- Switching Time:
- Light to dark: 0.090 ms at room temperature, 0.070 ms at 55°C
- Dark to light: 0.1 s to 2.0 s (with FadeTronic)
- Field of View: Depending on headgear adjustment, 2.3 to 6.3 times the field of view of a 100 x 50 mm industry standard anti-glare cassette
- Battery Life: 300 to 500 charging cycles
- Classification EN379:
- Optical class: 1
- Stray light class: 1
- Homogeneity class: 1
- Angular dependence class: 2
- Operating Temperature: -10°C to + 55°C / 14°F to 131°F
- Storage Temperature: -20°C to + 70°C / -4°F to 158°F
- Total Weight: 640g
- Certifications: CE, UKCA, ANSI, EAC, AS/NZS, meets CSA Z94.3 Meets pr ISO 16321 standards “TIG+” (“low amp Tig” process)
APPLICATIONS:
- Stick Welding (SMAW)
- MIG/MAG (Metal Inert Gas Welding, GMAW)
- GMAW high performance welding
- Cored wire welding
- TIG welding (TIG, GTAW)
- Plasma welding
- Plasma cutting
- Gas welding
- Grinding mode
