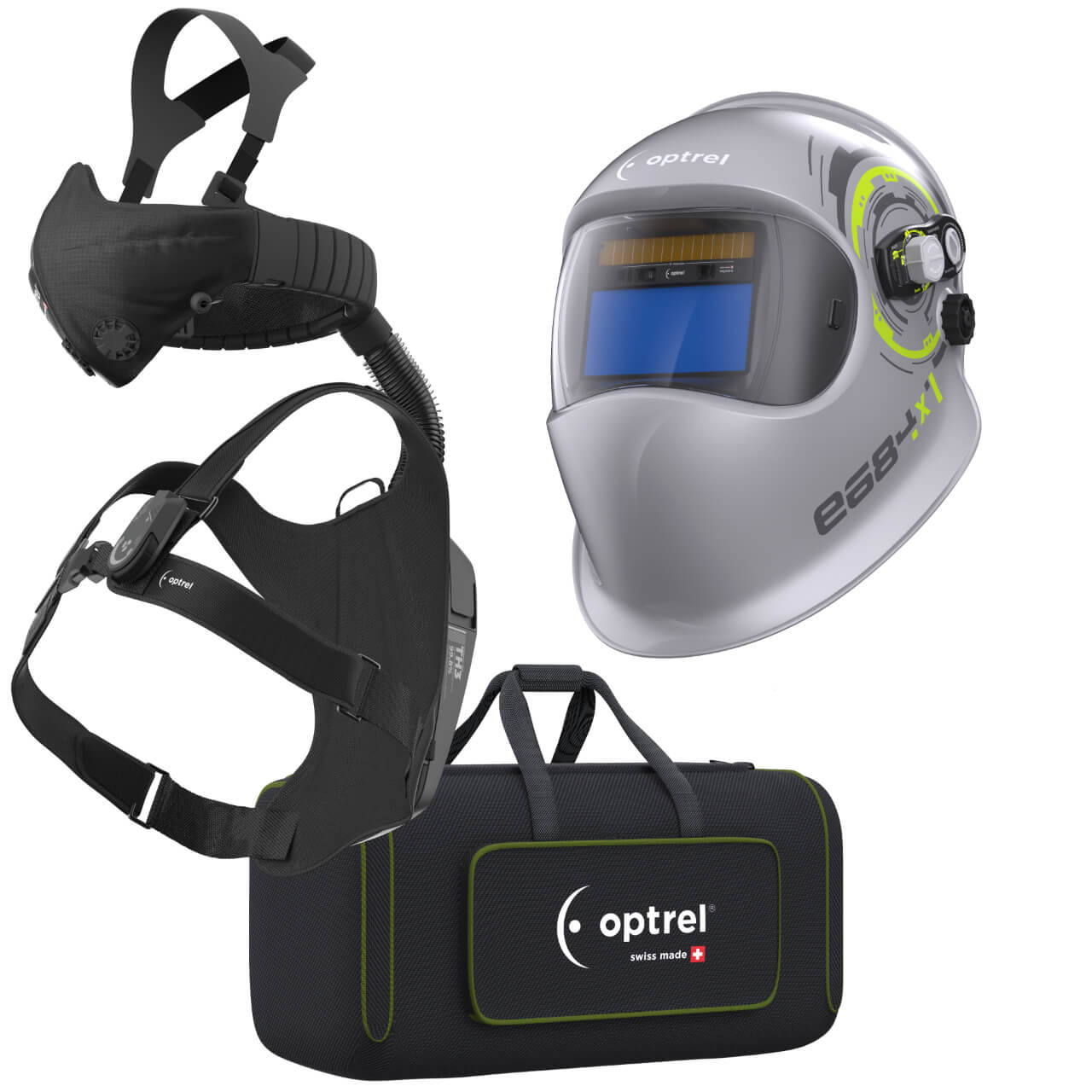

Ready to weld package E684 + swiss air respiratory protection system complete with control panel, incl. comfort half mask: consisting of half mask and hose system incl. head and neck strap, blower unit, shoulder harness, storage bag.
SPECIFICATIONS:
- BLOWER UNIT:
- Flow rates:
- level 1: min. 100 l/min
- level 2: min. 115 l/min
- level 3: min. 130 l/min
- All levels with automatic air flow control (levels are set directly on the fan and can be continuously adjusted via the control panel at the front).
- Material: PA66 GF30
- Fan: High quality ball beared motor
- Fuse: Electronic
- Noise Max.: 70db (A)
- Alarm:
- Optical (with swiss air Control Panel) and audible alarm for low / very low battery, clogged filter, no filter, and low flow
- Low battery: alarm period: 3.0s (1.5s on, 1.5s off)
- Filter: alarm period 0.5s (0.25s on, 0.25s off)
- Dimensions: (L x W x H) 250 x 170 x 50 mm
- Weight:Blower unit 550 g / Overall system 1,200 g
- Colour: Black
- HALF-MASK:
- Material:
- Ripstop textile (98% polyester and 2% polyurethanes
- Inlay: Polyurethane foam
- Valves: 2 exhalation valves with silicone membrane
- Colour: Black
- HEADBAND / NECK BAND:
- Material: Neoprene / elastic
- Colour: Black
- FILTER UNIT:
- Type: TH3P R SL filter for TH3P System (EU) with pre-filter
- HOSE:
- Material: POM and silicone
- Length: 180 mm (elastic, up to 355 mm excl. Y-hose)
- Internal diameter: 21 mm
- Colour: Black
- BATTERY PACK:
- Type: Li-Ione, rechargeable, 3,6 V / 6,5 Ah / 23.4Wh
- Operating time:
- level 1: 14h
- level 2: 12h
- level 3: 8h
- (with new filter at room temperature)
- Charging time: approx. 6h
- Sleep mode: after 3 hours, activation by pressing once, start at second press
- CERTIFICATES:
- Standards:
- EN 12941
- Europe: TH3
- Notified body: CE 1024
