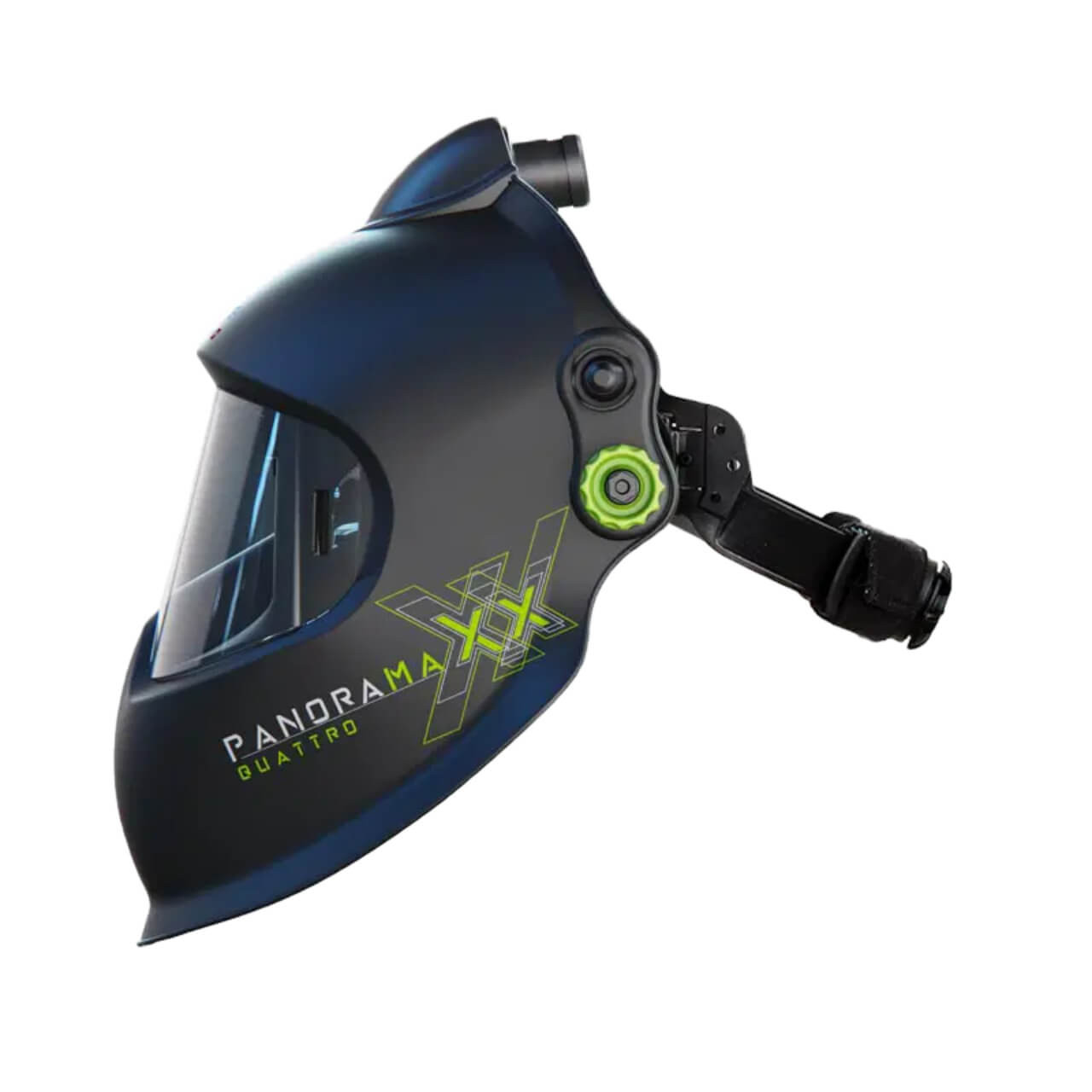

The Panoramaxx Quattro is a heavy-duty welding helmet for extreme use. Its panoramic view always offers optimum protection even at difficult angles. Its fantastic visibility is confirmed by the classification 1/1/1/1 according to DIN EN 379 standard. The Panoramaxx Quattro guarantees that welders always have the best field of vision without manual adjustment of the protection level resulting in uninterrupted and fatigue-free working with improved performance.
FEATURES:
- Face and respiratory protection system when combined with the e3000x blower kit
- Like looking through a glass window
- Automatically adapts to changing light conditions of the welding arc
- Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue
- The brightest vision during grinding work ever to be offered by a welding helmet
- Overhead Welding Feature
- intelligent five-sensor control to adjust shade levels even in the most difficult lighting conditions
- Lithium-polymer battery is recharged either by light or directly with a USB charger
- Delay Function Feature
- Adapts the helmet to your environment and requirements
SPECIFICATIONS:
- Shade Levels:
- ShadeTronic Inactive:: Shade level 2.5
- Active, Manual: Shade level 7-12
- ShadeTronic 4-13 with individual calibration option ± 2
- Energy Supply: Solar cells, Li-polymer battery pack, chargeable via Micro-USB
- Battery Life: 300 to 500 charging cycles
- Sensors: Five sensors
- Sensitivity: Continuously, new with “Super High” sensitivity
- Switching time:
- Light to Dark: 0.090ms at 20°C, 0.070ms at 55°C
- Dark to Light: 0.1s to 2.0s (with FadeTronic)
- Field of Vision: 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
- Classification EN379: 1/1/1/2
- Eye Protection: UV/IR protection: maximum protection at all shade levels
- Operating Temperature: -10°C to +55°C / 14°F to 131°F
- Storage Temperature: -20°C to +70°C / -4°F to 158°F
- Total Weight: 575g (PAPR 745g)
- Scope of Delivery: Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card
APPLICATIONS:
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Gas Welding
- Grind Mode
