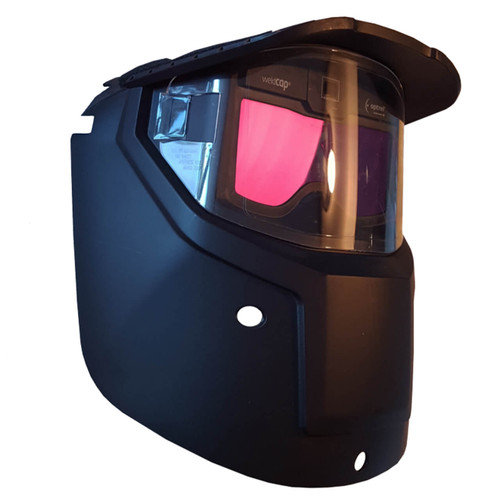

The weldcap® - an automatic welding cap, that combines the comforts of a leisure hat with the advantages of a full welding helmet. Predestined for users whose area of responsibility includes not only welding but also other metalworking tasks. You are performing changing working steps where the welding protection must be quickly put on and taken off? Then you will be enthusiastic about our weldcap® line.
FEATURES:
- Shade Level 3/9-12
- Field of vision +270%
- Grind Mode
- Lightweight
APPLICATIONS:
- Gas Welding
- TIG Welding (GTAW)
- Micro Plasma Arc Welding
- MIG/MAG (GMAW)
- Elektrode Welding (Stick Welding, SMAW)
- Spot welding
SPECIFICATIONS:
- Power supply:
- 2 pcs LI-batteries 3V exchangeable (CR2032)
- No need to switch on-off.
- Viewing area:
- Viewing angle downwards: +37°
- Viewing angle sidewards: +25°
- Operating time:
- batteries: 1000 h
- Sensors: Wide angle detection sensor
- Light transmittance: Ultraviolet/infrared protection (maximum at any shade setting)
- Visible range activated shade level DIN 9-12
- Visible range not activated shade level DIN 3
- Switching time:
- Light to dark at room temperature: 0.16 ms
- Light to dark at 55°C / 131°F: 0.110 ms
- Dark to light: 0.3s
- Classification:
- EN 379
- Optical class = 1
- Scattered light = 1
- Homogenity = 2
- Angular dependence = 2
- Classification EN 175F (45m/s impact resistance)
- Shape stability:
- Welding mask up to 180°C / 356°F
- Front cover lens up to 135°C / 275°F
- Grinding mode: Shade level DIN 3
- Material: Rigid plastic face shield and flame retardent textile according to EN ISO 11611 (Class 1, A1+ A2)
- Operation temperature:-10°C to +60°C / 14°F to 158°F
- Storage temperature: -20°C to +80°C / -4°F to 176°F
- Weight Helmet cpl.: approx. 400g
