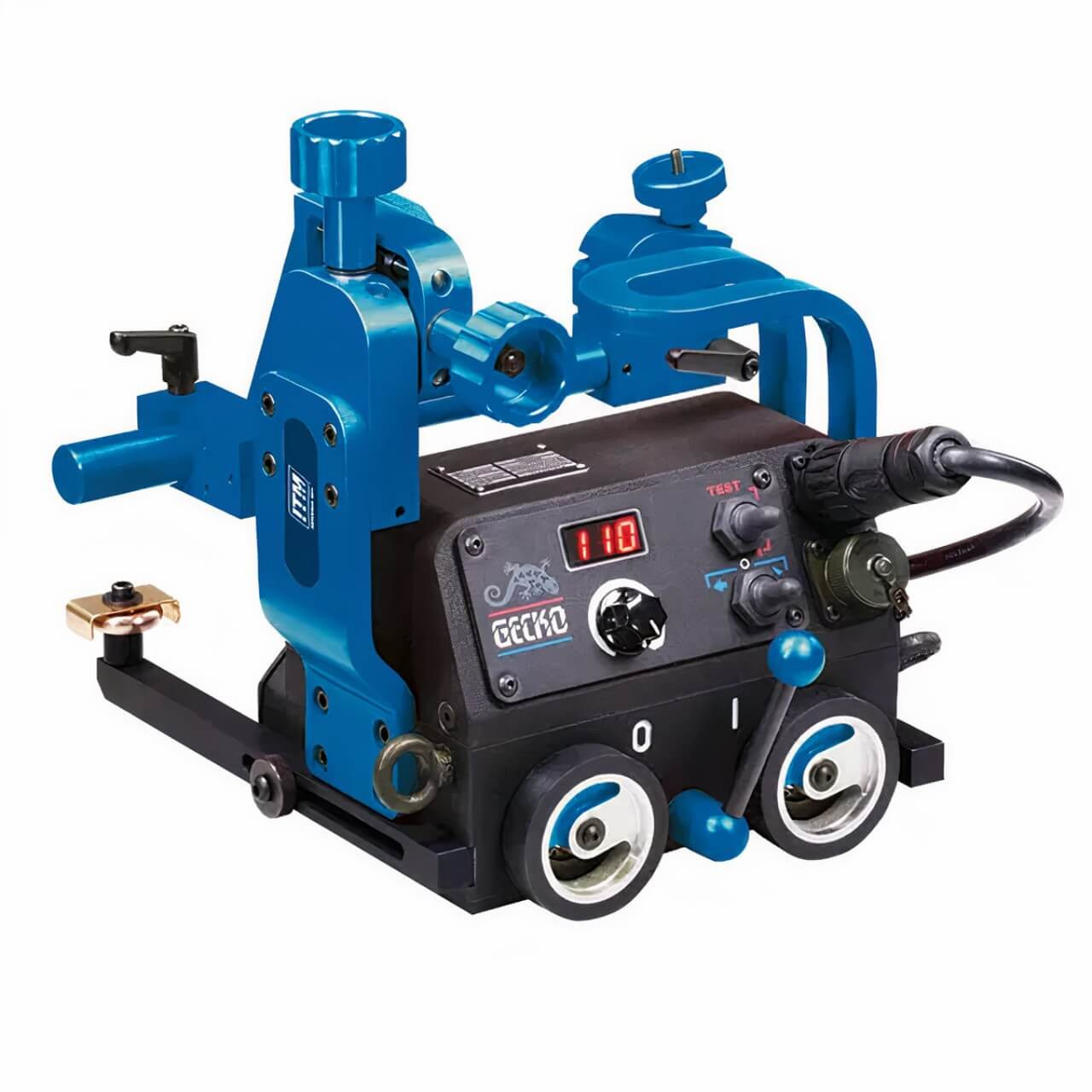

The Gecko is a heavy duty European made portable fillet welding carriage designed to produce consistent high quality welds. It features a 4-wheel drive system with magnetic traction and a control loop feedback mechanism which provides speed stabilisation in all welding positions. Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus substantially reducing costly over welding and decreasing filler metal usage.
Gecko HS (High Speed) has increased the horizontal maximum speed from 1100mm/min to 2200mm/min making it suitable for both speed welding and plasma cutting.
Compact & lightweight design with durable aluminum housing
Permanent magnet clamping system with on/off lever ensures positive magnetic traction
Maintenance free 4-wheel drive with worm gear reduction
Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16-22mm (5/8"-7/8")
Precise torch adjustment with screw drive cross slide
Multifunctional LED display - presetting of travel speed, metric &; imperial units, error codes information
Closed loop speed control system stabilises travel speed to reduce weld defects and costly rework
Consistent heat input reduces distortion
Automatic ARC ON/OFF system initiates welding with travel, simultaneously
Self-guiding roller arms eliminate the need for track
Improves working environment - removes operator from heat and fumes
Package Includes
Welding carriage
Power lead
Arc ignition cable
Torch holder
4mm Allen key
Operator’s manual
SPECIFICATIONS
Power supply: 115-230VAC / 50-60Hz
Welding positions: Vertical / Horizontal
Chassis to material clearance: 4mm
Travel mechanism: Friction Drive With Worm Gear Reduction, 4 Wheel Drive, Heat Resistant Silicone Wheels
Tracking method: 2-Guide Rollers
Torch adjustment: Up-Down 35mm, Left-Right 35mm
Gear roller adjustment: 100mm
Horizontal speed: 0-2200mm/min
Vertical speed: 5-2000mm/min
Dimensions: 240mm (L) x 258mm (W) x 253mm (H)
Weight: 8kg
Gecko HS (High Speed) has increased the horizontal maximum speed from 1100mm/min to 2200mm/min making it suitable for both speed welding and plasma cutting.
Compact & lightweight design with durable aluminum housing
Permanent magnet clamping system with on/off lever ensures positive magnetic traction
Maintenance free 4-wheel drive with worm gear reduction
Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16-22mm (5/8"-7/8")
Precise torch adjustment with screw drive cross slide
Multifunctional LED display - presetting of travel speed, metric &; imperial units, error codes information
Closed loop speed control system stabilises travel speed to reduce weld defects and costly rework
Consistent heat input reduces distortion
Automatic ARC ON/OFF system initiates welding with travel, simultaneously
Self-guiding roller arms eliminate the need for track
Improves working environment - removes operator from heat and fumes
Package Includes
Welding carriage
Power lead
Arc ignition cable
Torch holder
4mm Allen key
Operator’s manual
SPECIFICATIONS
Power supply: 115-230VAC / 50-60Hz
Welding positions: Vertical / Horizontal
Chassis to material clearance: 4mm
Travel mechanism: Friction Drive With Worm Gear Reduction, 4 Wheel Drive, Heat Resistant Silicone Wheels
Tracking method: 2-Guide Rollers
Torch adjustment: Up-Down 35mm, Left-Right 35mm
Gear roller adjustment: 100mm
Horizontal speed: 0-2200mm/min
Vertical speed: 5-2000mm/min
Dimensions: 240mm (L) x 258mm (W) x 253mm (H)
Weight: 8kg
