Kat Track is manufactured in "Standard" and "Deep" sections...each designed to suit a specific range of applications. Both are made to the highest quality levels and incorporate the following top performance features:
Precision Extruded Aluminum Track - made from aluminum that is solution heat treated and artificially aged to produce an alloy having excellent mechanical and corrosion resistant properties. The track is light but strong and the standard section can be readily formed to suit the work contour.
Supporting Steel Rack - is securely fixed to the Kat track to provide a smooth, positive drive. The long-life rack easily supports the Kat carriage under maximum load when used in a vertical plane.
Interchangeable End Design - enables any two lengths of track to mate accurately and, because of symmetry of design, track lengths can be turned end to end. It is even possible to mate standard and deep track sections.
Fast, Easy Joining - with combined dovetail and taper screwthat provides accurate location between mating track lengths. The track can be joined in the time it takes to tighten two knurled thumb screws.
Versatile Mounting - Both standard and deep section tracks have fixing holes on 6" (152.4 mm) pitch along their entire length to provide ample means for mounting or securing brackets.
Also Available...Custom Formed Ridig Track
Gullco provides complete Kat Track forming services to customer specifications. Contact Gullco for detailed information.

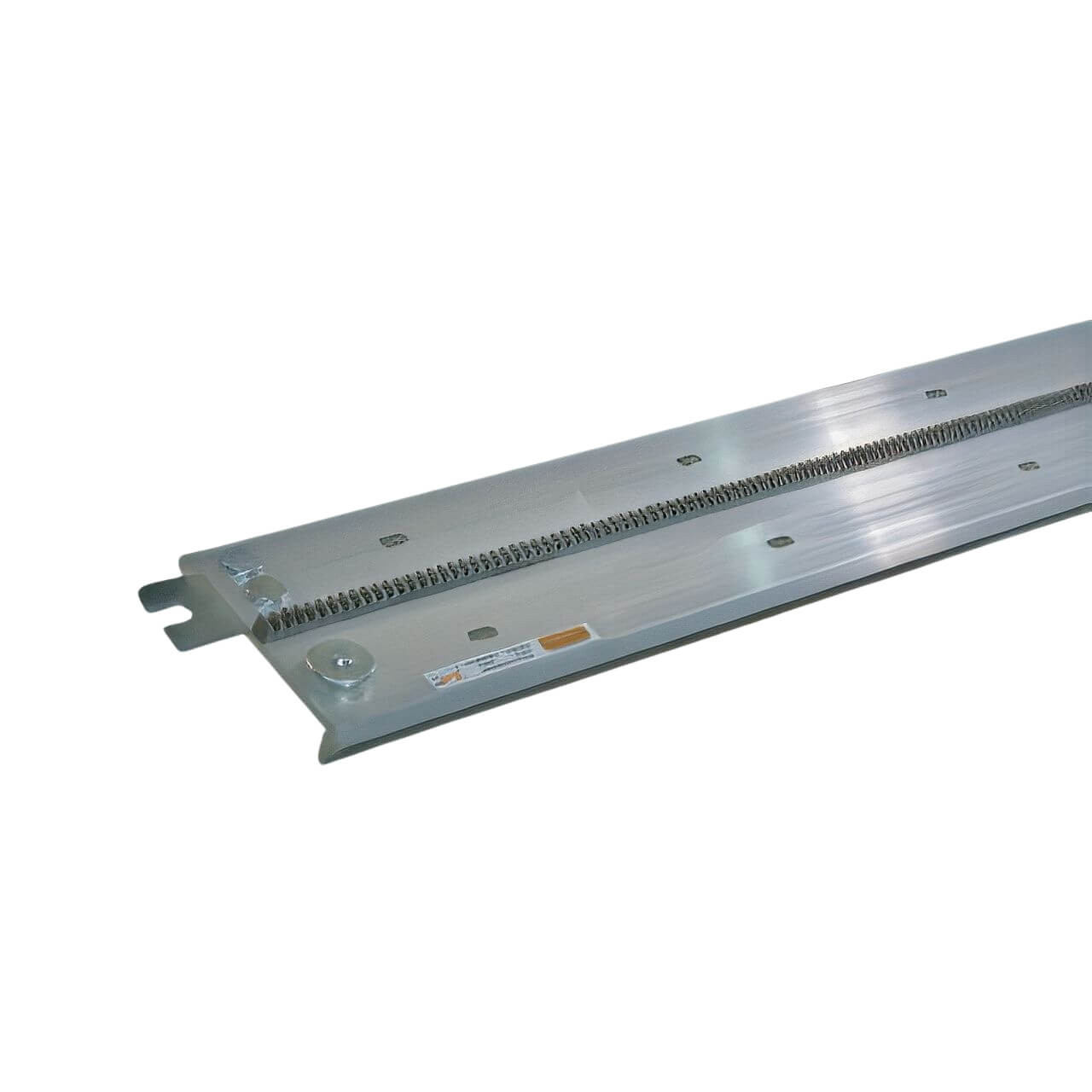

For use with the Gullco Kat P-Type Travel Carriage Model GK-191 in most portable applications. Standard track sections are supplied in 48, 96 and 120 inch(1219, 2438 and 3048 mm) lengths complete with rack and interlocking ends. Standard track can be hard anodized and also formed to desired contours by Gullco or the customer.
Precision Extruded Aluminum Track - made from aluminum that is solution heat treated and artificially aged to produce an alloy having excellent mechanical and corrosion resistant properties. The track is light but strong and the standard section can be readily formed to suit the work contour.
Supporting Steel Rack - is securely fixed to the Kat track to provide a smooth, positive drive. The long-life rack easily supports the Kat carriage under maximum load when used in a vertical plane.
Interchangeable End Design - enables any two lengths of track to mate accurately and, because of symmetry of design, track lengths can be turned end to end. It is even possible to mate standard and deep track sections.
Fast, Easy Joining - with combined dovetail and taper screwthat provides accurate location between mating track lengths. The track can be joined in the time it takes to tighten two knurled thumb screws.
Versatile Mounting - Both standard and deep section tracks have fixing holes on 6" (152.4 mm) pitch along their entire length to provide ample means for mounting or securing brackets.
Also Available...Custom Formed Ridig Track
Gullco provides complete Kat Track forming services to customer specifications. Contact Gullco for detailed information.
For use with the Gullco Kat P-Type Travel Carriage Model GK-191 in most portable applications. Standard track sections are supplied in 48, 96 and 120 inch(1219, 2438 and 3048 mm) lengths complete with rack and interlocking ends. Standard track can be hard anodized and also formed to desired contours by Gullco or the customer.
