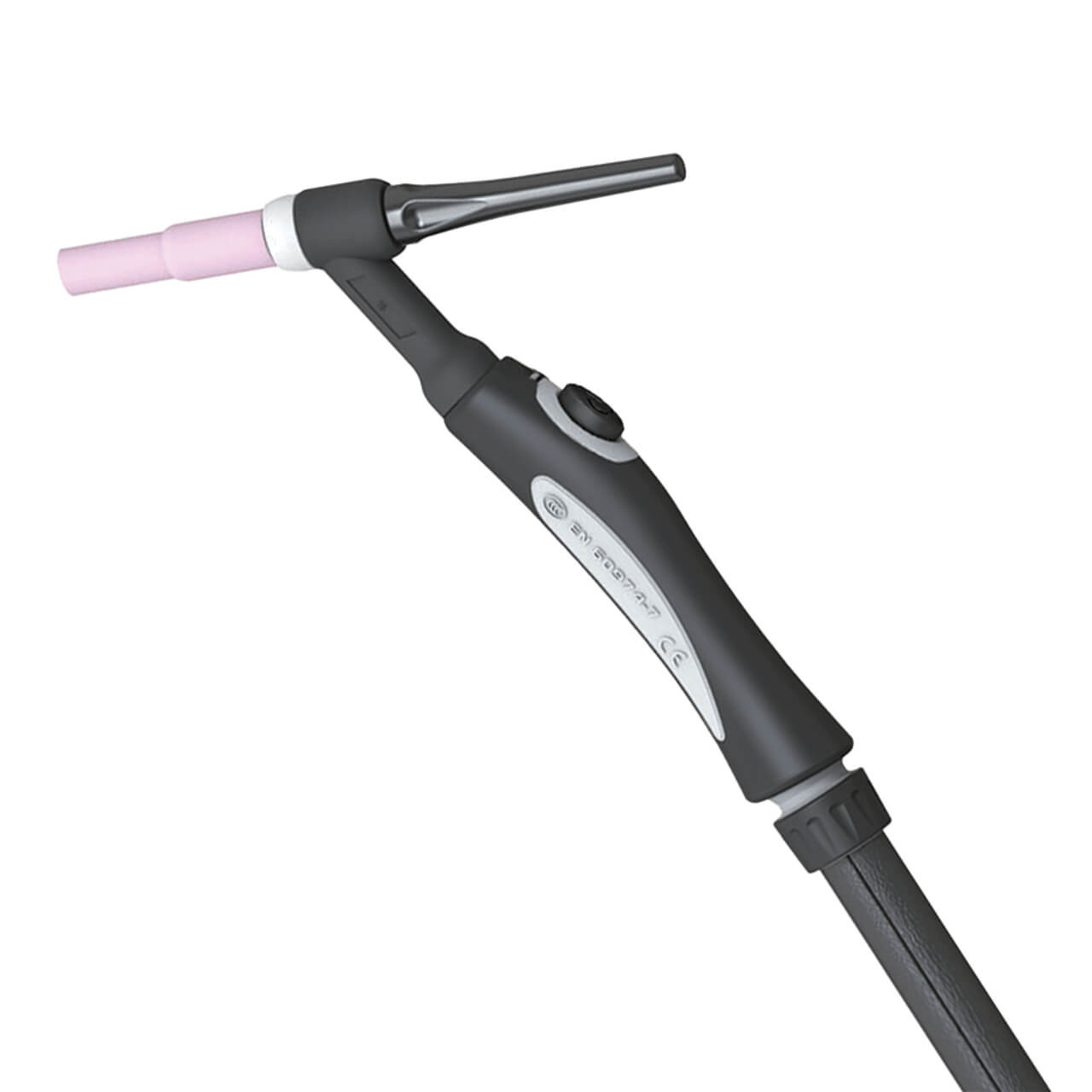

The SR18 Water-Cooled TIG Torch has been engineered for maximum performance during AC and DC High Frequency TIG welding. The ergonomically designed lightweight handle includes soft grips, knuckle joints and a screwless, interchangeable switch. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 380A MAXIMUM OUTPUT.
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE.
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Water Cooled
- DUTY CYCLE - DC: 100% @ 380A
- DUTY CYCLE - AC: 100% @ 270A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
- MINIMUM WATER FLOW: 1.0L/min
- MINIMUM WATER INLET PRESSURE: 2.0 Bar
- MAXIMUM WATER INLET PRESSURE: 5.0 Bar
- MAXIMUM WATERINLET TEMPERATURE; 50°C
- MINIMUM COOLING POWER: 900W
FEATURES:
- 1.0-4.0mm ELECTRODE SIZE COMPATIBILITY.
- 380A MAXIMUM OUTPUT.
- ERGONOMIC HANDLE FOR COMFORT DURING EXTENDED USAGE.
- FLEX-HEAD COMPATIBLE FOR MULTI-POSITIONAL WELDING
SPECIFICATIONS:
- COOLING METHOD: Water Cooled
- DUTY CYCLE - DC: 100% @ 380A
- DUTY CYCLE - AC: 100% @ 270A
- LENGTHS (m): 4/8
- DINSE SIZE: 35/50
- ELECTRODE SIZE: 1.0-4.0mm
- STANDARD: EN60974-7
- MINIMUM WATER FLOW: 1.0L/min
- MINIMUM WATER INLET PRESSURE: 2.0 Bar
- MAXIMUM WATER INLET PRESSURE: 5.0 Bar
- MAXIMUM WATERINLET TEMPERATURE; 50°C
- MINIMUM COOLING POWER: 900W
| Weight (Kgs): | 2.9 |
