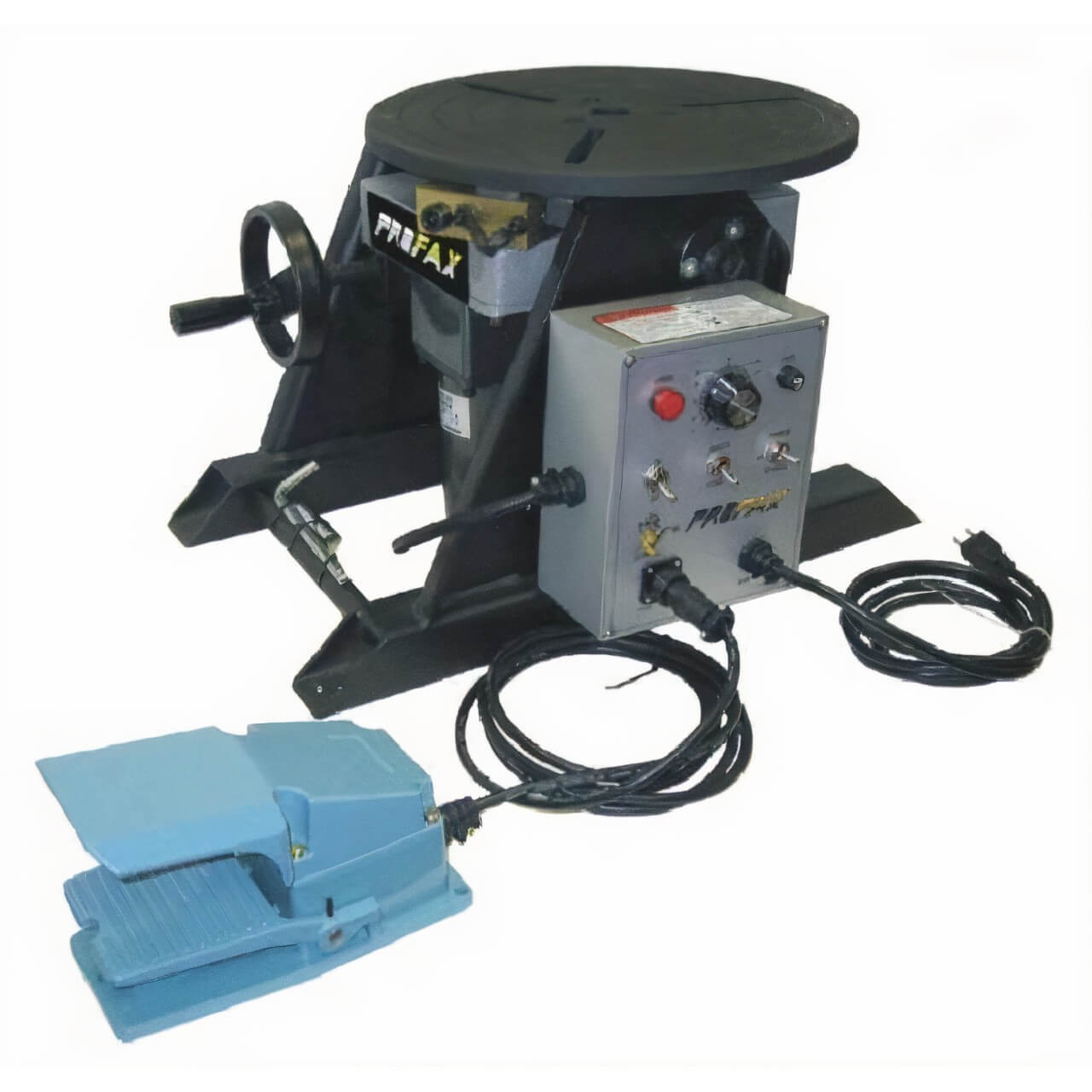

Designed for rotation of lighter pieces.
Will hold 200 kgs in the horizontal position and 113 kgs in the vertical position
Note: C/G of load not to be more than 100mm from the centre of the turntable and 100mm from the face of the turntable
Features
• 340 mm Diameter Table
• 0 to 50 rpm Rotation Speed
• Manual Tilt Adjustment
• 240 Volt
• 0 -90? Tilting Angle
• High Frequency Protected
• Standard with Foot Control
Technical Specifications
Capacity Vertical: 113 kg
Capacity Horizontal: 199 kg
Load Center of Gravity: 101 mm
Tilt: Manual
Tilt Angle (Degrees): 0 - 90
Tilt Angle Indicator: N/A
Ground Capacity: 150 Amps
Grounding Device: Carbon
High Freq. Protection: Yes
Volt/Ac: 115 or 230
Power Req. 115V: 5 Amp
Table Thickness: 14 mm
Table Diameter: 349 mm
Table Configuration: 3 - Slot
Optional Chucks: WPC-6 & 11
Optional Grippers: -
Table Height (Horizontal): 335 mm
Table Center Height (Vertical): 255 mm
Through Hole: 28 mm
Table R.P.M: 0 - 5.5
Rotation Motor H.P: 1/8 H.P.
Variable Speed Rotation: Yes
Foot Control: Single
Hand Pendant: Optional
Anchor Points: 4
Levelling Bolts: N/A
Unit Width: 317 mm
Unit Length: 533 mm
Shipping Weight (Approx.): 51 kgs
