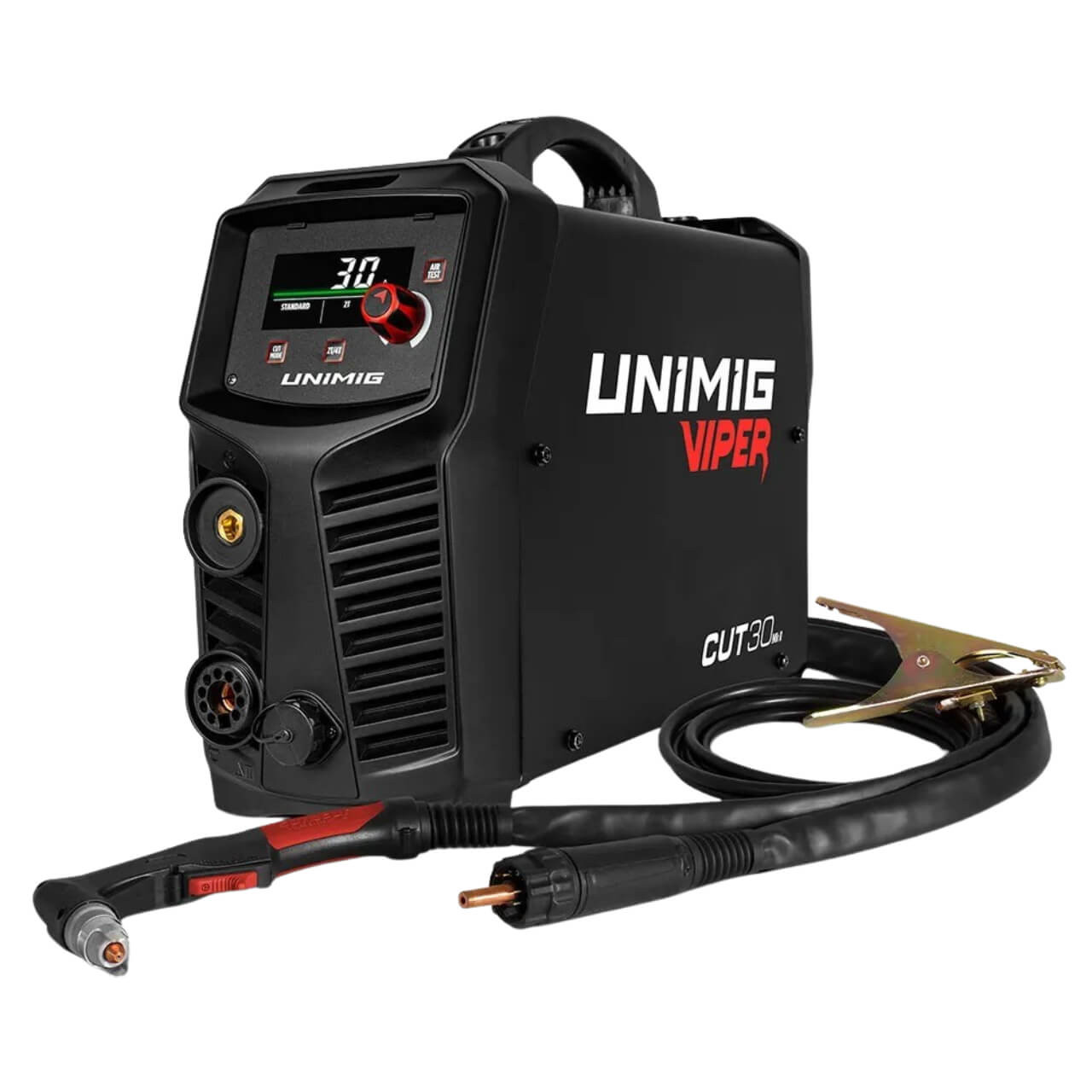

Cut anything, anywhere. Whether it’s a solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the Viper Cut 30 Mk II can handle anything you throw at it.
FEATURES:

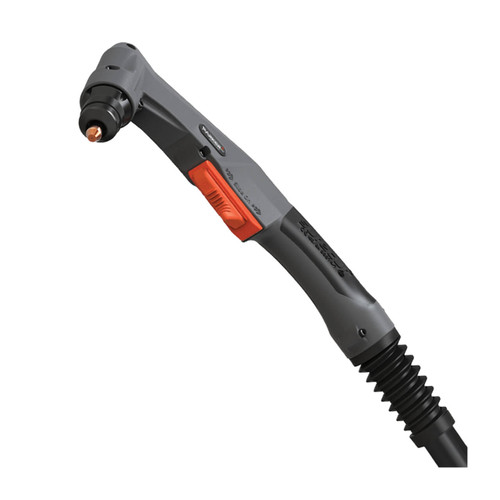

- CNC Compatible: The VIPER CUT 30 Mk II comes with a CNC connection, so you can plug in a CNC torch and use it with a CNC table.
- MAXIMUM POWER: The VIPER CUT 30 Mk II is one of the most powerful cutters for its size. Running at just 30A, this machine still has the capability to produce a 12mm clean cut and a 14mm severance.
- CUT ANYTHING: Get unrivalled performance across every kind of metal. Whether you’re working on solid mild steel or trying out the new perforated cutting mode on materials like mesh and grating, the VIPER CUT 30 Mk II can do it all.
- 10 AMP PLUG: Take this machine with you wherever you go. With a 10AMP power plug, you can plug and go with any domestic outlet. Its versatility makes it perfect for at-home use and on job sites.
- PILOT ARC START: Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
SPECIFICATIONS:
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 10A
- Rated Input Power (kVA): 7.5
- Rated Output Voltage (V): 92
- Ieff (A): 10
- Air Flow Draw Off (L/min): 170
- Air Flow Pressure (Bar): 5-6 (70-87 psi)
- Protection Class: IP21S
- Insulation Class: F
- Minimum Generator (kVA): 8
- Dinse Connector: 45931
- Standard: AS/NZ60974-1
- Plasma Cut Current Range: 20-30A
- Plasma Cut Duty Cycle @ 40°C : 15% @ 30A, 60% @ 23A, 100% @ 20A
- Mild Steel Cut Thickness: 12mm
- Mild Steel Severance Thickness: 14mm
- Aluminium Cut Thickness: 6mm
- Aluminium Severance Thickness: 8mm
- Stainless Steel Cut Thickness: 6mm
- Stainless Steel Severance Thickness: 8mm
- Plasma Arc Start: Pilot Arc
- Thermal Overload Protection: Over Temperature Warning
