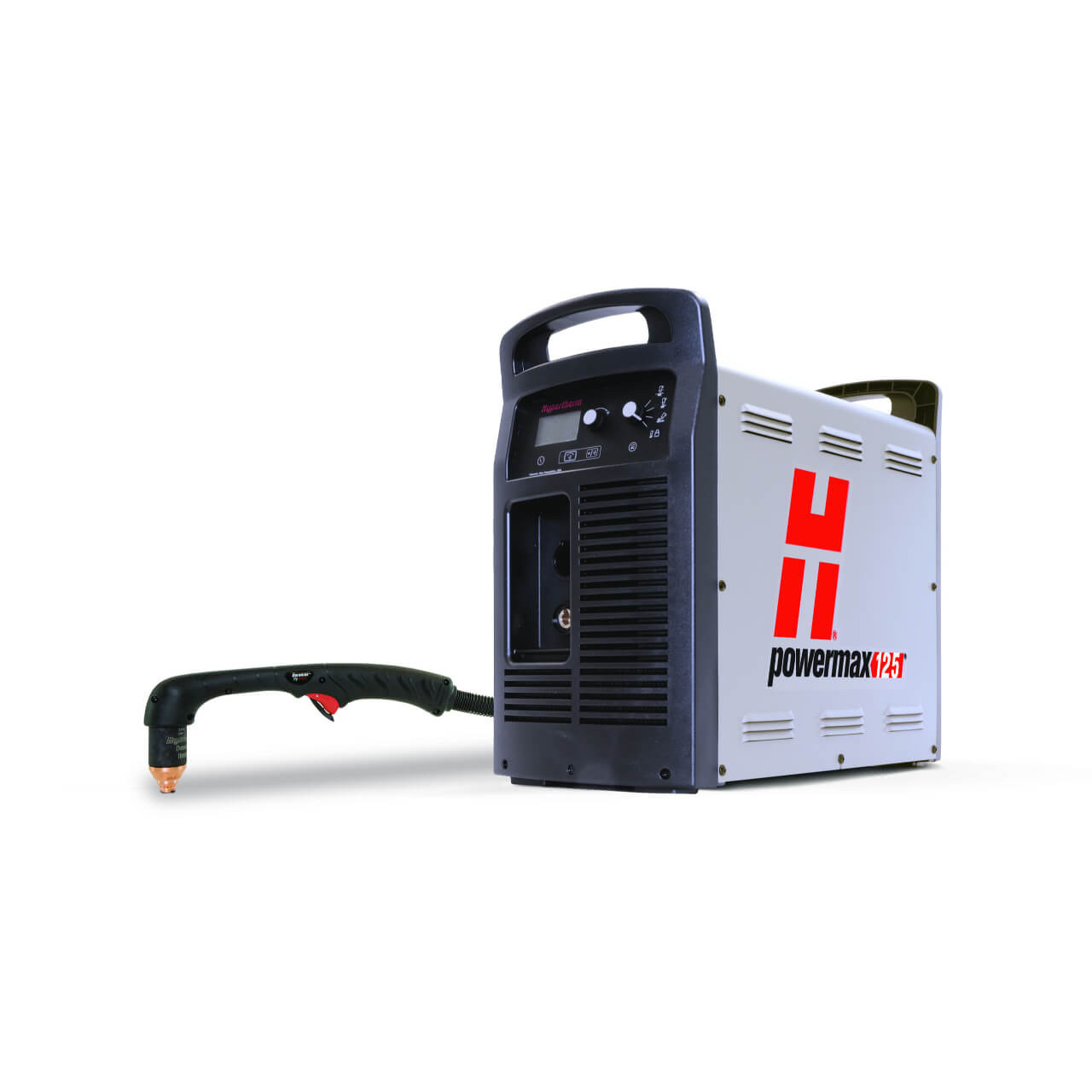

APPLICATIONS:
- Drag cutting: For dragging the torch directly across the work piece
- Fine feature cutting: For narrow kerf width with minimal dross and heat affected zone
- Flush cutting: For cutting closer to base materials using a 45 degree
- Max control gouging: For precise metal removal, shallower gouge profiles and light metal washing
- Max removal gouging: For aggressive metal removal, deep gouge profiles, and extreme metal washing
- Mechanized cutting: For portable automation and table cutting
BENEFITS:
Maximum productivity:
- Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2”) mild steel
- Superior cut and gouge quality let you spend less time on grinding and edge preparation
- 100% duty cycle maximizes your cutting time
- Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging:
- No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
- SpringStart™ technology ensures consistent starting and a more reliable torch
- Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Lower operating costs:
- Consumable life up to four times longer than other systems in this amperage range
- Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused
Built to handle tough jobs:
- Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
- Duramax Hyamp torches are designed for high-impact and heat resistance
SPECIFICATIONS:
Input voltages:
- CSA 480/600 V, 3-PH, 50/60 Hz
- CE 400 V, 3-PH, 50/60 Hz
- CCC 380 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW:
- 300/400/480/600 V, 38/36/31/24 A
Output current:
- 30–125 A
Rated output voltage:
- 175 VDC
Duty cycle @ 40° C (104° F):
- 100% @ 125 A
Open circuit voltage (OCV):
- 400/600 CSA: 320 VDC
- 380 V CCC: 290 VDC
- 400 V CE: 305 VDC
Dimensions with handles:
- 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight with 7.6 m (25?) torch:
- 480 V, 47,9 kg(105.7 lbs.)
- 600 V, 47,5 kg (104.7 lbs.)
- 380 V, 45,2 kg (99.6 lbs.)
- 400 V, 48,9 kg (107.8 lbs.)
Gas supply:
- Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure:
- Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
- Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)
Input power cable length:
- 3 m (10?)*
Power supply type:
- Inverter – IGBT
Engine drive requirement:
- 40 kW for full 125 A output
Certifications:
- CSA-certified for use in the Americas and Asia, except China.
- CE, C-Tick, CU/GOST, Ukr, and Serbian – for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
- CCC for use in China.
Warranty:
- Power supplies have a 3-year warranty and torches a 1-year warranty.
*No power cord on some CCC models.
Engine-driven generator operation:
Engine drive ratingSystem - output current - Performance (arc stretch)
- 40 kW - 125 A - Full
- 30 kW - 125 A - Limited
- 30 kW - 100 A - Full
- 25 kW - 100 A - Limited
- 22.5 kW - 75 A - Full
- 20 kW - 75 A - Limited
- 20 kW - 60 A - Full
- 15 kW - 60 A - Limited
- 12 kW - 40 A - Full
- 10 kW - 40 A - Limited
- 10 kW - 30 A - Full
- 8 kW - 30 A - Limited
Capacity Cutting:
Recommended:
- 38 mm (1-1/2?) - 457 mm/min (18 ipm)
- 44 mm (1-3/4?) - 250 mm/min (10 ipm)
Severance (hand cutting)
- 57 mm (2-1/4?)
- 125 mm/min (5 ipm)
Pierce *
- 25 mm (1?)
* Pierce rating for handheld use or with automatic torch height control
Capacity Gouging:
Typical gouge:
- 12,52 kg/hr - 4,3 mm - 7,9 mm D x 6,1 mm - 9,9 mm W
- (27.6 lbs./hr) - (0.17-0.31? D x 0.24-0.39? W)
