FEATURES:
- Up to 98% capture rate leaves shielding gas unaffected
- 100% duty cycle
- 250 amp air-cooled on-gun fume extraction system

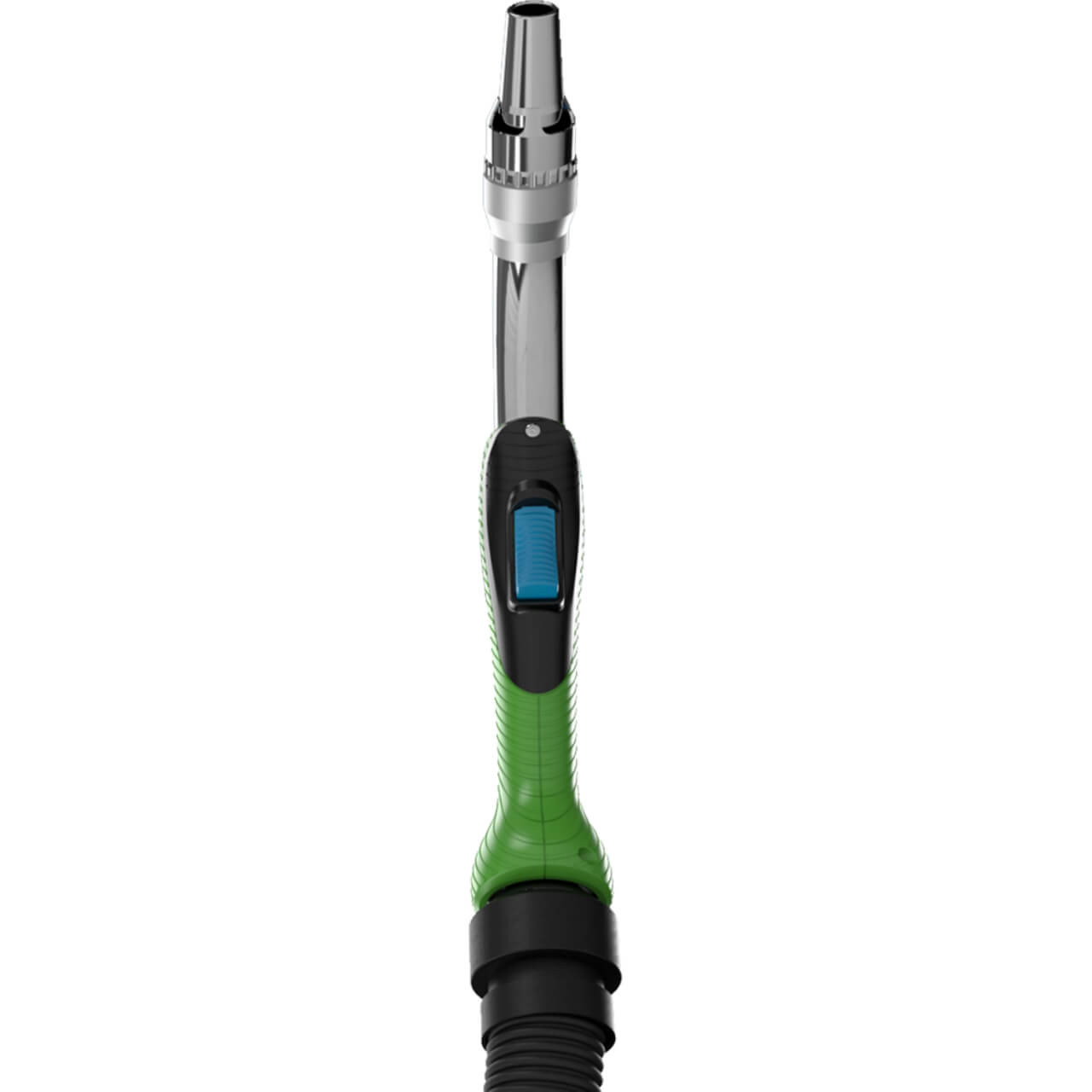

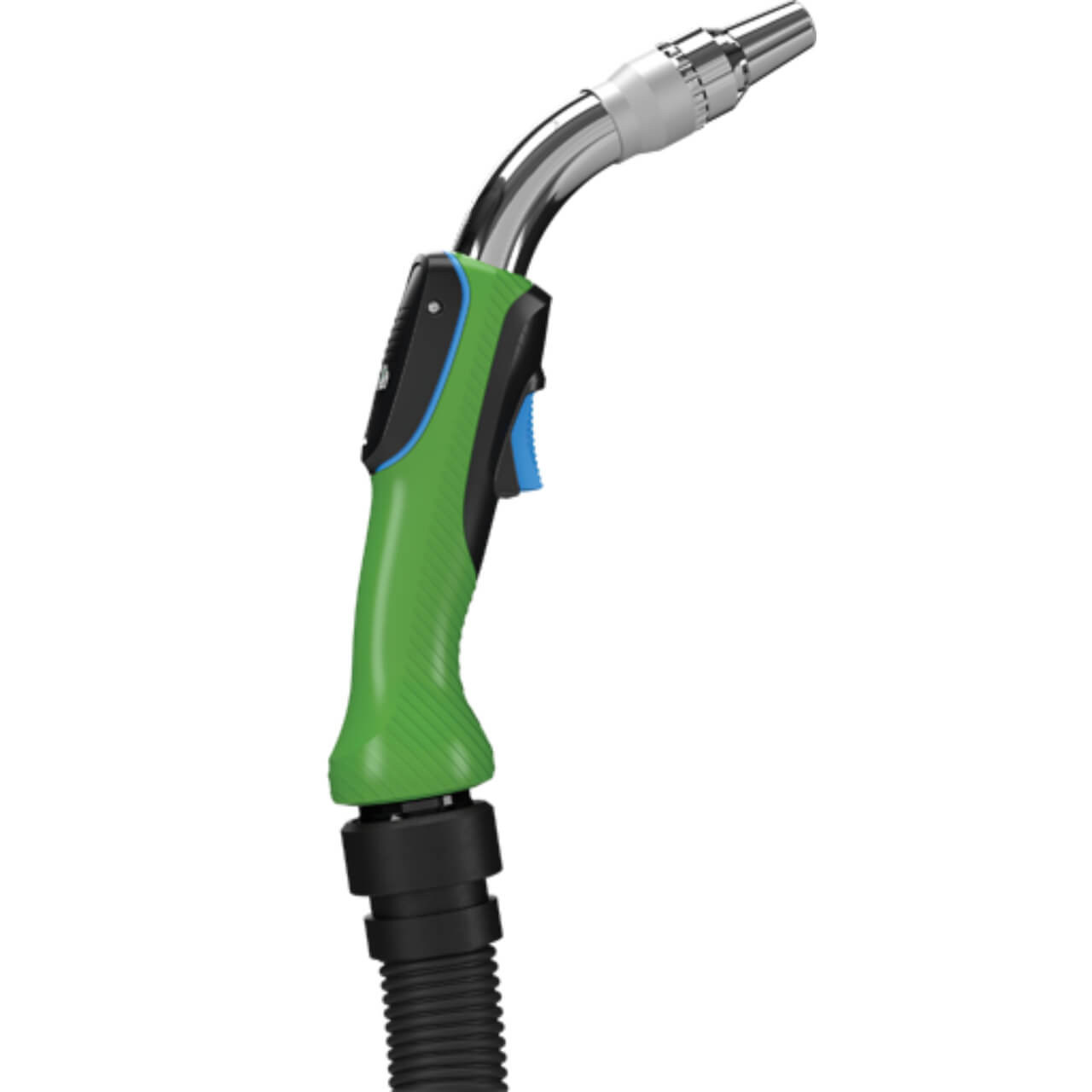

- Ergonomic and super lightweight welding gun
- The extraction system self cleans with auto start and stop
- Kit includes everything you need to get started with on-gun extraction
SPECIFICATIONS:
- Recommended Amps: 250 Amps and below
- Air/Water Cooled: Air Cooled
- CO2: 280 Amp
- Mixed Gases: 250 Amp
- Duty Cycle: 100%
- Fume Capture Rate: Up to 98%
- Gun Rotation: 360° Swivel
- Automatic Start/Stop: Yes
- Auto Filter Cleaning: Yes
- Dimensions: (L x B x H) 700 x 440 x 585 / 630mm (without / with wheels)
- Implementation: Mobile on 4 wheels - 2 rotating with locks
- Power Supply: 380-480V (3 Phase)
- Motor Power: 1.5 KW
- Suction Flow (Torch): Target: 33 CFM / Max: 38 CFM
- Filter Surface: 5m² Active filter surface, filter efficiency: IFA>;99.8%
- Working Temperature: 0 to +50°C
- Noise Level: Max. dB(A) <;65dB(A) (at 100% suction flow)
- Certifications: CE (European), W3 (Germany), and CSA (North America
- Compressed Air (Cleaning): 80 PSI (5.5 Bar), Dry/Clean Air, 20 CFM, Standard Size Airline
