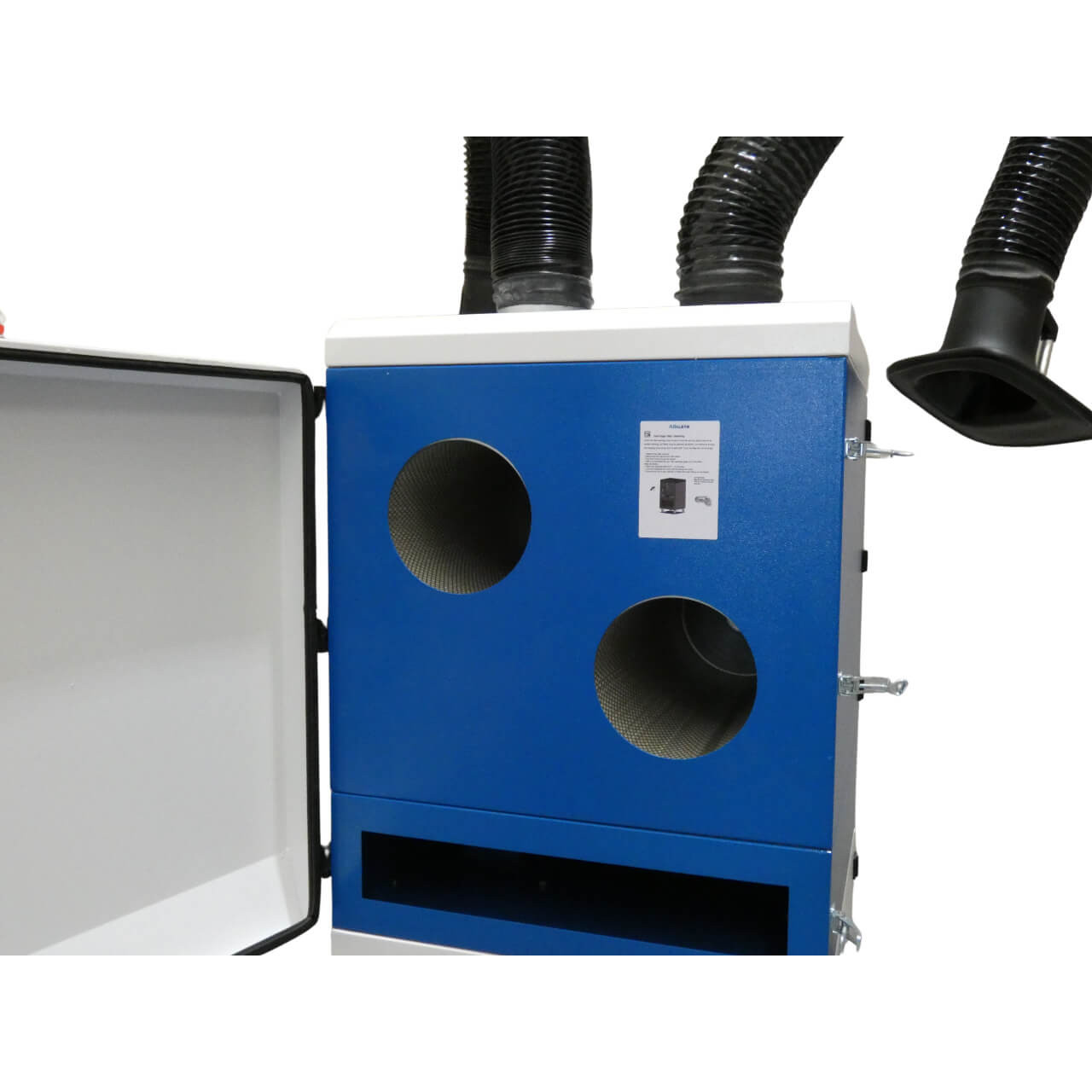

The Allclear MA350 is a durable mobile welding and grinding fume extraction unit equipped with 2 x 3-metre arms. The Allclear MA350 has cleanable cartridge filters, a working hour counter, a filter fullness indicator, a malfunction warning and a special dust collection bin. Mounted on caster wheels for greater mobility, the Allclear MA350 has an impact plate above the filter to reduce the risk of burnout and increase the life of the filters.
FEATURES:
- Compact design makes the unit take up little space in the work area and can be moved very easily.
- Ergonomic design gives the user access to all functions without problems.
- The special equipment used in the joints of the acrobat arm with an internal mechanism prevents metal fatigue and protects the integrity of the arm.
- Hose Type arm is resistant to serious conditions and high temperatures.

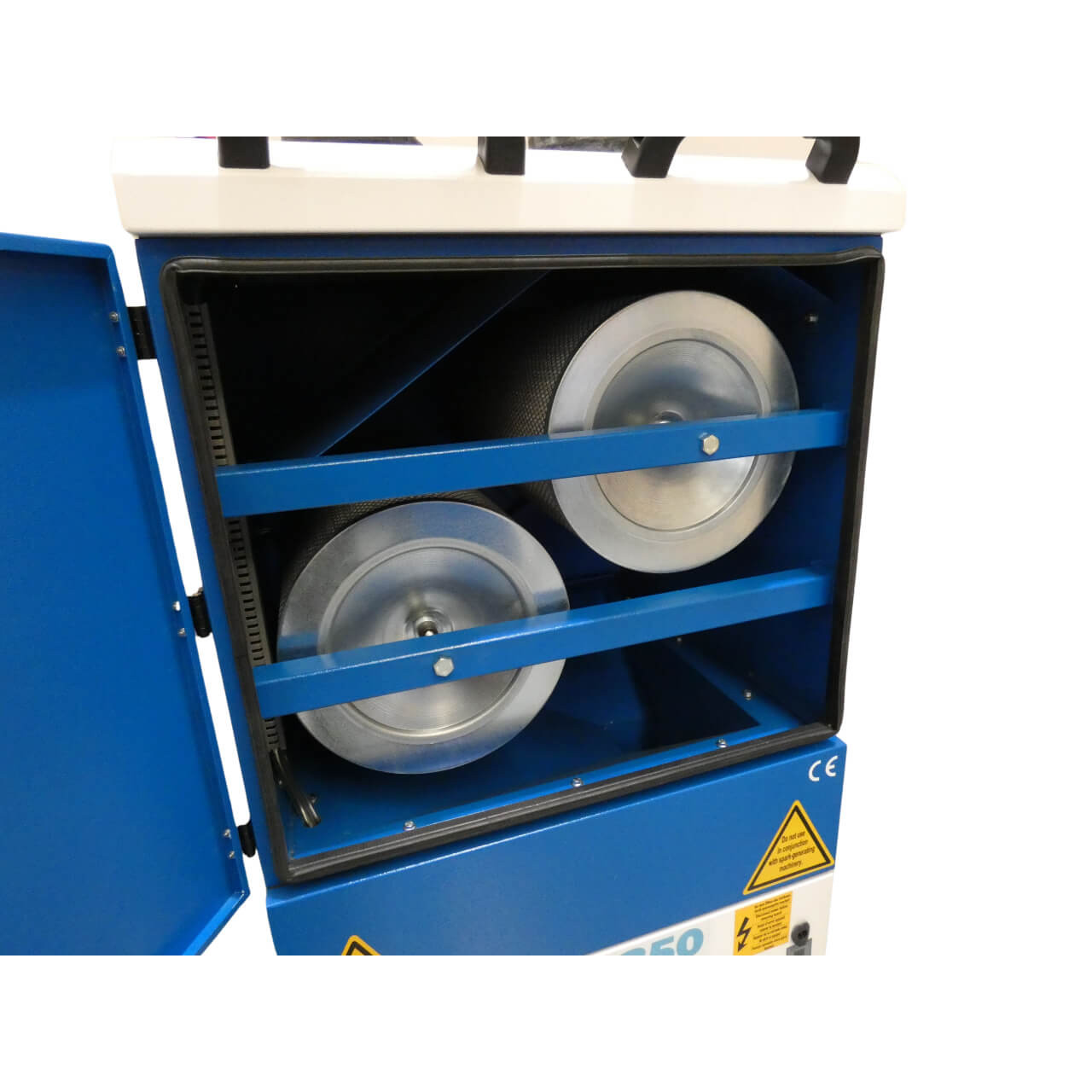

- The filter cleaning door allows easy and safe access to the cartridge filter. The Compressed air gun also provides quick and easy cleaning.
- Cartridge filter, 29m² surface, nanofiber structure provides very high filtration efficiency and extended lifetime.
- Suction hood catches the particles easily with its large structure which is Lightweight and durable.
- The unique patented dust collection system drawer, lengthens the cartridge filter life, providing safer dust removal of dust which can be discharged even when the machine is running.
SPECIFICATIONS:
- Filters:
- F9 Cartridge Filter: 91990116
- Hepa H13 Cartridge Filter: 91990118
- Carbon Filter: 91990122
- Motor size: 2.2kw
- Suction performance: min.1100, max. 1600 m³/hour per arm (total min 1100, max 3200 m³/hour)
- Filter: 2 x Cartridge nanofiber with 29m²
- Voltage: 415v
- Arm/s: 2 x Hose type, internal support, 3m long
- Weight: 137kg
- Dimensions (WxHxL) mm: 700 x 780 x 1310
- Mains supply: 415v
- Maximum airflow: 3500m3 per hour
- AirFlow at Suction Point: 1270m3 per hour
- Area of Filter Cartridge: 2 x Cartridge 2 x 14m2
- Filter Cleaning: Manual
- Standard Arm Length: 2 x 3m long
- Body: Galvanised Steel
- Fan: Aluminium
- Noise: 72 dba
- Sound Insulation: Acoustic Sponge
