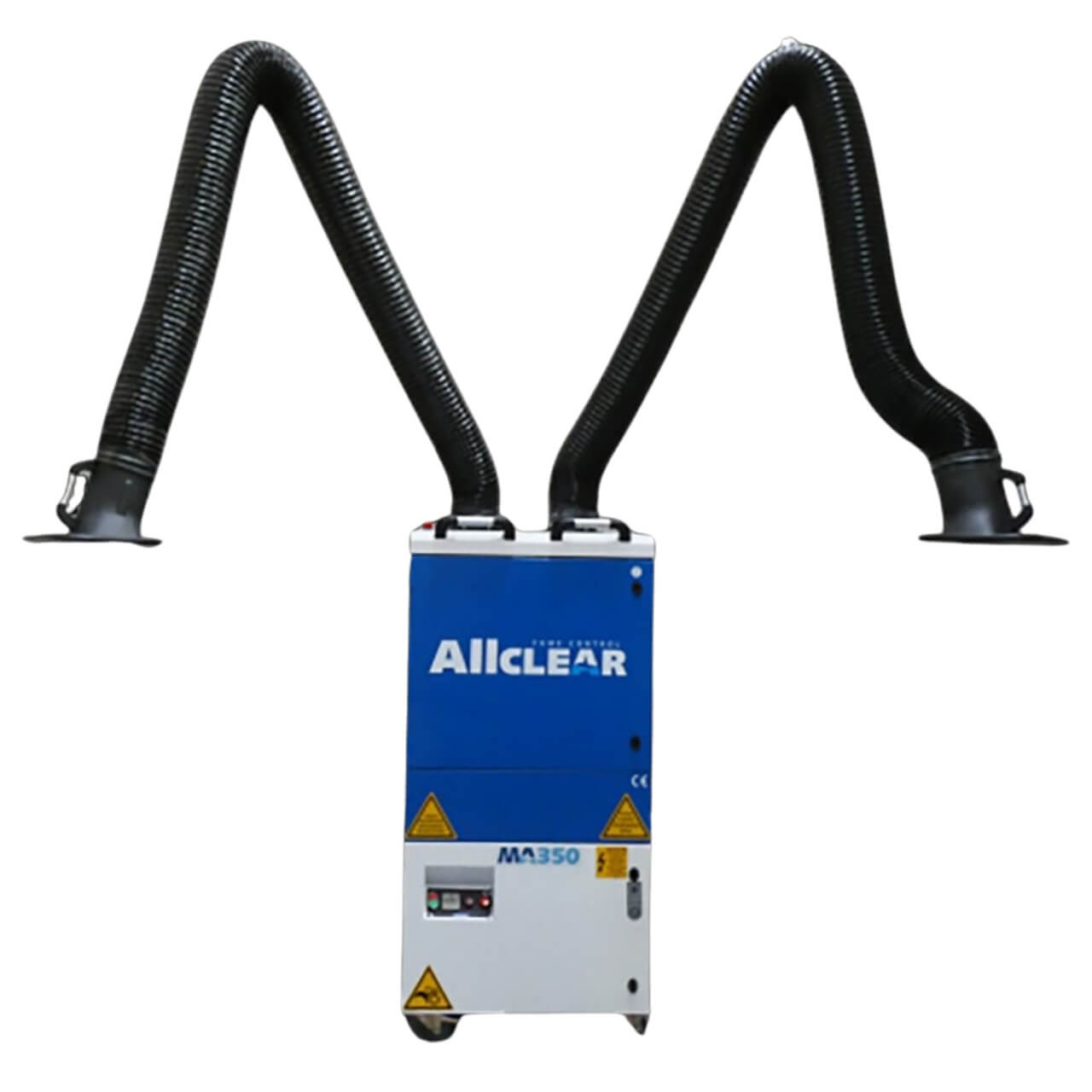

The ALLCLEAR MA350 AUTO is a 415V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. Equipped with twin 3-metre arms, cleanable cartridge filters, working hour counter, filter fullness indicator, malfunction warning, special dust collection bin, and an impact plate above the filter to reduce the risk of burnout and increase the life of the filters. Operates off 3-phase 415V power supply.
FEATURES:
- Cleanable cartridge filter for extended filter life
- Automatic filter cleaning saves operator down-time (start cleaning cycle at end of shift & walk away)
- Large 28m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- Pre-seperator “impact plate” shields filters from coarse particles & sparks, reducing the risk of burnout and increasing filter life
- Unique drawer/bin allows safe removal of dust(ejected from filter cleaning) &; can be used even when machine is running
- High extraction performance
- Compact and mobile
- Ergonomic design with easy access to all functions &; replacement filters
- Patented dust collection system
- Arcrobat arm joints use special materials &; design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatues
- Lightweight and durable suction hood catches particles with a large inlet
SPECIFICATIONS:
- Power supply: 3-phase 415V
- Dimensions (mm): L720 x W785 x H1480
- Weight: 137kg
- Motor size: 2.2kw
- Air flow at suction point: Min 1100m³, Max 1,600m³ / hour Per Arm (total Max 3200m³ / hour)
- Filter surface area: 14m²
- Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
Minimum Sale Qty: | 1 |
In Stock: | No |
